ANSI B16.47 Forged Flange

This is a forged flange manufactured to meet ANSI B16.47 standards. It is designed for use in piping systems to connect pipes, valves, pumps, and other equipment.

Request a Quote Download PDFPDF

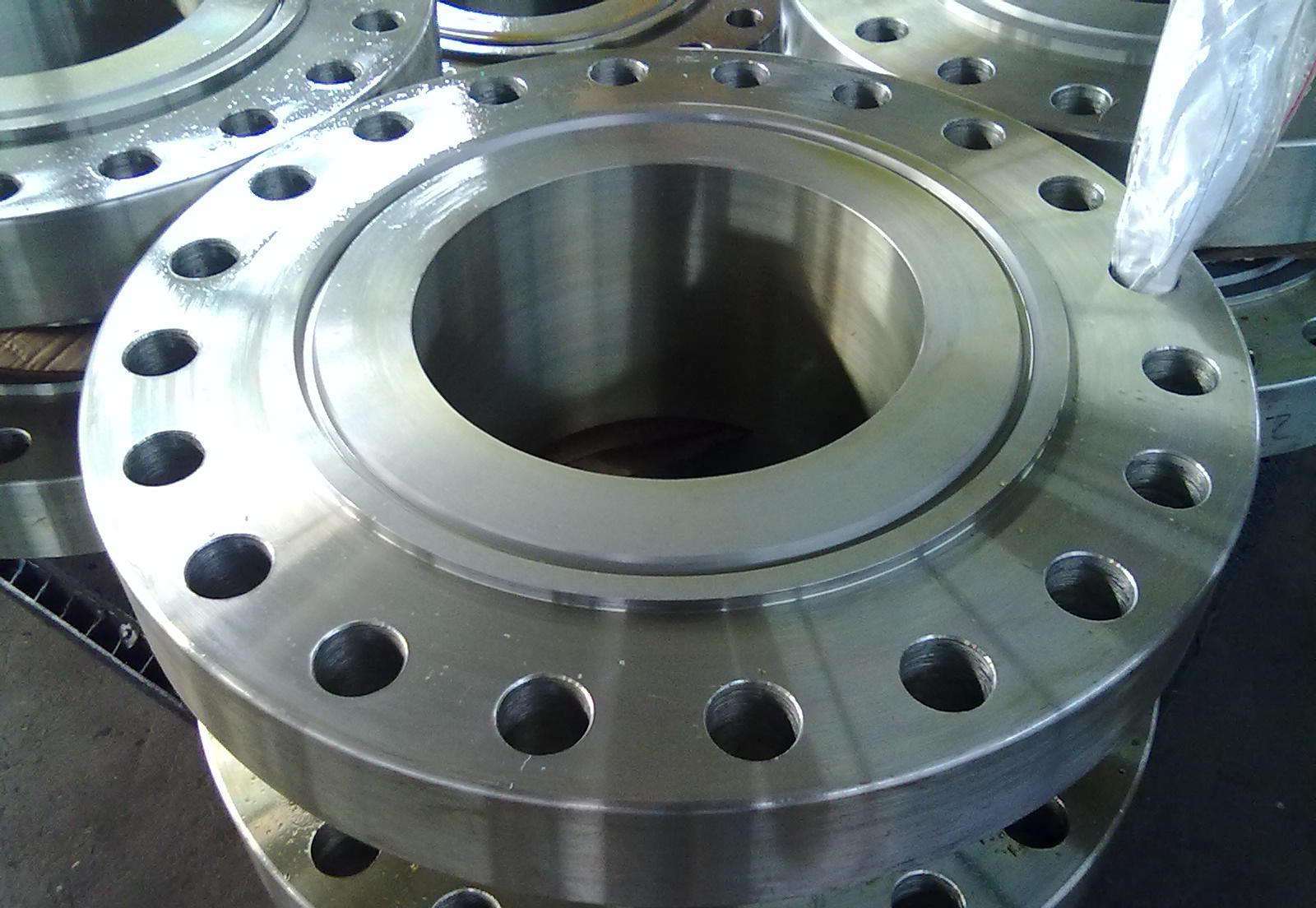

ANSI B16.47 standard size of forged flange - Image 1

Technical Specifications

Product Overview

ANSI B16.47 Forged Flange

This forged flange is engineered to comply with ANSI B16.47 standards, ensuring reliability and compatibility in demanding piping systems. Designed for high-pressure and high-temperature environments, it provides a robust, leak-proof connection for pipes, valves, and pumps. With extensive customization capabilities for large-scale industrial applications, this component is built for durability and precision.

Technical Specifications

Outer Diameter Range: 9000 mm
Maximum Weight: 40 tons
Maximum Thickness: 800 mm
Maximum Height: 1500 mm

Key Features

Design Highlights

ANSI B16.47 Standard Compliance
Raised face for secure gasket sealing
Precision machined surface finish
Large-scale forged construction

Suitable Applications: High-Pressure SystemsHigh-Temperature EnvironmentsPiping InfrastructureIndustrial ValvesPumps

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Related Products

More products from the Pipe Fittings category

90 Degree Elbow Pipe Fitting, STPG370, SCH 40, Short Radius, Butt Weld End

This elbow fitting is constructed from STPG370 steel material and conforms to schedule 40 (SCH.40) thickness standards. It is designed with a 90-degree angle, short radius (SR), and butt-weld (BW) end connections for industrial piping systems.

View Details →

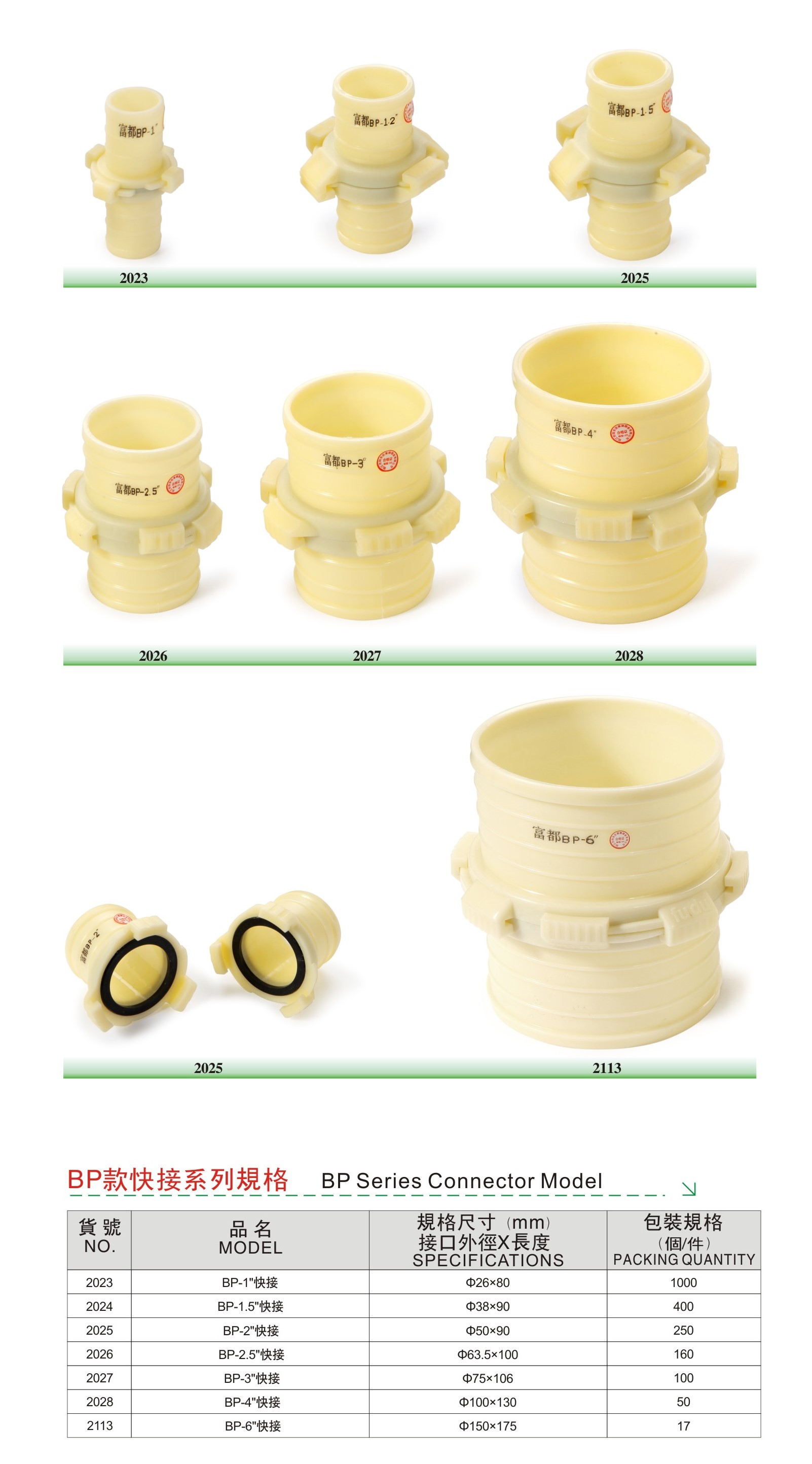

Quick Connect Pipe Fittings

These quick connect fittings facilitate the rapid joining of pipes or tubes. They are available in sizes ranging from 1 inch to 8 inches and are suitable for various industrial and commercial applications.

View Details →

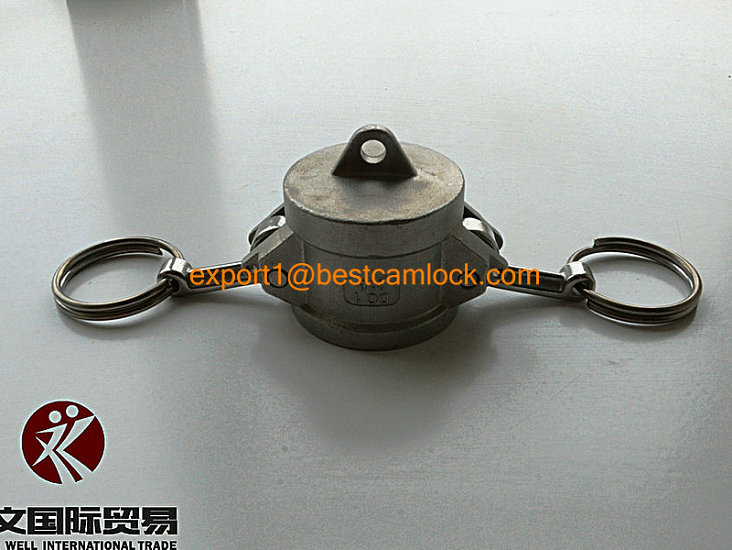

Female Cam Lock Coupling - Stainless Steel Type DC

This stainless steel camlock fitting can be used with salt water, water waste, many chemicals, hydraulic oil, and coolants. The quick coupling features excellent corrosion resistance, high temperature capability, and a long life expectancy.

View Details →

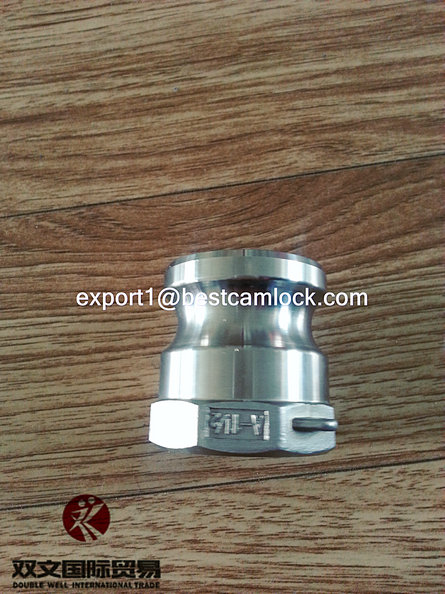

Stainless Steel Camlock Quick Coupling Female Adapter
