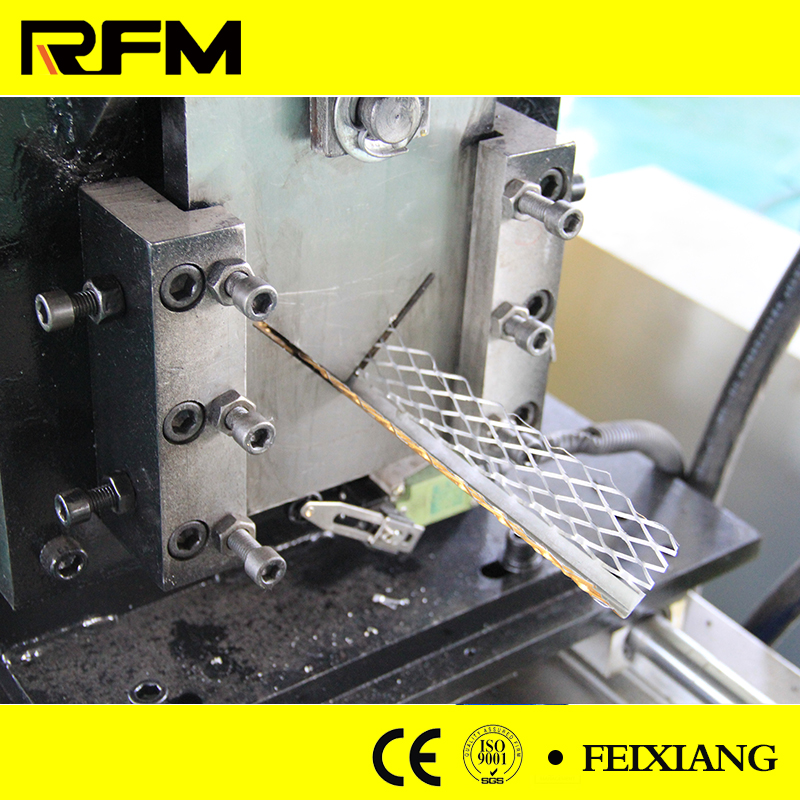

Angle Mesh Bead Roll Forming Machine
This machine is designed for manufacturing angle beads with mesh wings. It utilizes a roll forming process to shape the metal into the desired angle profile and simultaneously attach the mesh.
Technical Specifications
Overview
High-Efficiency Angle Mesh Bead Production
This specialized roll forming machine is engineered for the precise and efficient manufacture of angle mesh beads used in plastering and rendering applications. Featuring a robust design with high-strength steel components, it ensures consistent output through a multi-stage forming process. The system is fully automated, incorporating punching, forming, and cutting mechanisms to streamline production from raw material to finished product.
Technical Specifications
Machine Dimensions
12,000 mm
Length
800 mm
Width
1,300 mm
Height
Performance Metrics
6 m/min
Min Speed
10 m/min
Max Speed
4 T
Weight
Power Requirements
- Voltage: 380V 50Hz 3P
- Motor: 4 kW
- Pump: 3 kW
- Servo Motor: 1.5 kW
- Electric Support Wires: 6mm²
Material & Compatibility
Material Specifications
- Compatible Materials: Galvanized steel, Iron sheet
- Thickness Range: 0.25 - 1mm
- Yield Strength: Below 550MPa
Line Components
Production Line Components
| Component | Quantity |
|---|---|
| Decoiler | 1 set |
| Punching machine | 1 set |
| Main forming machine | 1 set |
| Control panel | 1 pc |
| Hydraulic pump | 1 pc |
| Cutting device | 1 pc |
| Manual holder | 1 pc |
Construction & Engineering
Construction Details
- Machine base: 350H steel plate welded
- Frame: 25mm column plate
- Forming stations: 7 steps
- Roller material: Cr12 with quenching
- Shaft material: 45# steel
- Punching machine capacity: 16T
Certifications
- Certifications
- CEISO 9001SGS
Service & Support
Service Terms
- Warranty: 2 years
- After-sales: 24/7 online support
- Delivery time: 45 days after deposit
- Labor requirement: 2-3 workers
