Anchor Handling Tug Supply Vessel with DP2

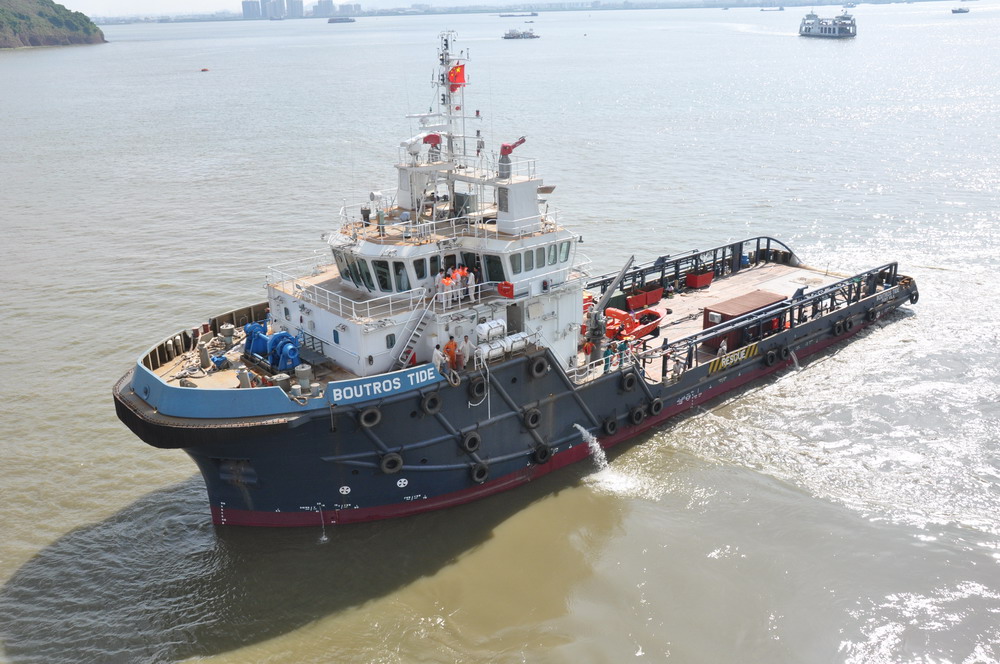

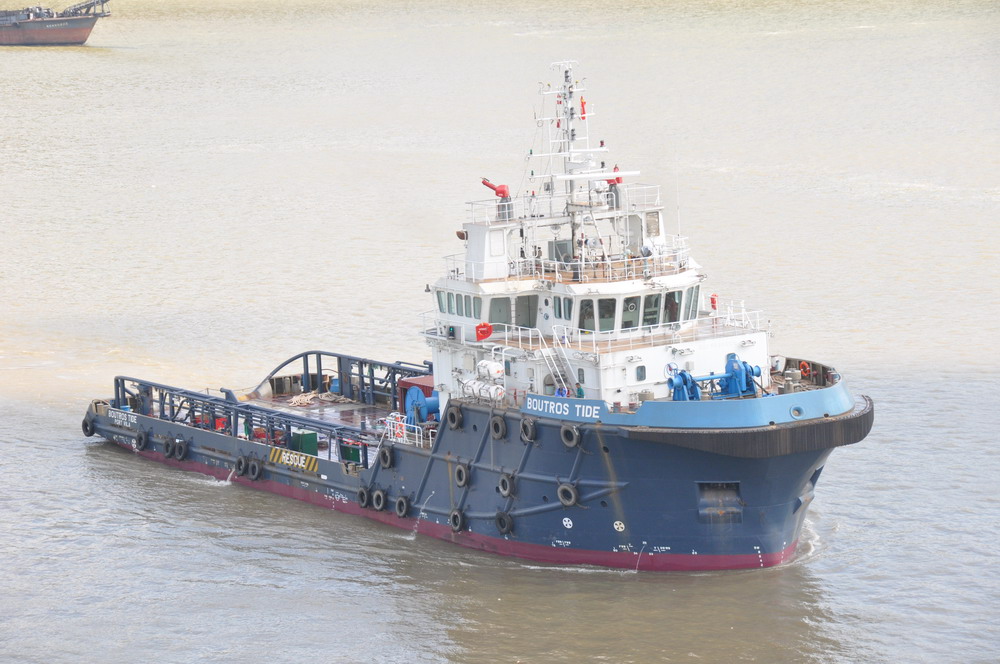

This anchor handling tug supply vessel has a length overall of 58.7m and is equipped with a DP2 dynamic positioning system. It is designed to support offshore operations with a spacious deck for cargo and specialized winches for anchor handling and towing.
Technical Specifications
Overview
High-Performance Offshore Support
This Anchor Handling Tug Supply Vessel (AHTS) is engineered for demanding offshore operations, featuring advanced DP2 dynamic positioning for superior maneuverability. With a robust bollard pull of 60 tonnes and powerful propulsion, it is built to handle complex towing and anchor handling tasks in harsh marine environments. The vessel combines efficient cargo capacity with essential firefighting capabilities, ensuring reliability and safety for oil and gas industry support.
Dimensions
Technical Dimensions
| Parameter | Value |
|---|---|
| Length Overall | 58.7 m |
| Length B.P. | 53.2 m |
| Breadth Moulded | 14.6 m |
| Depth Moulded | 5.5 m |
| Draft Moulded | 4.75 m |
Performance & Propulsion
Key Performance Metrics
13.5 Knots
Max Speed
60 Tonnes
Bollard Pull
- Propulsion System
- Controllable Pitch Propeller

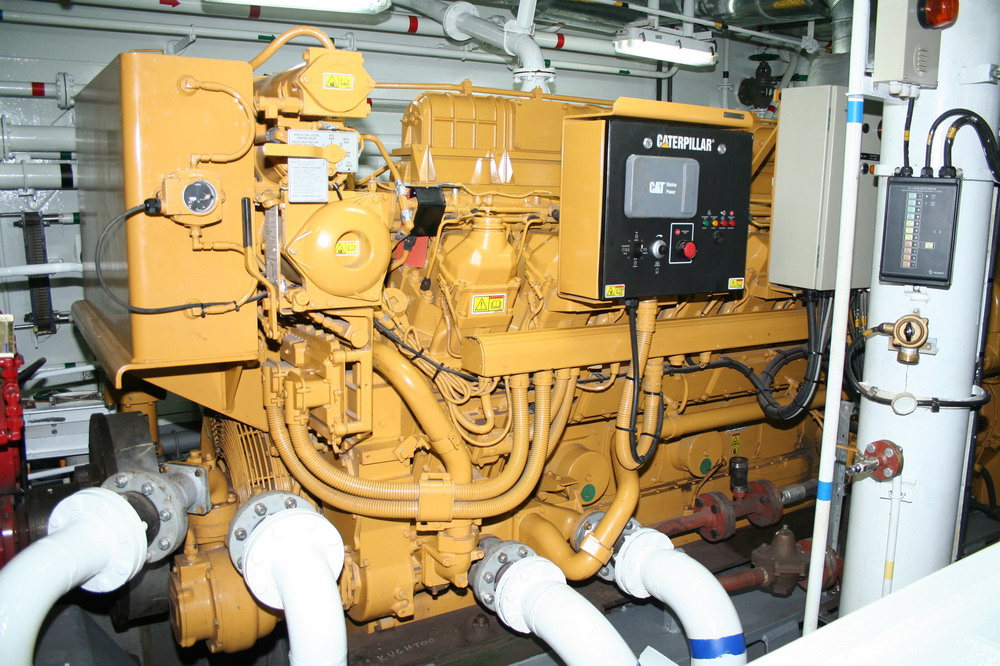

- Main Engine Power
- 2 x 2575 BHP
Capacities & Equipment
Tank Capacities
- Fuel Oil: 475 m3
- Fresh Water: 235 m3
Safety & Firefighting
Fi-Fi 1FFS EquipmentDP2 System
