Anchor Bracket for Electrical Power Systems
This anchor bracket is designed for securing wires and cables in electrical power transmission and distribution systems. It is constructed from corrosion-resistant aluminum alloy with high mechanical strength.
Technical Specifications
Product Overview
Reliable Anchoring for Power Systems
The JBEA-D and JBEB-D series anchor brackets are engineered for reliable use in electrical power transmission and distribution systems. Constructed from high-strength, corrosion-resistant aluminum alloy, these components ensure long-term durability in demanding environmental conditions. Designed to meet the NF C 33-041 standard, they provide a secure anchoring solution when used in conjunction with JBGA or JBGB systems.
Technical Details
Standards
NF C 33-041
- Material
- Corrosion-resistant aluminium alloy
- Compatible Systems
- JBGAJBGB
Performance Specifications
Load Capacity and Packaging

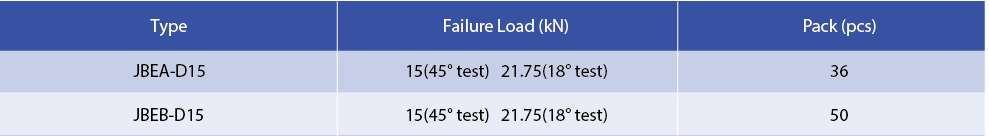

| Model | Failure Load (45°) | Failure Load (18°) | Pack Size (pcs) |
|---|---|---|---|
| JBEA-D15 | 15 kN | 21.75 kN | 36 |
| JBEB-D15 | 15 kN | 21.75 kN | 50 |
