Aluminum Wall Panel Roll Forming Machine

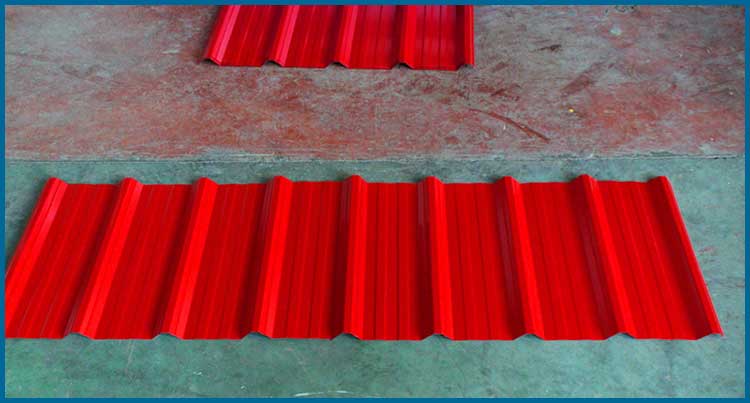

This roll forming machine is designed for shaping aluminum wall panels. It provides a cost-effective solution for producing consistent wall profiles.
Technical Specifications
Overview
Reliable Aluminum Wall Panel Production

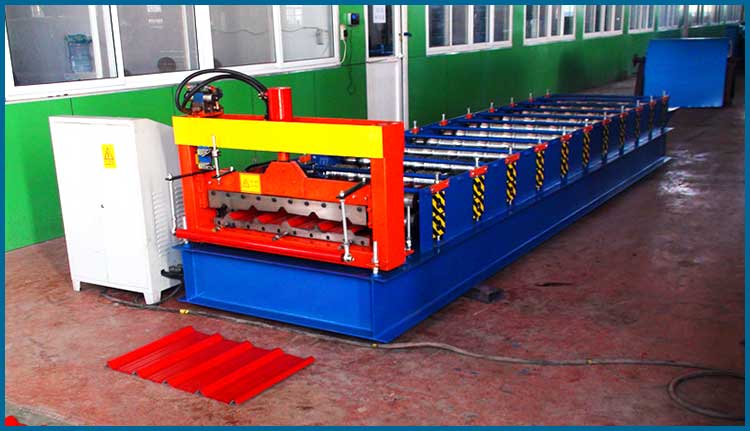

This 3-ton light-weight roll forming machine is specifically engineered for the efficient production of aluminum wall panels. Designed for durability and simple operation, it provides a cost-effective solution for industrial metal forming applications. The system integrates a robust forming unit with a precise cutting mechanism to ensure consistent profiles and high-quality output for various architectural needs.
Technical Parameters
Key Performance Metrics
3 tons
Machine Weight
15 m/min
Max Productivity
11 rows
Roller Stations
75 mm
Shaft Diameter
Material Dimensions
| Parameter | Value |
|---|---|
| Feeding Width | 1000mm |
| Material Thickness | 0.3-0.8mm |
| Productivity Speed | 8-15m/min |
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
Construction & Components
Component Details

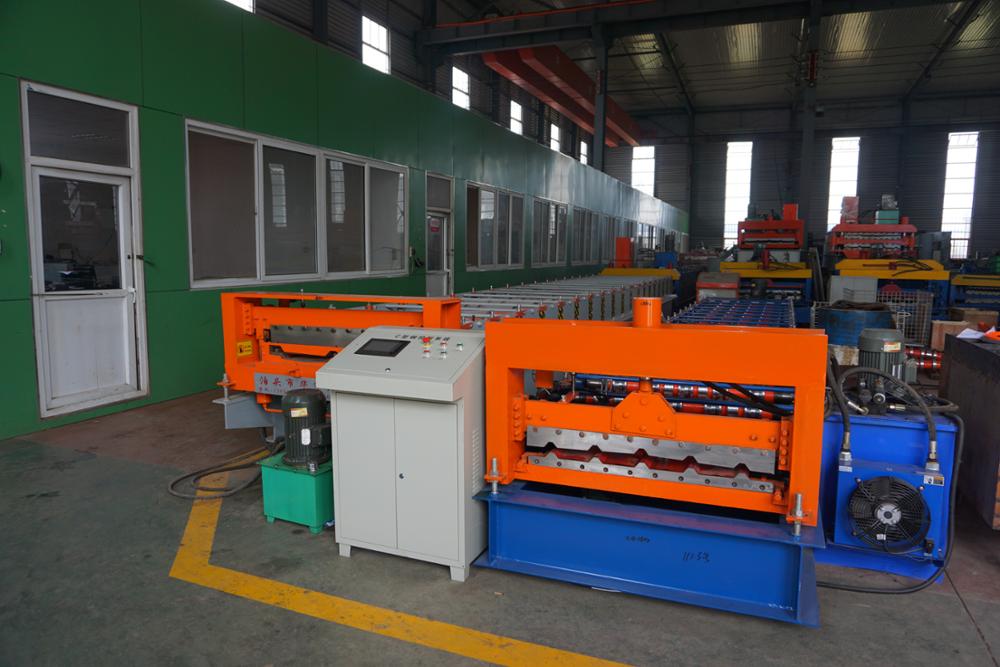

- Rollers manufactured from 45# steel

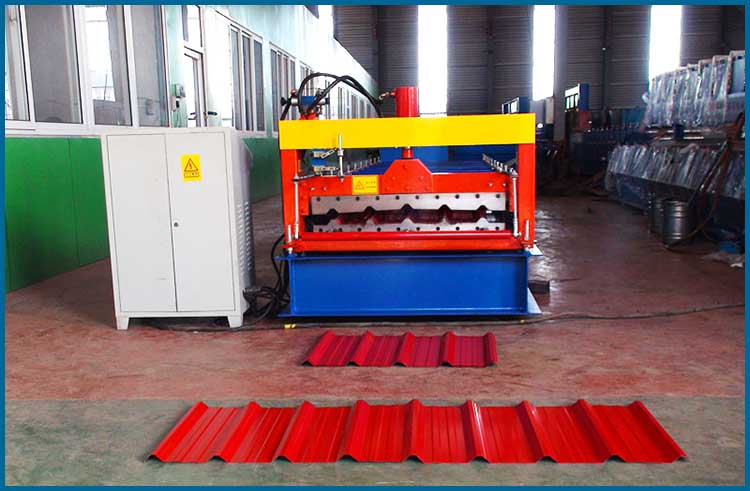

- Hydraulic cutting system for precise length control
- Integrated control panel for parameter adjustment
- Blue base with robust frame construction
- Top-mounted electric motor for rolling mechanism
Service & Support
Service & Support
- 1-year standard machine warranty
- Customized sourcing services available
- Standard packaging in plastic film or wood cases
- Custom packaging options based on requirements

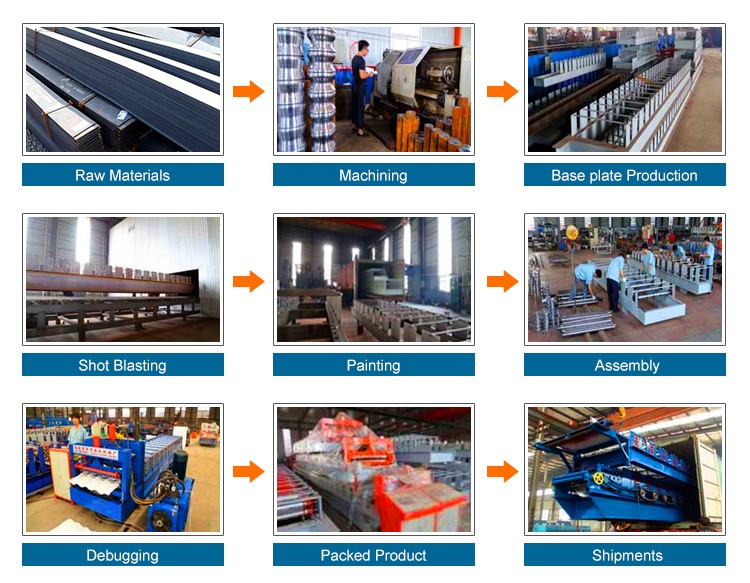

Manufacturing Process
Production Workflow
- Raw Material Sourcing
- Precision Machining
- Base Plate Production
- Shot Blasting & Painting
- Assembly & Debugging
- Packing & Shipment
