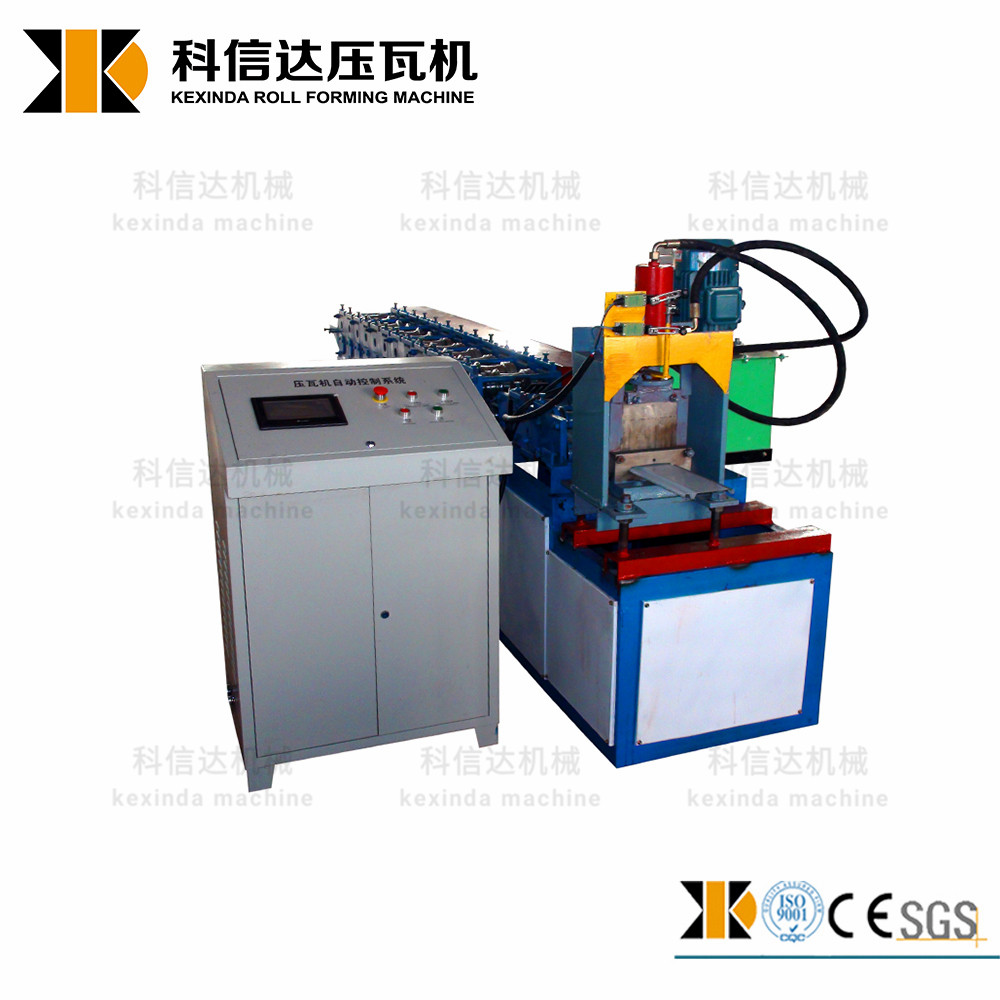

Aluminum Shutter Door Roll Forming Machine
This automatic rolling mill produces high-quality aluminum shutter doors with precision and efficiency. The machine is engineered for consistent and durable results in large-scale production environments.
Technical Specifications
Overview
High-Efficiency Shutter Door Production
This automatic roll forming machine is engineered for the precise and efficient manufacturing of aluminum shutter doors. Featuring a robust construction and advanced automated control systems, it ensures consistent, high-quality production suitable for industrial-scale applications. The system offers adjustable parameters to accommodate various shutter door designs, minimizing manual labor while maximizing output.
Technical Specifications
- Main Motor Power
- 3 kW
- Motor Phase
- 3 phase
- Hydraulic Motor Power
- 3 kW
- Hydraulic Pressure
- 10-12 MPa
- Voltage
- 380V / 3phase / 50Hz
- Control System
- PLC Delta Inverter
Machine Construction
- Main Frame
- 300mm H-Beam
- Backboard Thickness
- 14 mm
- Chain Size
- 20 mm
Production Capabilities
- Compatible Material
- Color steel coils
- Feeding Thickness
- 0.3-1.2 mm
- Productivity
- 8-12 m/min
Roll Forming Details
Key Components Material
| Component | Material |
|---|---|
| Roller | 45# Steel |
| Cutter | Cr12, quenched |
- Roll Stations
- 11
- Roller Diameter
- 70 mm
