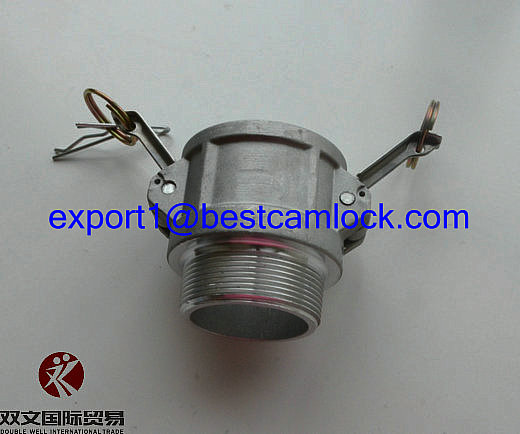

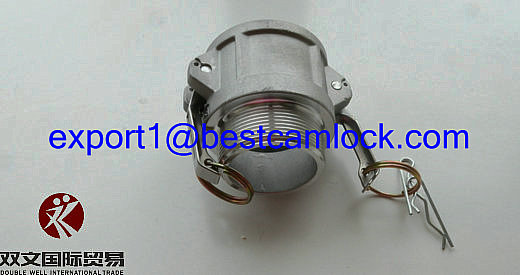

Aluminum Camlock Coupling BSP Thread Adapter
This aluminum camlock coupling provides quick and secure connections for pipes and hoses. It is suitable for fluid transfer applications, offering a lightweight and abrasion-resistant solution compared to flanged or threaded fittings.
Technical Specifications
Product Overview
High-Performance Aluminum Camlock Coupling
This aluminum camlock coupling is designed for rapid, secure connection and disconnection of pipes and hoses in industrial fluid transfer systems. Engineered for durability and efficiency, it offers excellent abrasion resistance and a lightweight design that simplifies handling. With compatibility for various thread types including BSP and NPT, these couplings provide a reliable, leak-proof solution for oil, water, and chemical handling applications.
Technical Specifications
Material Composition
| Component | Material |
|---|---|
| Body | Aluminum |
| Pins, Rings, Safety Clip | Carbon steel (plated) or Stainless steel |
| Handles | Brass or Stainless steel |
| Seal | NBR, BUNA, EPDM, VITON |
Performance Metrics
250 psi
Max Working Pressure
400 F
Max Temperature
- Available Sizes
- 1/2 inch to 8 inch
- Thread Standards
- NPTBSPPBSPT
- Compliance Standards
- A-A-59326MIL-C-27487DIN 2828
Usage & Application
Suitable Applications
- Oil transfer
- Water systems
- Industrial fluid handling
- Pipe and hose connection
Key Advantages
Abrasion ResistantLightweightEconomicalTool-free operationLeak Prevention
