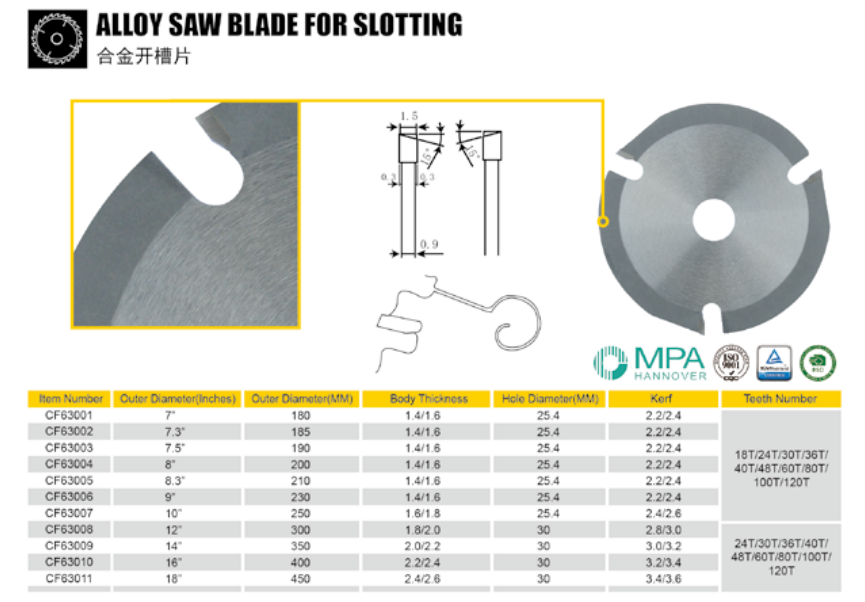

Alloy Slotting Saw Blade
This alloy saw blade is precision-engineered for slotting applications. It features optimized tooth geometry for clean and efficient cuts.
Technical Specifications
Product Overview
Precision Slotting Performance
This alloy saw blade is precision-engineered specifically for demanding slotting applications. It features durable construction and optimized tooth geometry to ensure clean, efficient cuts across a wide range of materials. With advanced design elements like a 15-degree cutting angle, this blade minimizes vibration and enhances overall cutting performance for professional industrial use.
Technical Specifications
Cutting Geometry
15 degrees
Cutting Angle
1.5 mm
Top Width
0.3 mm
Side Clearance
0.9 mm
Base Thickness
Available Dimensions
| Item No. | Diameter (In) | Diameter (mm) | Body Thickness (mm) | Hole Diameter (mm) | Kerf (mm) |
|---|---|---|---|---|---|
| CF63001 | 7" | 180 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63002 | 7.3" | 185 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63003 | 7.5" | 190 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63004 | 8" | 200 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63005 | 8.3" | 210 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63006 | 9" | 230 | 1.4/1.6 | 25.4 | 2.2/2.4 |
| CF63007 | 10" | 250 | 1.6/1.8 | 25.4 | 2.4/2.6 |
| CF63008 | 12" | 300 | 1.8/2.0 | 30 | 2.8/3.0 |
| CF63009 | 14" | 350 | 2.0/2.2 | 30 | 3.0/3.2 |
| CF63010 | 16" | 400 | 2.2/2.4 | 30 | 3.2/3.4 |
| CF63011 | 18" | 450 | 2.4/2.6 | 30 | 3.4/3.6 |
Teeth Configurations
- 18T
- 24T
- 30T
- 36T
- 40T
- 48T
- 60T
- 80T
- 100T
- 120T
