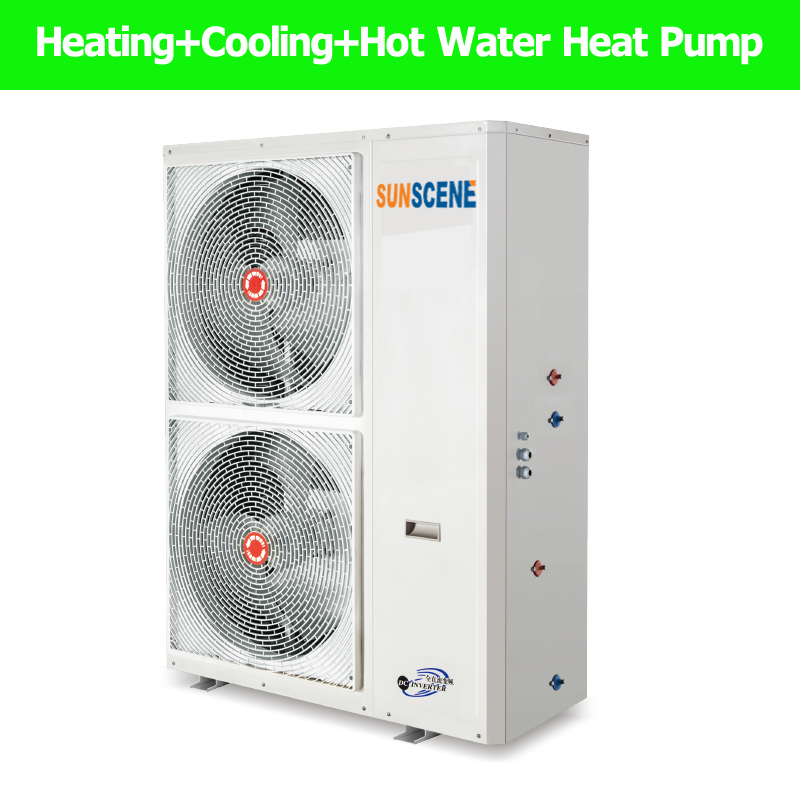

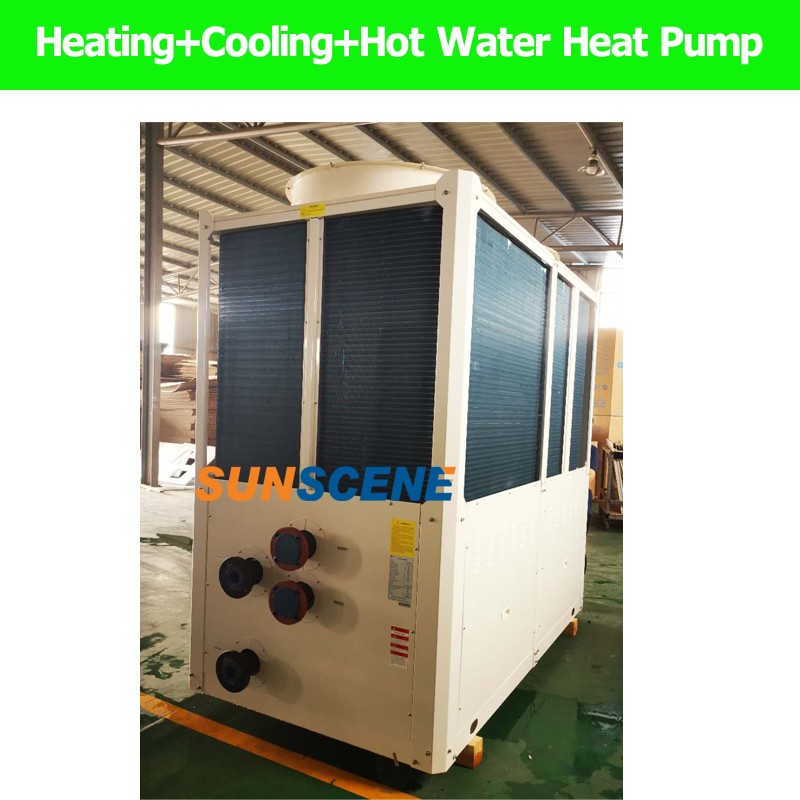

All-in-One Inverter Heat Pump
This all-in-one inverter heat pump offers five working modes, including heating, cooling, and domestic hot water. It operates effectively in cold climates and uses a 220V power supply.
Technical Specifications
Overview
4th Generation All-in-One Climate Solution
This DC inverter heat pump is a versatile 4-in-1 system providing heating, cooling, and domestic hot water (DHW) with five distinct working modes. It features a dual heat exchanger design that enables 100% heat recovery for free hot water during cooling operations, significantly reducing energy costs. Designed for safety and comfort, the system maintains optimal indoor humidity and completely separates water from electricity to ensure a secure, high-performance environment for large residential or commercial buildings.
Operational Modes
- Working Modes
- Heating + DHWCooling + DHWHeating OnlyCooling OnlyDHW Only
Performance Metrics
Heating Capacity Range
12 kW
Minimum Model
30 kW
Maximum Model
Technical Specifications
Model Performance Data
| Specification | RSV-12R | RSV-15R | RSV-25R/S | RSV-30R/S |
|---|---|---|---|---|
| Power Supply | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz |
| Rated Cooling (kW) | 10.0 | 15.0 | 25.0 | 30.0 |
| Rated Heating (kW) | 12.0 | 17.0 | 27.0 | 32.0 |
| EER (w/w) | 3.3 | 3.1 | 3.3 | 3.2 |
Key Features
Smart Monitoring & Control
- Network location remote monitoring
- PC centralized operation and control
- Multi-module equipment joint control
- Unlimited equipment combination capability
System Integration
Compatible Terminals

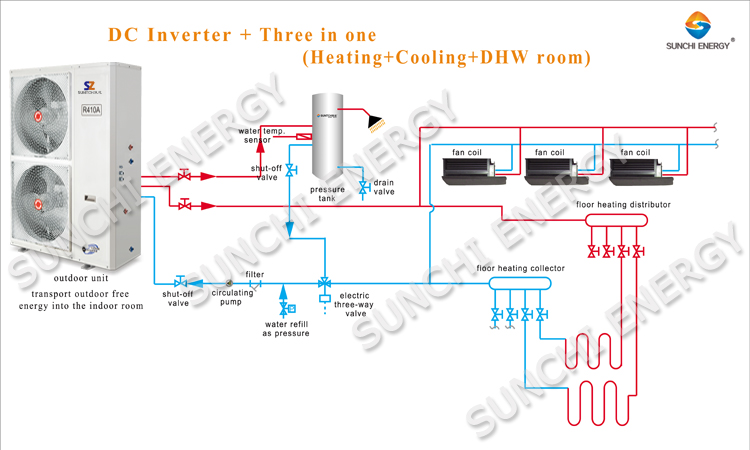

Underfloor HeatingRadiator HeatingFan Coil Cooling250L-500L Hot Water Tanks
Safety & Environment
Safety Features
- Complete water and electricity separation
- Zero combustion (no carbon monoxide risk)
- Clean energy operation
- R410A Eco-friendly refrigerant
Operational Limits
- Minimum Working Temperature
- -20 ℃
Application Scope
- Building Capacity
- Suitable for large homes with 5-10 rooms and up to 5 people for DHW usage.
