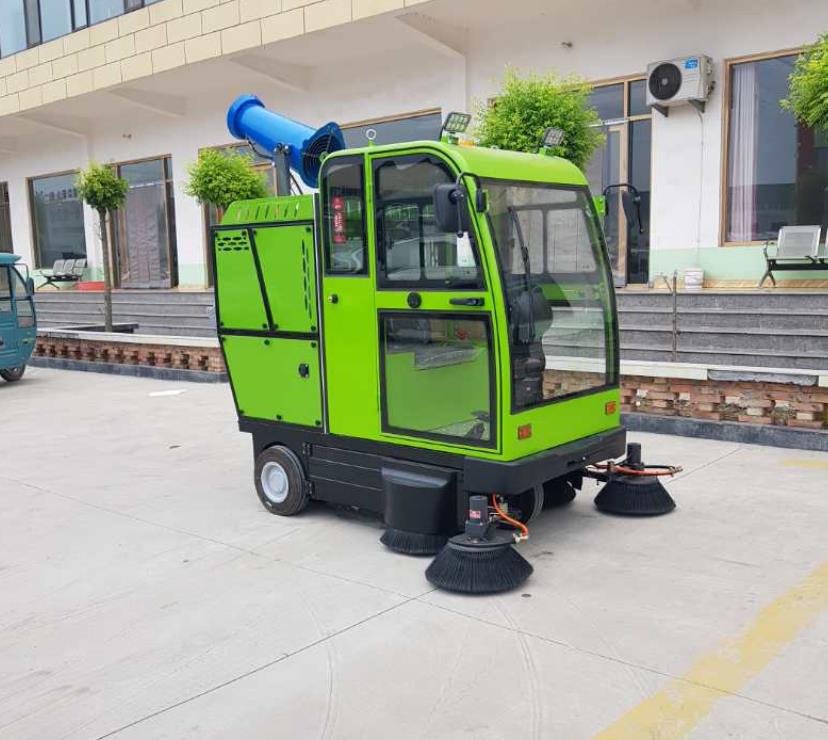

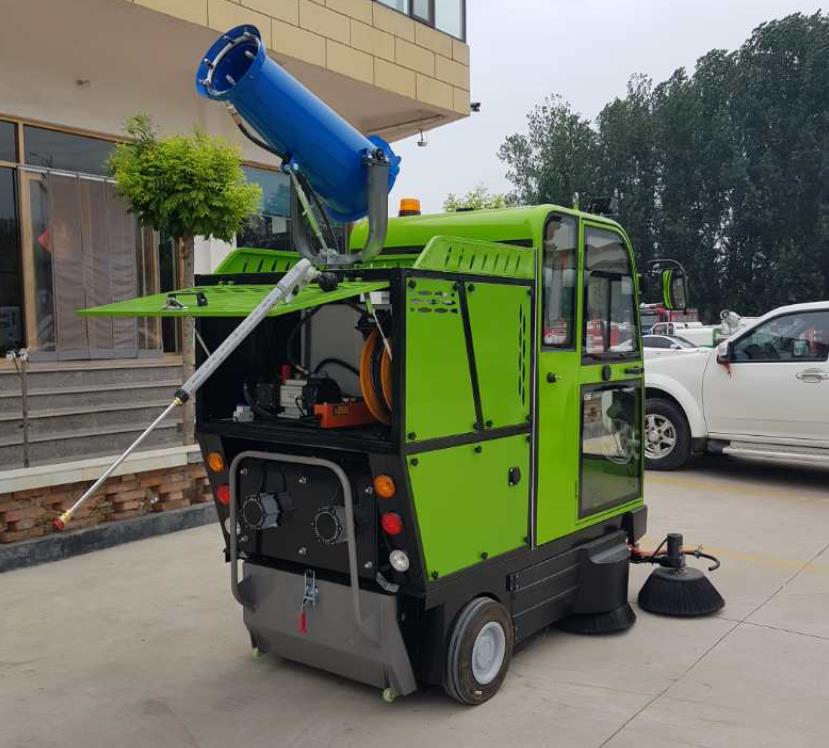

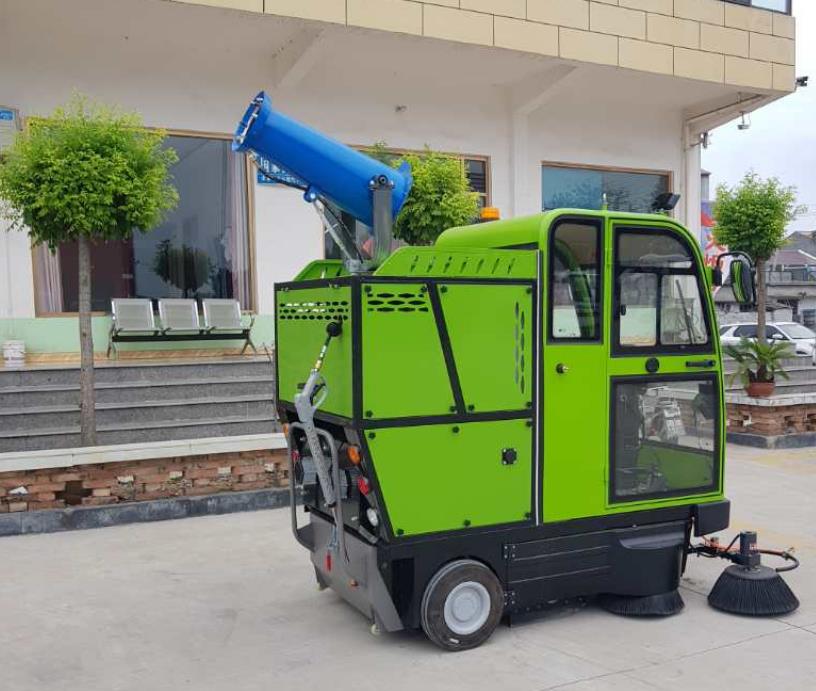

All-Electric Street Sweeper with Five Brushes
This all-electric street sweeper is equipped with five brushes for comprehensive cleaning. The machine features an enclosed cab for operator comfort and protection from the elements.
Technical Specifications
Overview
High-Efficiency Electric Street Sweeper
This all-electric street sweeper is designed for professional municipal and industrial sanitation. Featuring a fully enclosed cabin and a five-brush cleaning system, it delivers exceptional coverage with a sweeping width of up to 2000mm. The vehicle combines eco-friendly operation with high-performance features, including a high-pressure water cannon for dust suppression and a robust 48V battery system for extended 8-10 hour work shifts.
Performance & Capacity
Work Efficiency
18,000 m²/h
Max Cleaning Area
12 km/h
Working Speed
35 %
Gradeability
Sweeping Specifications
- Sweeping width: ≤2000mm
- Main brush length: 800mm
- Side brush diameter: 600mm
- Configuration: 1 Main brush + 4 Side brushes
Tank & Bin Capacities
400 L
Water Tank
260 L
Trash Bin
Power & Drivetrain
Powertrain Details
| Component | Specification |
|---|---|
| Drive System | Pure electric rear wheel differential drive |
| Battery | 48V 150AH (6 pieces) |
| Driving Motor Power | 1.5kw |
| Continuous Working Time | 8-10h |
Cleaning System
High-Pressure Cleaning System
- Pump Power: 1.5kw
- Working Pressure: 13Mpa
- Max Flow: 8L/min
- Pipe Length: 12m
- Includes quick-connector gun for nozzle versatility
Safety & Construction
- Safety & Build Quality
- Dual Disc BrakeAnti-lock Brake SystemLED Double SpotlightThickened Steel ShellTempered GlassOverload Protection
- Physical Dimensions
- 2300 x 1950 x 2000 mm
- Machine Net Weight
- 1200 kg
