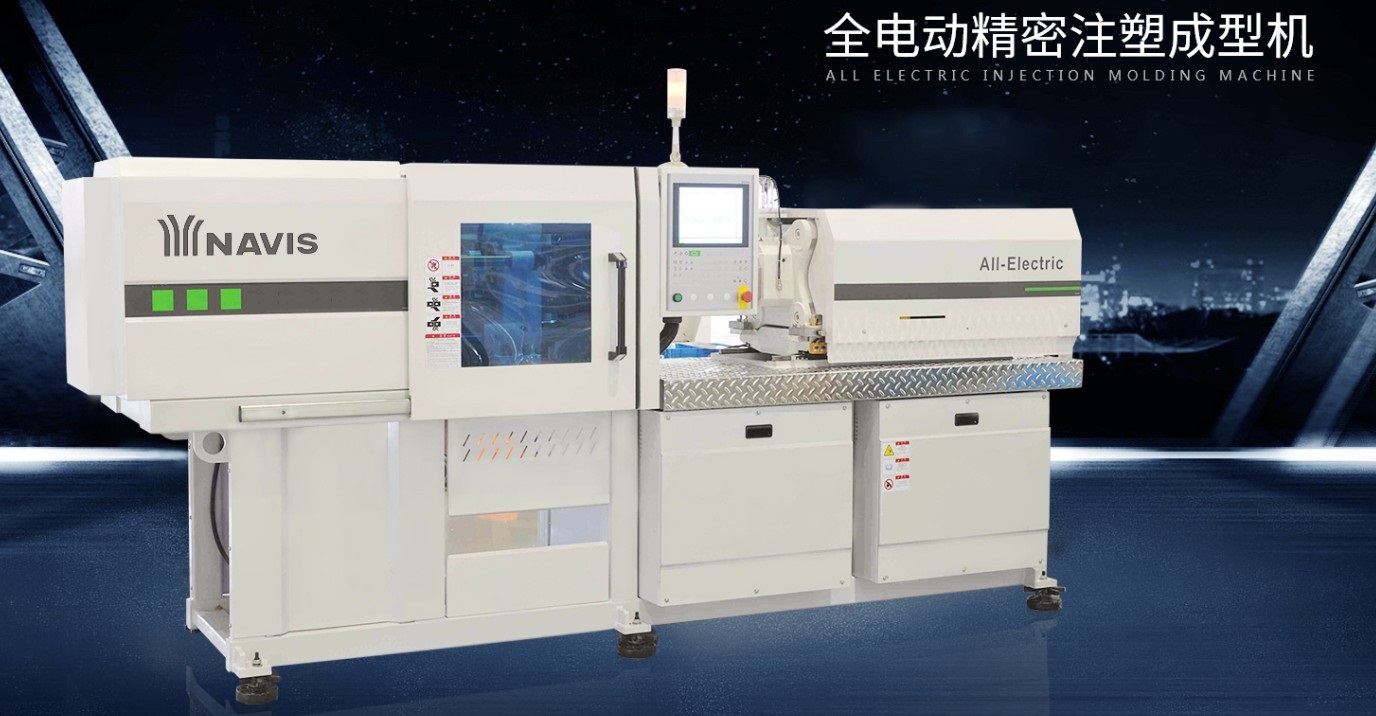

All-Electric Plastic Injection Molding Machine
This all-electric plastic injection molding machine offers high precision and energy efficiency. It features an advanced control system for optimized performance and real-time monitoring.
Technical Specifications
Overview
High-Precision All-Electric Injection Molding
The SE-300A is a cutting-edge all-electric injection molding machine designed for high-performance precision plastic molding. It features an advanced servo-driven system that minimizes energy consumption and cycle times while ensuring consistent quality for complex parts with tight tolerances. This machine is ideal for cleanroom environments due to its low-noise, lubrication-free moving platen design and high-efficiency operation.
Key Performance Metrics
Performance Highlights
Clamping Unit
Clamping Specifications
| Feature | Specification |
|---|---|
| Structure | High-rigid 5-pin toggle with self-lock |
| Space Between Tie-Bars | 310 x 290 mm |
| Platen Dimension | 450 x 430 mm |
| Open Stroke | 230 mm |
| Mould Thickness Range | 120 - 350 mm |
| Ejector Stroke | 60 mm |
| Ejector Force | 19.6 kN |
Injection Unit
Injection Capabilities
- Screw Diameters: 16mm to 28mm available
- Injection Capacity: 15 to 65 cm³
- Injection Weight (PS): 14g to 59g
- Max Injection Pressure: Up to 383 MPa
- Plasticizing Capacity: Up to 35 kg/h
- Heater Power: 3.6 - 4.184 kW
- Nozzle Pressing Force: 15.7 kN

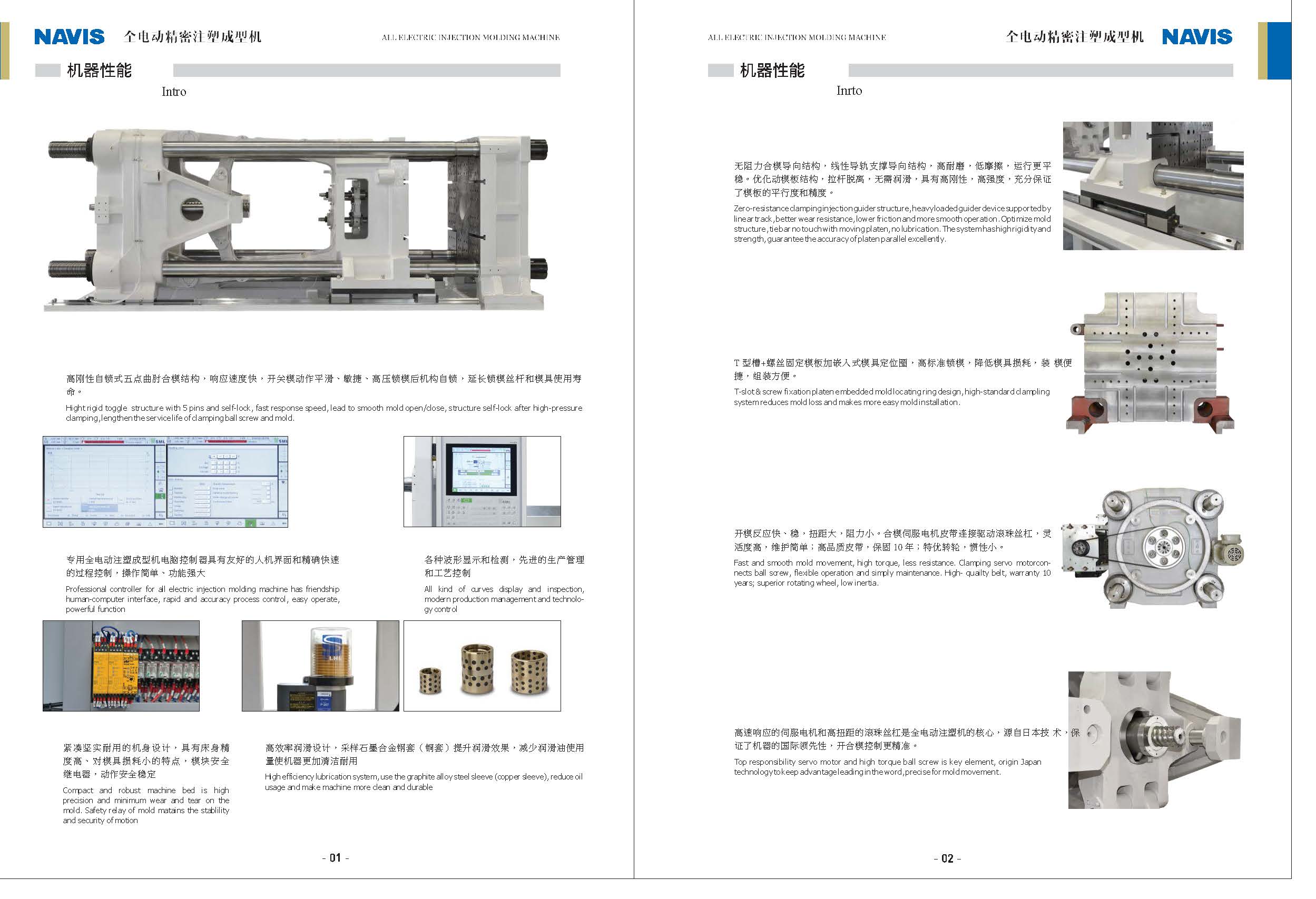

Advanced Features
- Technical Advantages

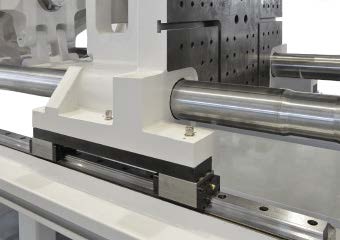

- Zero-Resistance ClampingLinear Track SupportGraphite Alloy Steel SleevesJapanese Servo TechnologyT-Slot Platen10-Year Belt WarrantySafety Relay ProtectionReal-time Curve Display

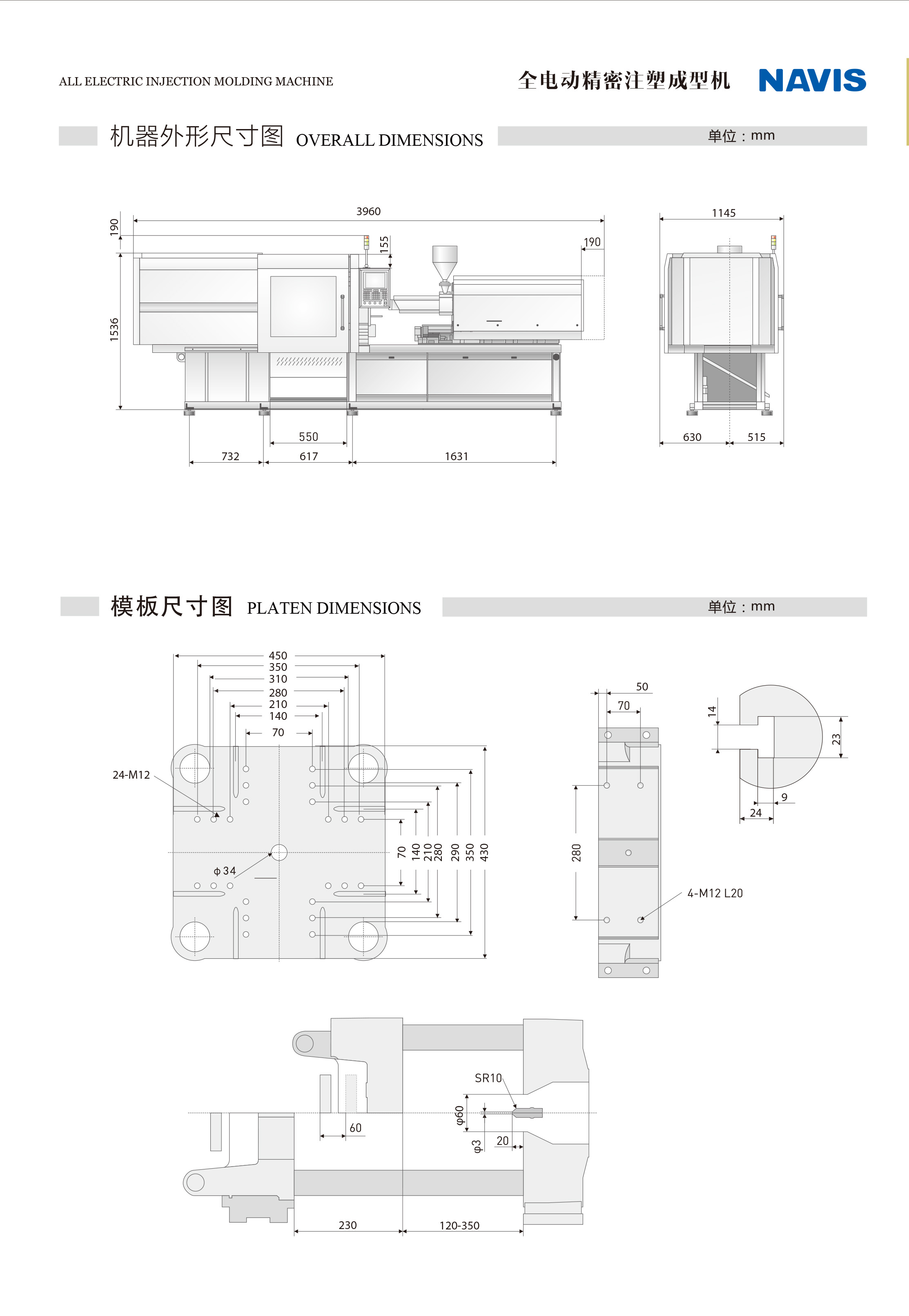

Dimensions
Physical Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 3960 mm |
| Overall Height | 1536 mm |
| Machine Bed | Compact and robust high-precision design |
Control System
Professional Process Control
Equipped with a professional controller featuring a user-friendly human-computer interface for rapid and accurate process control. The system supports comprehensive curve displays and inspection for modern production management. Maintenance is simplified through a high-efficiency lubrication system using copper/graphite alloy sleeves and a flexible servo-motor belt drive.
