Technical Specifications
Product Overview

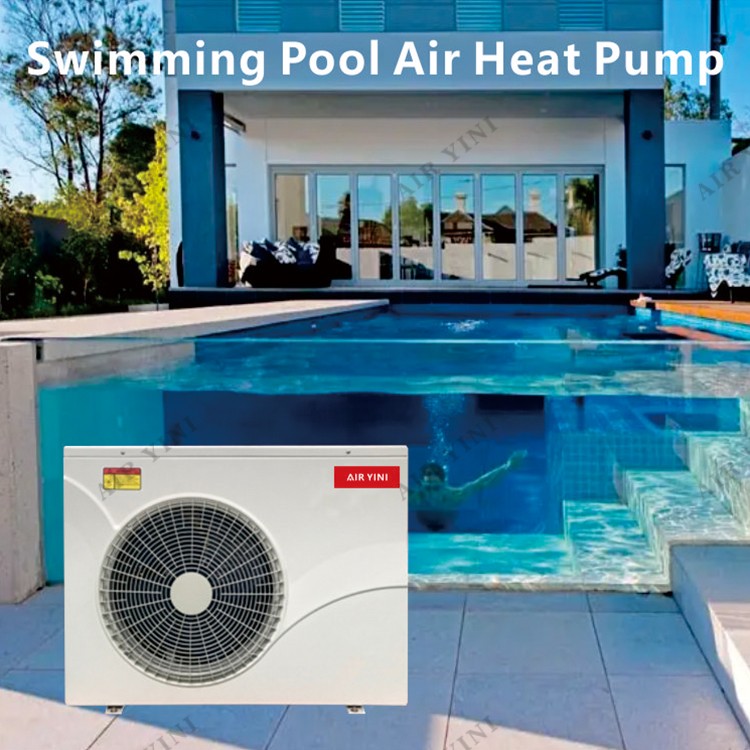

Professional Swimming Pool Heat Pump
This commercial-grade swimming pool heat pump is engineered for precise water temperature control in large pools, including hotels, schools, and gyms. Featuring advanced full DC inverter technology, it achieves a high coefficient of performance (COP) of 5.4, delivering over 80% energy savings compared to traditional electric heating equipment. The unit is designed for durability and ease of use, incorporating a titanium heat exchanger and intelligent remote monitoring capabilities.
Key Features
Performance Features
- Full DC Inverter technology for optimized energy efficiency

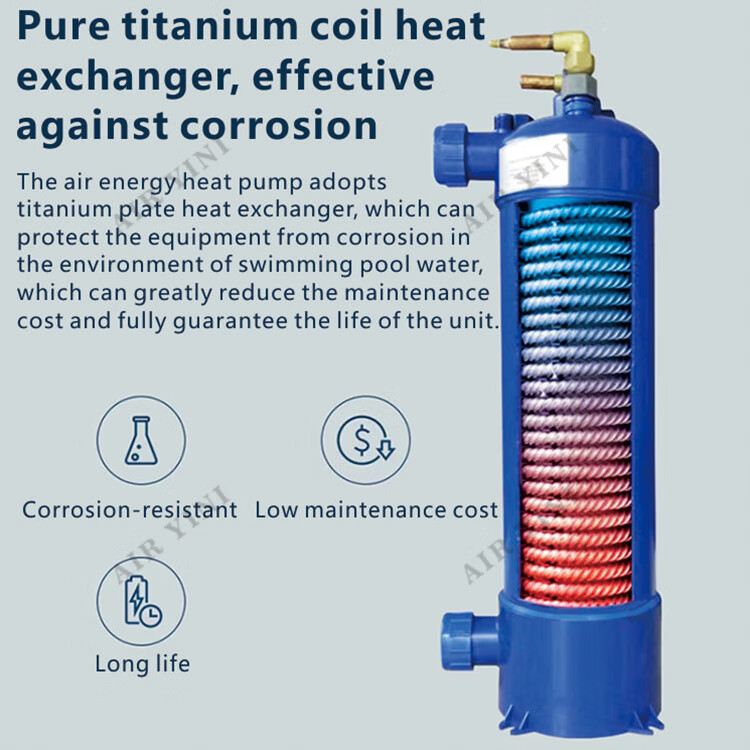

- Corrosion-resistant PVC Titanium heat exchanger
- Intelligent LCD wired controller with quick microprocessor adjustment
- Automatic defrosting function for cold climate operation
- Built-in water flow protection switch
- Hydrophilic coating on fins-coil air exchanger
Technical Specifications
Performance Metrics
11 kW
Rated Heating Capacity
5.2 W/W
COP
2.12 kW
Rated Input Power
System Data
| Specification | Value |
|---|---|
| Model | YINI-030-YC |
| Heating Mode | Circulating |
| Ambient Temp Range | -15 to +43 °C |
| Max Running Current | 10 A |
| Power Supply | 220V-240V 1N~50Hz |
| Refrigerant | R407C (1.4 KG) |
| Compressor Type | Scroll |
| Max Outlet Water Temp | 40 °C |
| IP Code | IPX4 |
Certifications and Compatibility
- Certifications
- CECBIAFSAAGSErPNFSGSSASONEC
