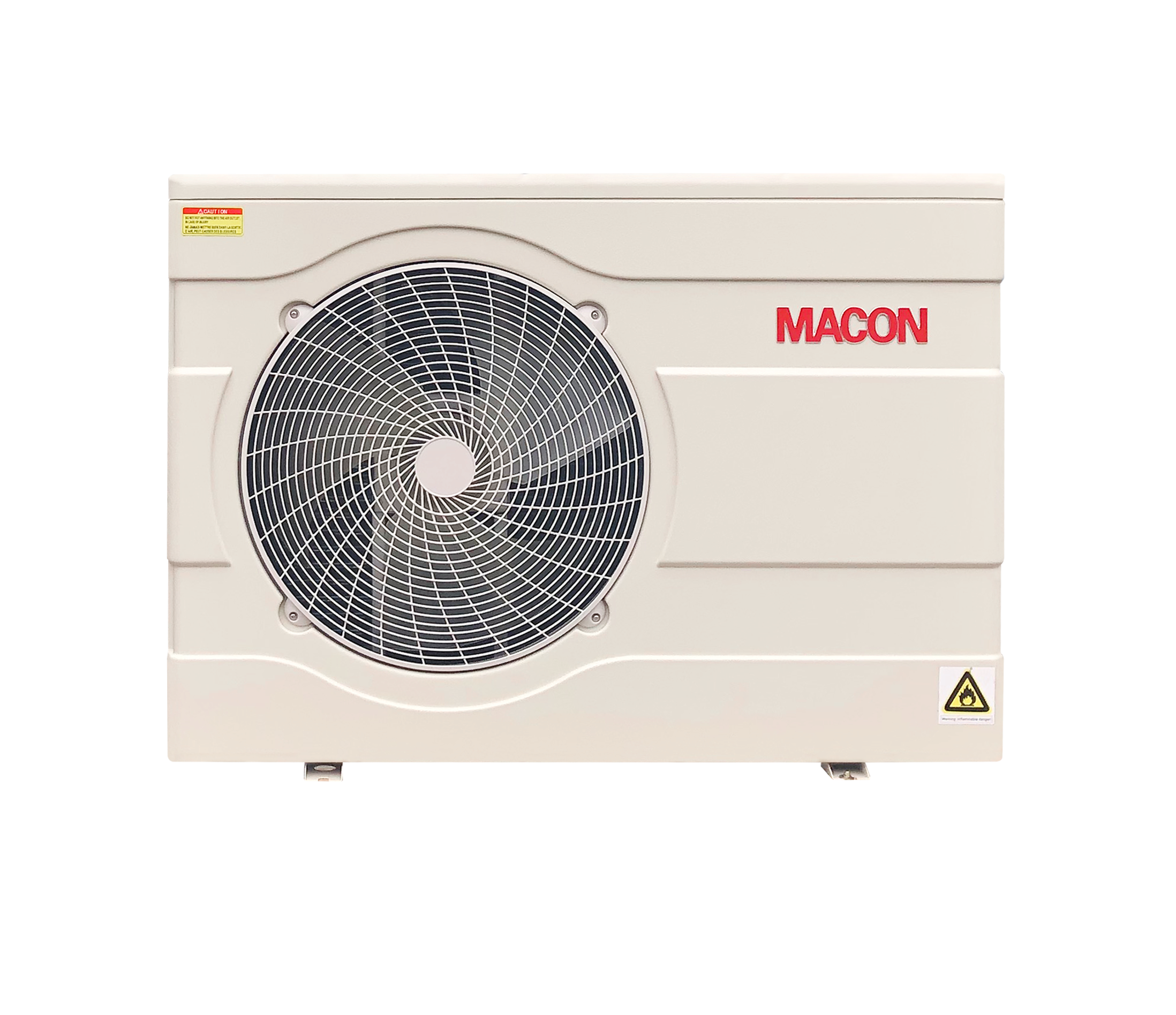

Air to Water Swimming Pool Heat Pump
This air to water heat pump features a PVC titanium heat exchanger for corrosion resistance. It also has an intelligent controller with LCD touch screen for easy adjustment.
Technical Specifications
Overview
High-Efficiency Pool Heating Solution
This Air to Water Swimming Pool Heat Pump utilizes advanced DC inverter technology to provide fast heating and exceptional energy savings. Designed for durability with a PVC Titanium heat exchanger and hydrophilic-coated fins, it ensures reliable performance even in corrosive environments. With intelligent touch-screen controls and quiet operation, it offers a premium, low-maintenance heating solution for various pool sizes.
Key Features
Core Features
- Full DC inverter technology for 10% to 90% strength adjustment
- PVC Titanium heat exchanger with full corrosion resistance
- Hydrophilic coating on air exchanger fins
- Automatic defrosting with internal reverse cycle valve
- Flow switch for integrated water flow protection
- Intelligent LCD touch screen wire controller

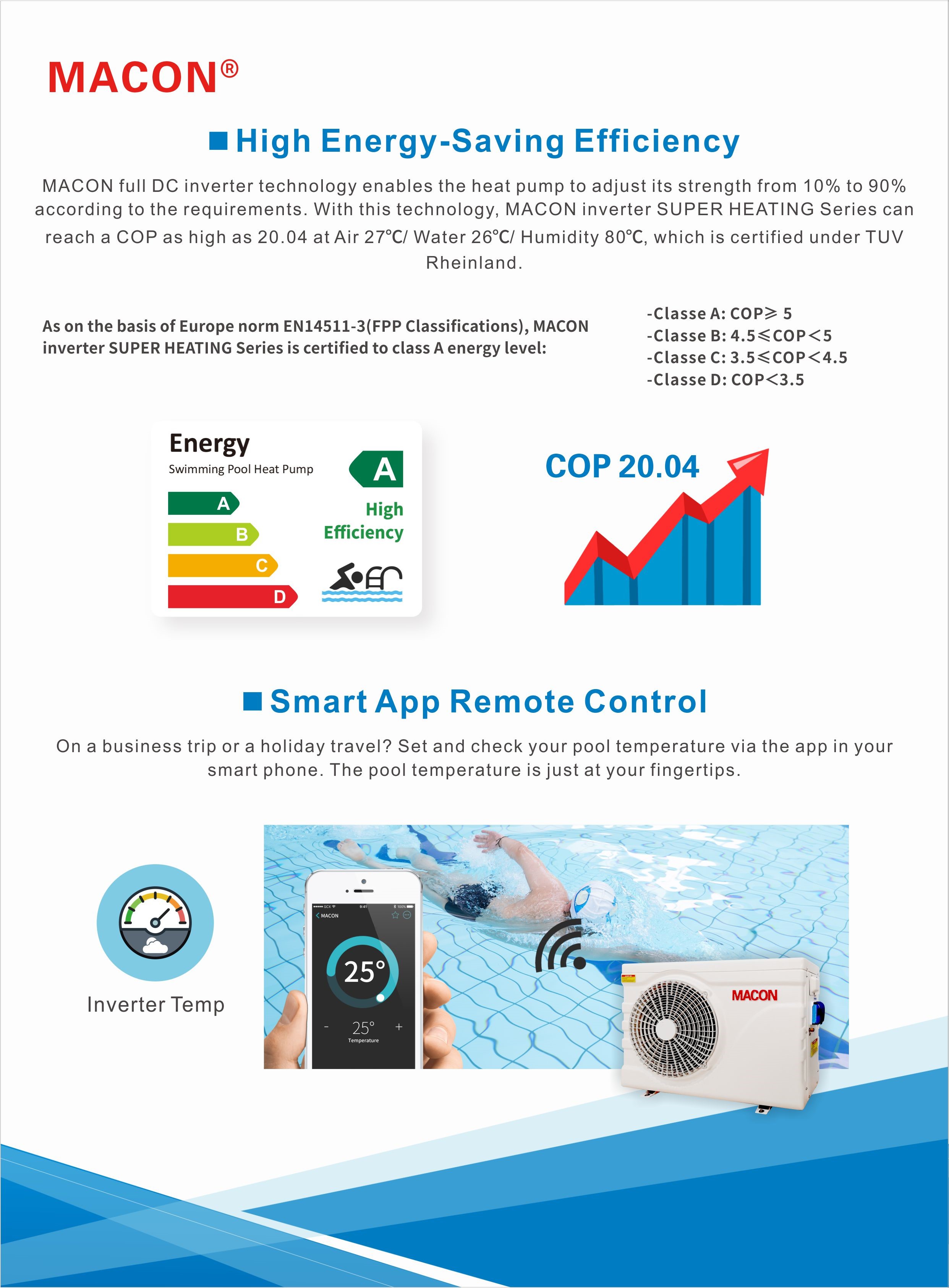

- Smart App remote control for temperature monitoring
Performance Metrics
Efficiency & Performance
20.04
Max COP (Air 27°C/Water 26°C)
45 dB(A)
Max Operating Noise (1m)
-20 °C
Min Ambient Temp
Technical Specifications
Model Performance Data
| Model Capacity | Power Supply | Heating Cap (A30/W28) | COP (A30/W28) | Water Flow |
|---|---|---|---|---|
| 020ZA1 | 220V/1Ph/50Hz | 8.5 kW | 6.7 | 3.65 m³/h |
| 030ZA1 | 220V/1Ph/50Hz | 13.0 kW | 6.82 | 5.58 m³/h |
| 040ZA1 | 220V/1Ph/50Hz | 17.5 kW | 6.71 | 7.52 m³/h |
| 050ZA1 | 220V/1Ph/50Hz | 21.5 kW | 6.84 | 9.00 m³/h |
| 050ZA1/S | 380V/3Ph/50Hz | 21.5 kW | 6.9 | 9.00 m³/h |
- Refrigerant Support
- R410AR32
- Physical Connections
- 1-1/2 inch Water Outlet/Inlet
Installation & Design
Design & Build

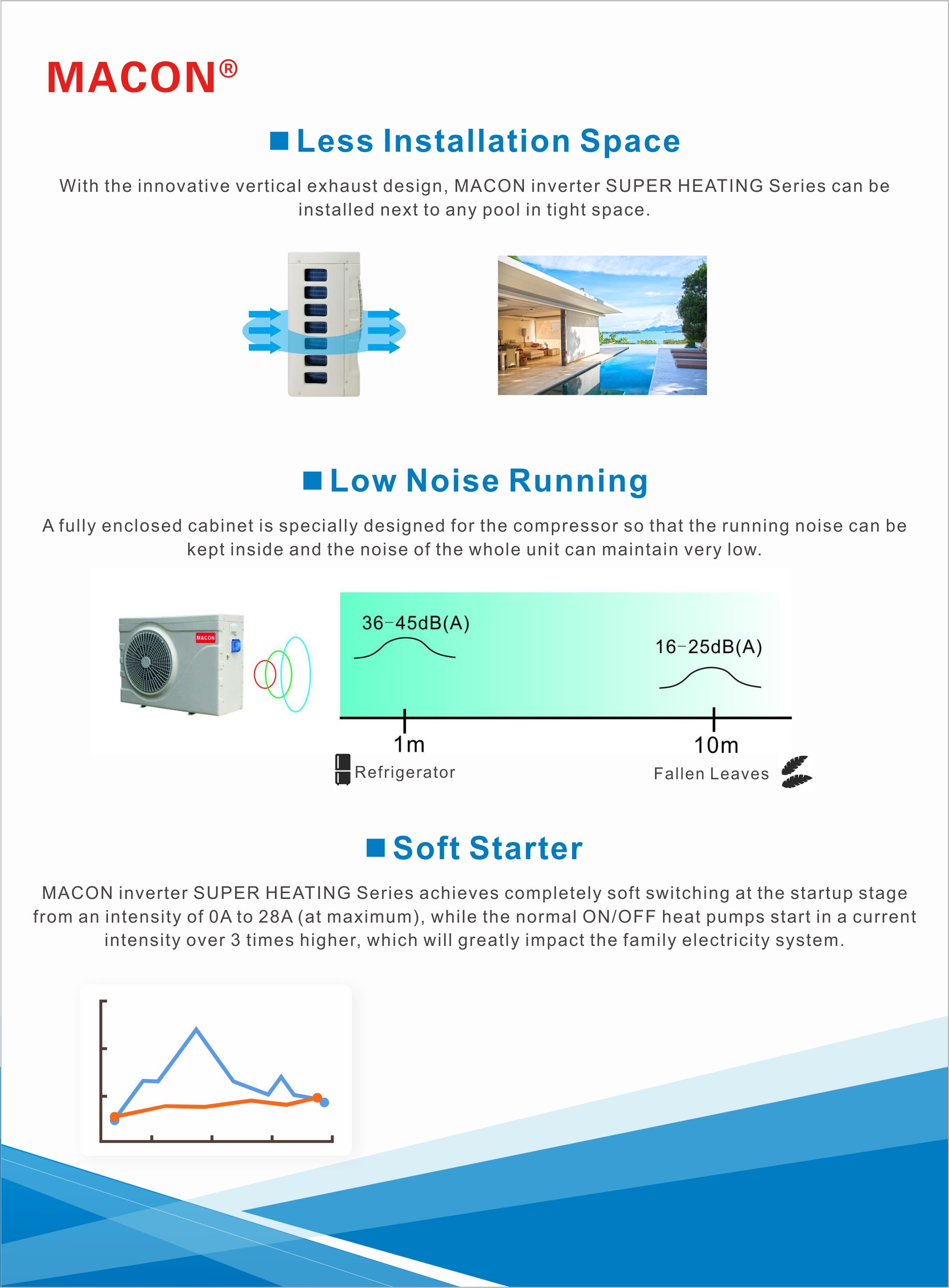

- Vertical exhaust design for tight space installation
- Fully enclosed compressor cabinet for noise reduction
- Soft starter technology (0A to 28A) to protect electrical systems
- Compact and demountable structure for easy maintenance access
- Horizontal fan direction
Compliance
Standards & Energy Class
CETÜV Rheinland CertifiedClass A Energy LevelEN14511-3 Compliant
