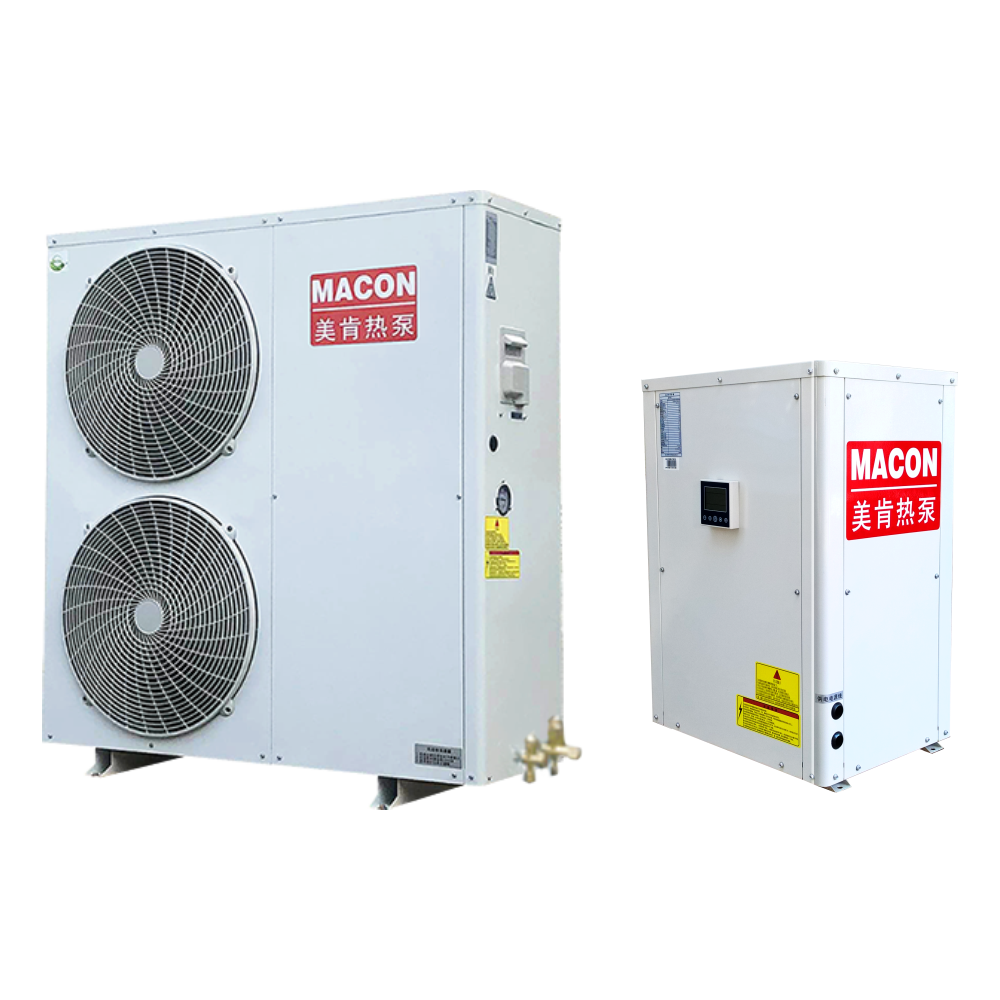

Air to Water Heat Pump with EVI DC Inverter
This air to water heat pump features an EVI DC inverter for efficient operation even in low temperatures. It provides heating in winter, cooling in summer, and hot water year-round.
Technical Specifications
Product Overview
Advanced Climate Control Solution
This EVI DC inverter air-to-water heat pump is engineered for high-efficiency performance in both residential and commercial applications. Utilizing Enhanced Vapor Injection (EVI) technology, the system maintains stable heating capacity even in extreme ambient temperatures as low as -35°C. It offers a versatile, all-in-one solution for winter heating, summer cooling, and year-round domestic hot water production, featuring intelligent control systems that reduce energy consumption by up to 30% compared to standard units.
Key Features

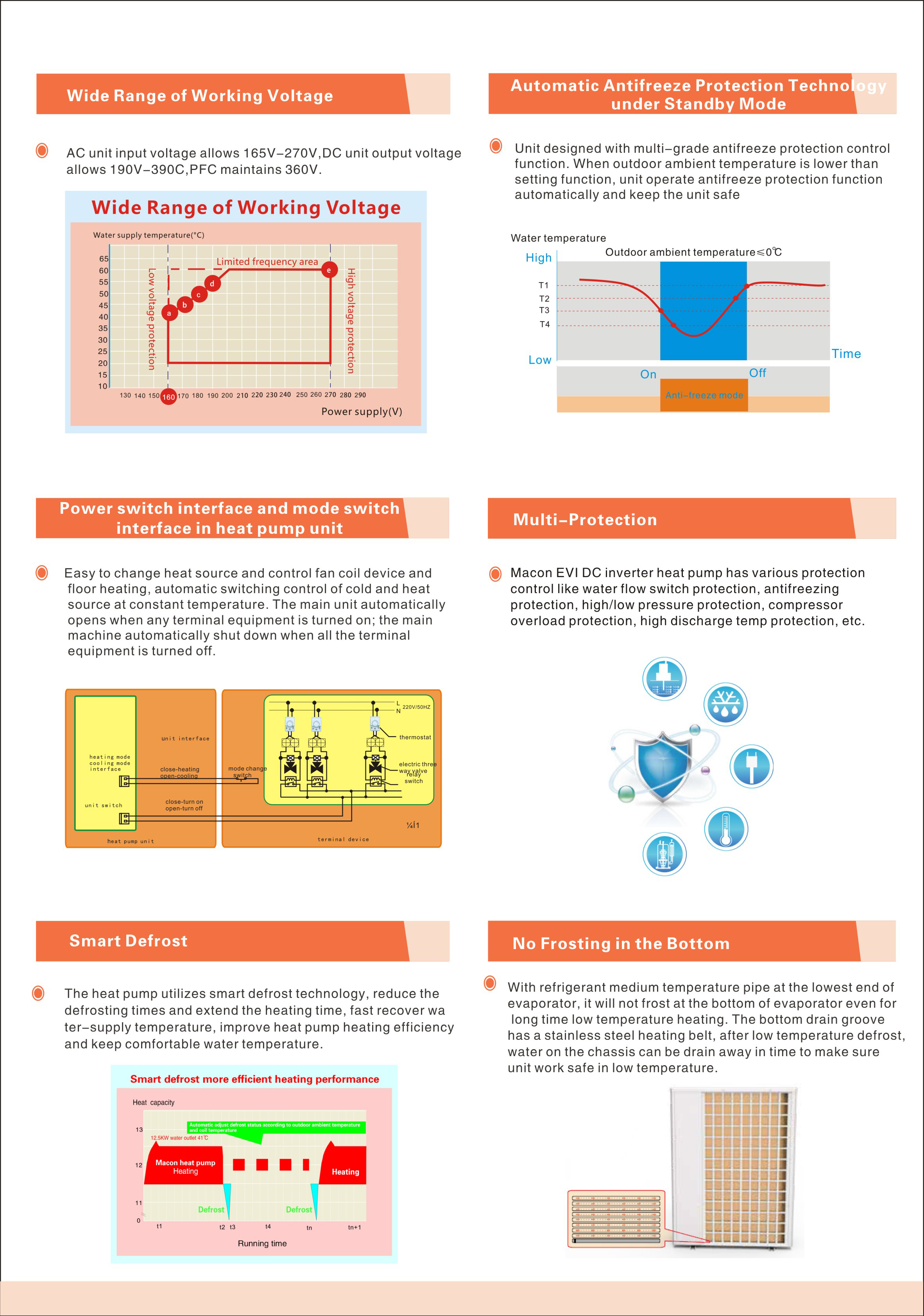

Safety Protections
- High/Low pressure protection
- Compressor overload protection
- Water flow switch protection
- Multi-grade antifreeze protection
- High discharge temperature protection
- Power loss protection
- Core Technologies
- EVI DC InverterSmart DefrostAutomatic Heating CurvePFC ControlSplit-Type Design

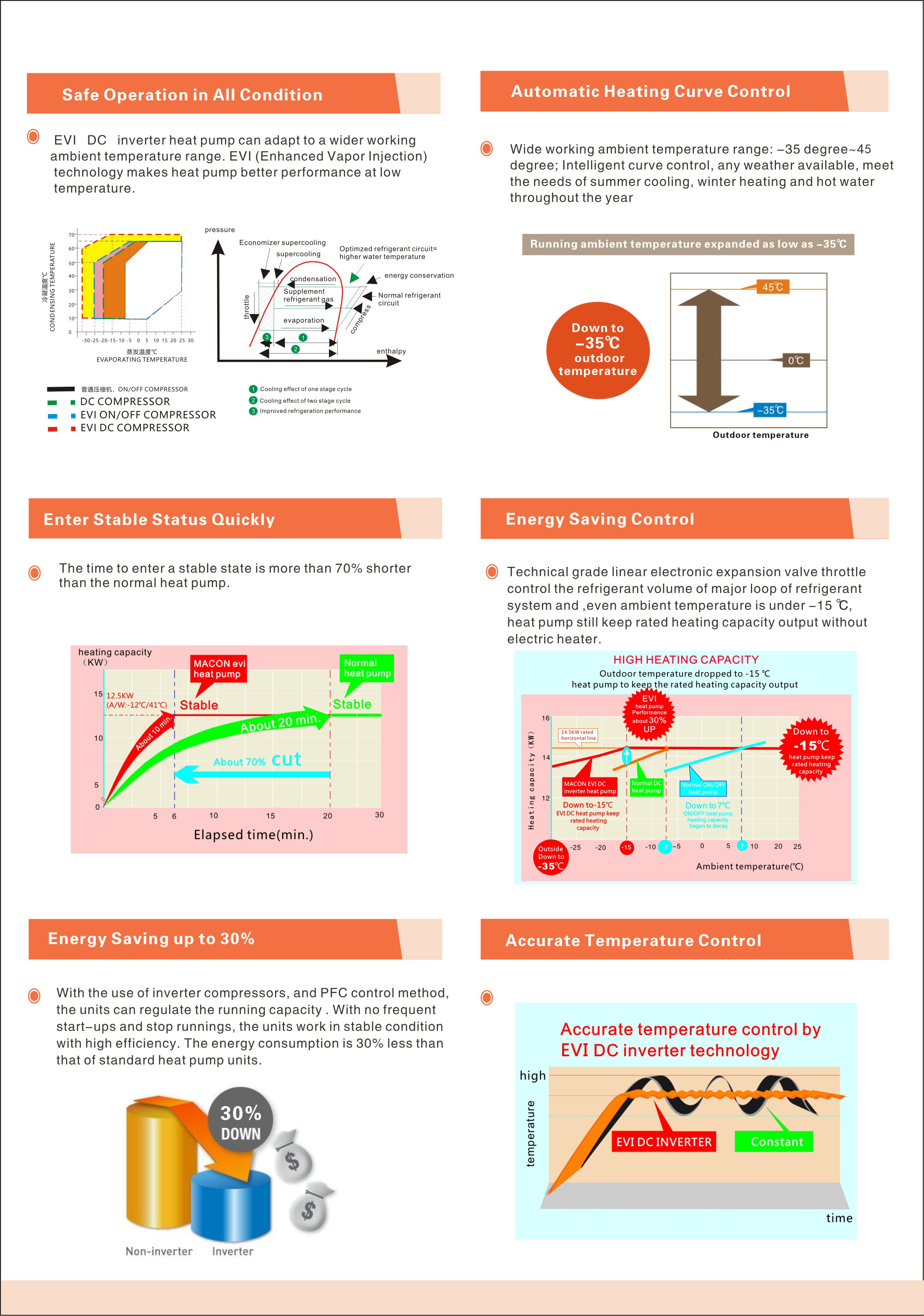

Performance Metrics
Efficiency Highlights
30 %
Energy Savings
3.25
Typical COP
2.6
Average EER
Technical Specifications
Model Performance Data
| Model | Cooling Capacity (kW) | Heating Capacity (kW) | Sound Level (dB(A)) |
|---|---|---|---|
| 09YN(BE) | 7.5 | 9 | 48 |
| 15YN(BE) | 12.5 | 15 | 50 |
| 18YN(BE) | 14 | 18 | 51 |
| 20YN(BE) | 16 | 20 | 54 |
Compliance
Certifications
CEETLEN14511
