Air to Water Heat Pump System

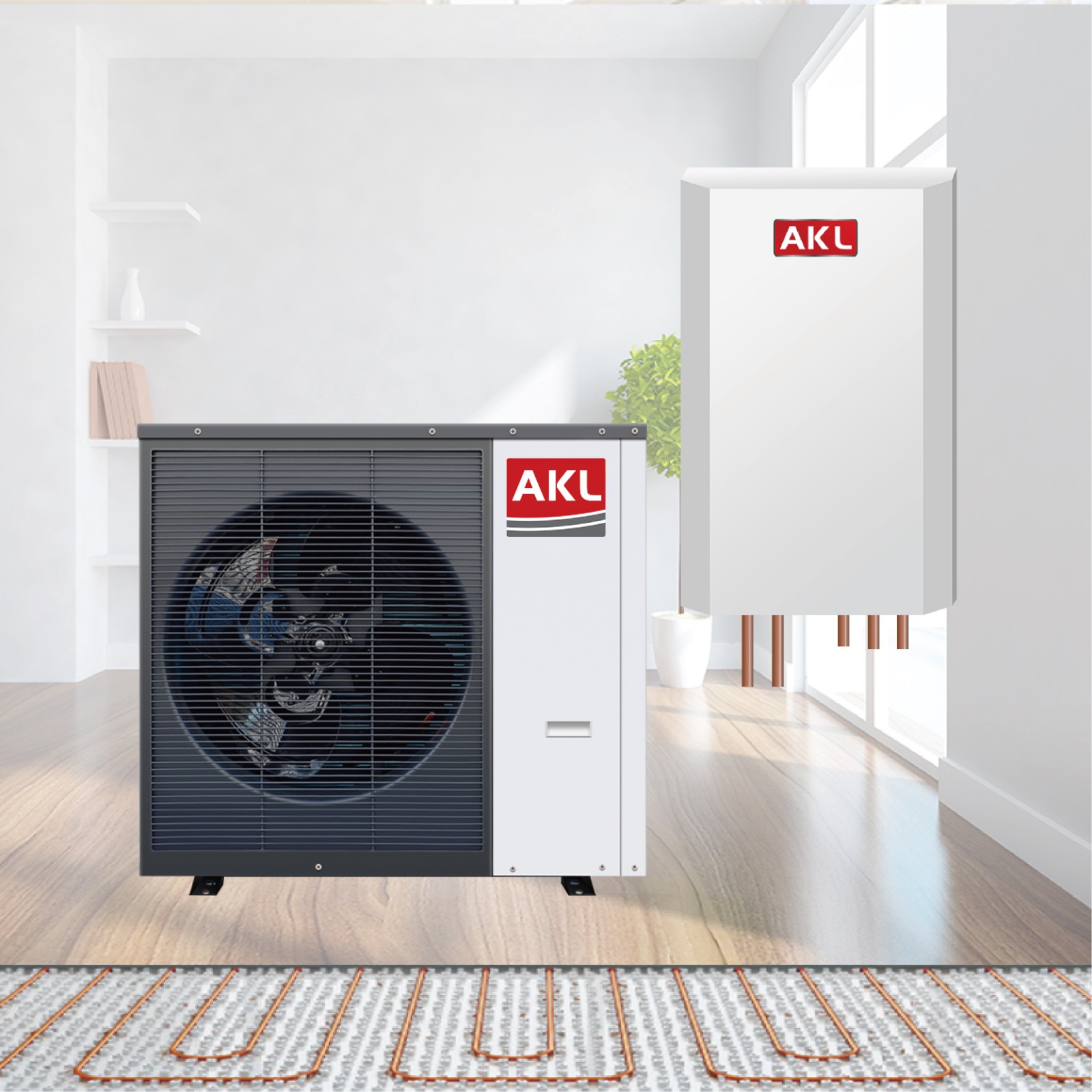

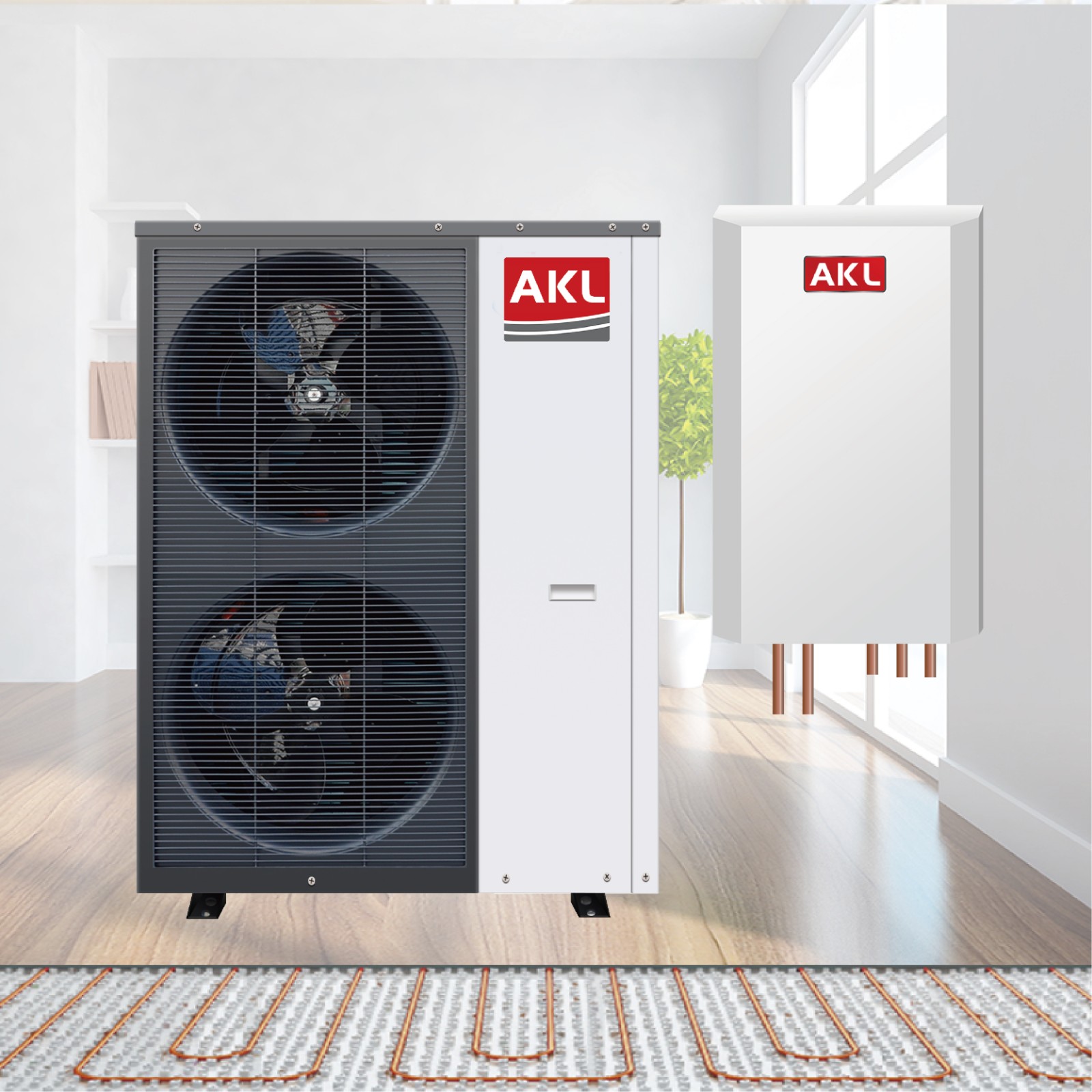

The air to water heat pump is a new energy-saving solution for house heating and cooling. It extracts heat from the outside air and transfers it to water for various heating applications.
Technical Specifications
Product Overview
High-Efficiency Heating & Cooling Solution
This air-to-water heat pump system offers a sustainable energy-saving solution for residential and commercial climate control. By extracting heat from the outdoor air, it efficiently provides space heating, underfloor heating, and domestic hot water even in cold temperatures. The system features a versatile design with high-performance compressors and advanced safety protections like freeze and over-pressure prevention.

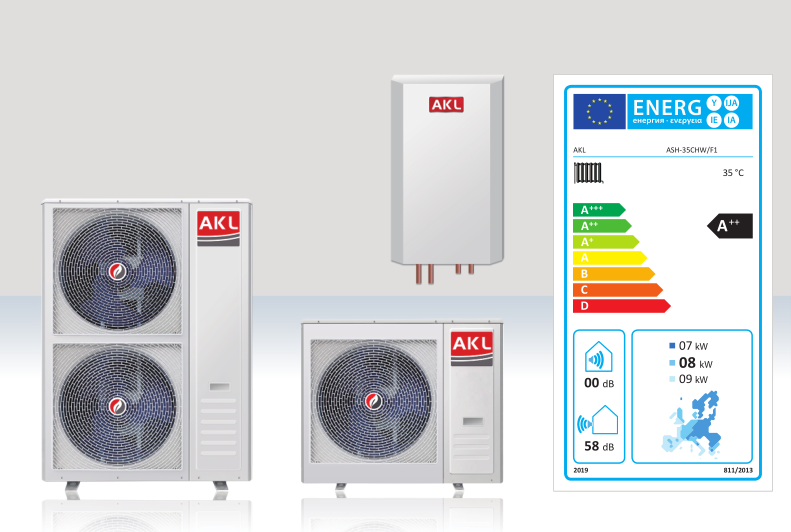

Energy Efficiency
Energy Efficiency Class
A++ErP Level (35°C)
- SCOP (35°C)
- 4.3 w/w
Performance Metrics
Heating Capacity Range
4 kW
Min Heating
30.2 kW
Max Heating

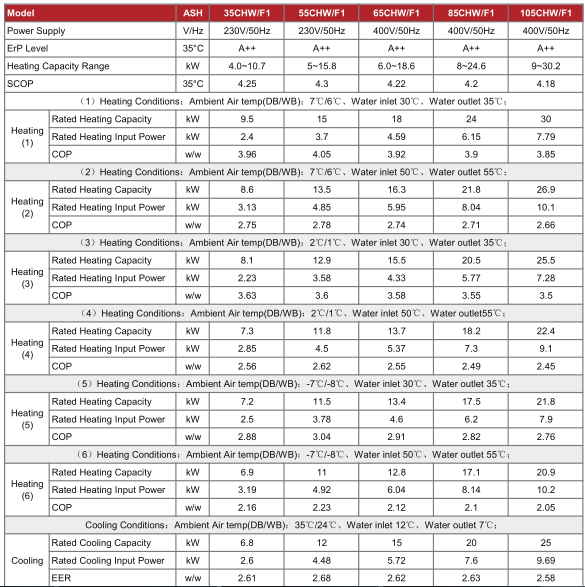

Model Performance Comparison
| Model | Power Supply | Rated Heating (7°C/35°C) | COP (7°C/35°C) | Rated Cooling (35°C/7°C) |
|---|---|---|---|---|
| ASH-35CHW/F1 | 230V/50Hz | 9.5 kW | 3.96 | 6.8 kW |
| ASH-55CHW/F1 | 230V/50Hz | 15 kW | 4.05 | 12 kW |
| ASH-65CHW/F1 | 400V/50Hz | 18 kW | 3.92 | 15 kW |
| ASH-85CHW/F1 | 400V/50Hz | 24 kW | 3.9 | 20 kW |
| ASH-105CHW/F1 | 400V/50Hz | 30 kW | 3.85 | 25 kW |
Acoustics & Environment
Noise Levels
58 dB
Outdoor Sound Power
0 dB
Indoor Sound Power
System Features
Safety Protections
- Over-pressure protection
- Freeze protection
- Programmable thermostats
- Remote monitoring capabilities
- Applications
- Space HeatingSpace CoolingUnderfloor HeatingDomestic Hot Water
Compliance
Regulatory Compliance
- European Energy Standard 811/2013
- ErP Level A++
