Air to Water Heat Pump for Climate Control
This air to water heat pump offers a new energy-saving solution for house heating and cooling. It provides a sustainable and cost-effective method for maintaining indoor climate.

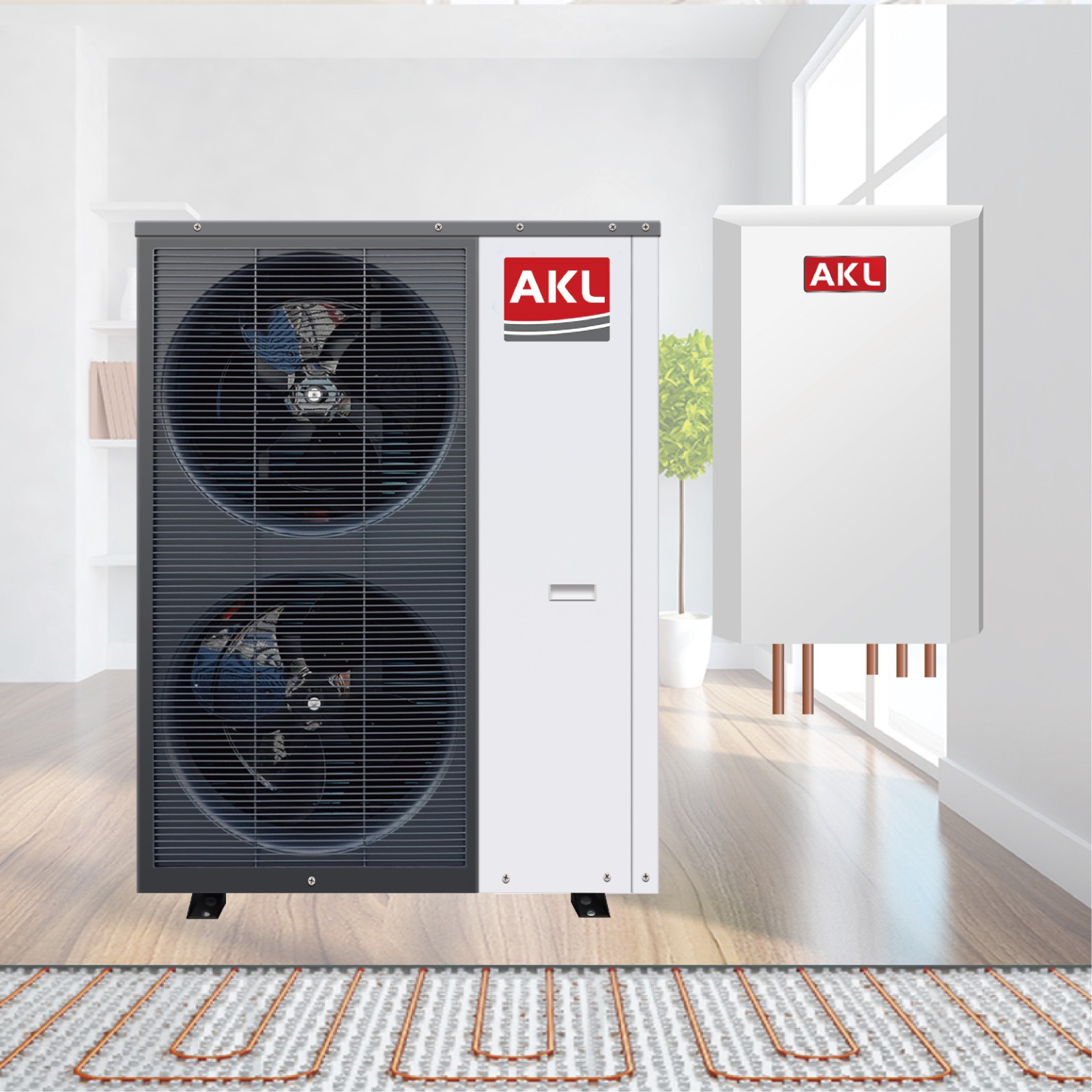

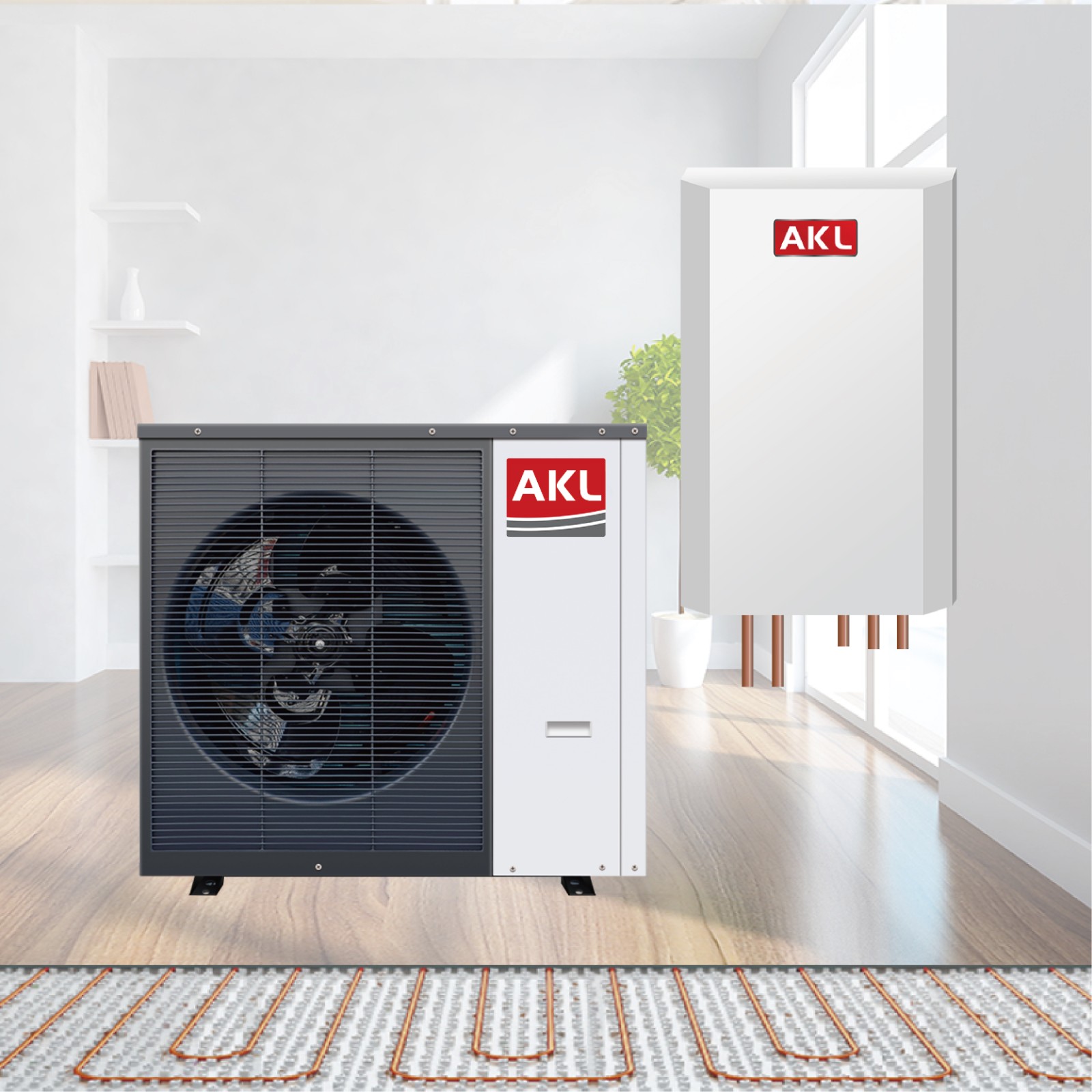

![[copy]air to water heat pump - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyair-to-water-heat-pump%2F2.jpg&w=1536&q=75)
![[copy]air to water heat pump - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyair-to-water-heat-pump%2F1.jpg&w=1536&q=75)
![[copy]air to water heat pump - Image 3](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyair-to-water-heat-pump%2F0.jpg&w=1536&q=75)
Technical Specifications
Overview
Sustainable Climate Control Solution
This high-efficiency air-to-water heat pump provides a sustainable and cost-effective solution for residential and commercial space heating, cooling, and domestic hot water production. By extracting heat from the outside air, the system delivers consistent comfort throughout the year while significantly reducing energy consumption. It is fully compatible with modern distribution systems including underfloor heating, radiators, and fan coil units.
Key Performance Metrics
Performance Highlights
4.3
Maximum SCOP (35°C)
30.2 kW
Max Heating Capacity
25 kW
Max Cooling Capacity

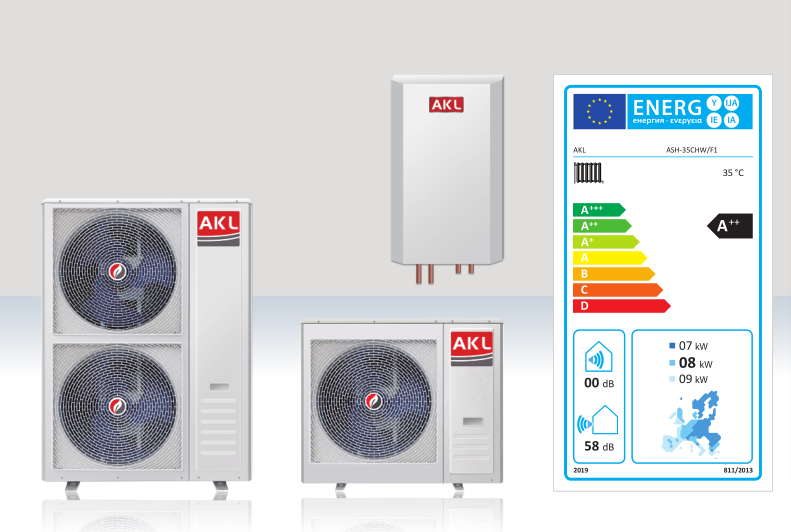

Energy Efficiency
ErP Energy Level
A++A++ (35°C)
- Compliance & Standards
- ENERGRegulation 811/2013European Energy Standards
Technical Specifications
Model Performance Data
| Model | Power Supply | Heating Range (kW) | SCOP (35°C) |
|---|---|---|---|
| ASH-35CHW/F1 | 230V/50Hz | 4.0~10.7 | 4.25 |
| ASH-55CHW/F1 | 230V/50Hz | 5.0~15.8 | 4.3 |
| ASH-65CHW/F1 | 400V/50Hz | 6.0~18.6 | 4.22 |
| ASH-85CHW/F1 | 400V/50Hz | 8.0~24.6 | 4.2 |
| ASH-105CHW/F1 | 400V/50Hz | 9.0~30.2 | 4.18 |
Operational Features
Acoustic Performance
- Outdoor Sound Power: 58-60 dB
- Indoor Sound Level: Virtually silent (00 dB)
- Quiet operation for residential comfort
- Safety & Maintenance
- Over-pressure ProtectionAutomatic DefrostingIntelligent ControlsLow Maintenance
System Compatibility
Supported Applications
- Underfloor Heating Systems
- Radiators
- Fan Coil Units
- Domestic Hot Water Production
