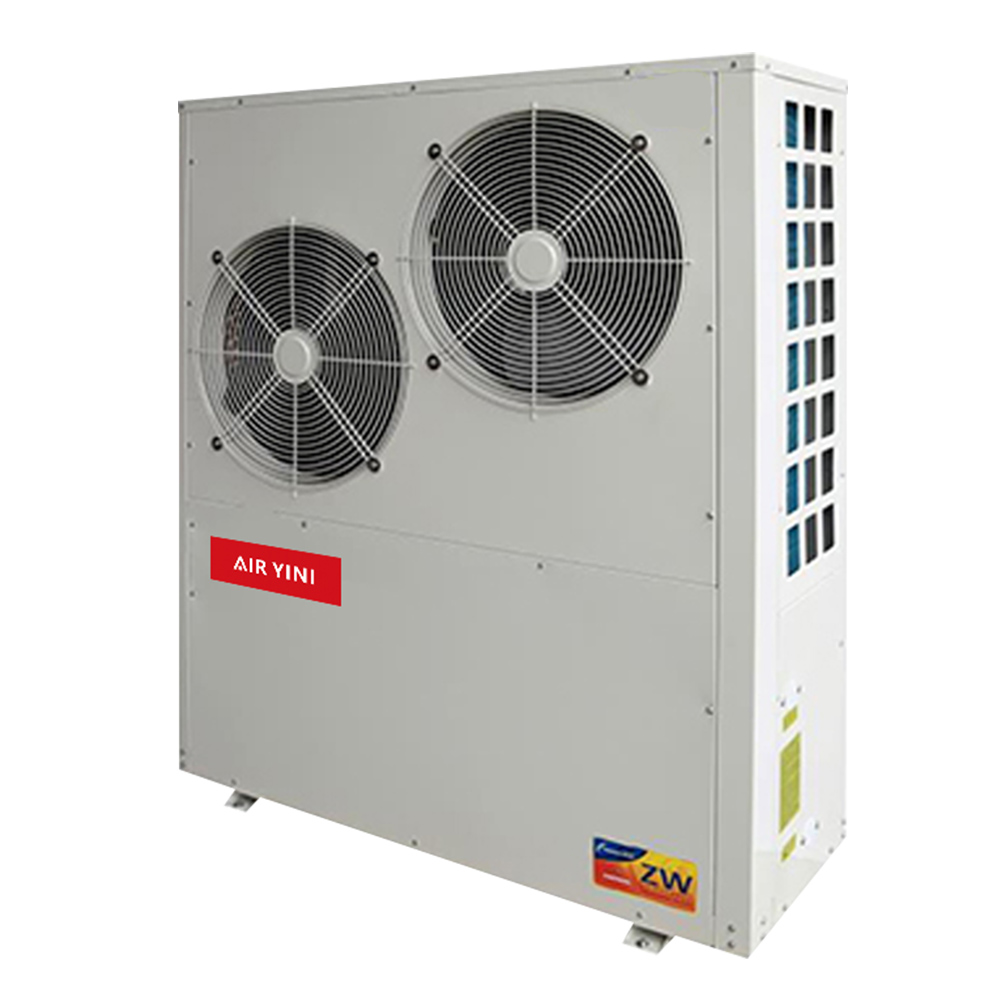

Air Source to Water Heat Pump for Heating and Cooling
This air source to water heat pump provides efficient heating, cooling, and domestic hot water. It can operate in low climate areas down to -35℃ and can be matched with fan coil and floor radiator heating.
Technical Specifications
Overview
High-Performance Low-Temperature Heat Pump

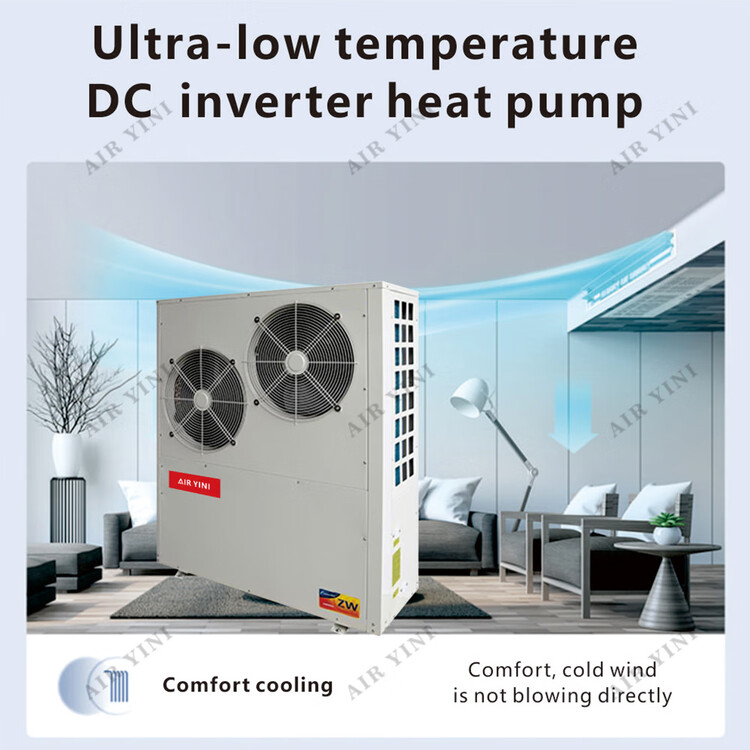

This air-to-water heat pump is engineered for extreme climates, capable of operating efficiently in ambient temperatures as low as -35°C. Utilizing EVI (Enhanced Vapor Injection) compressor technology, it delivers 50%-80% higher heating performance than standard units in cold conditions. This versatile system supports space heating, cooling, and domestic hot water production, making it an ideal solution for villas, hotels, and offices using radiators, floor heating, or fan coil units.
Performance Metrics
Performance Highlights
33 kW
Heating Capacity
4.3
Heating COP
27 kW
Cooling Capacity
2.8
Cooling COP
Technical Specifications
- Model
- YINI-100S-DCN

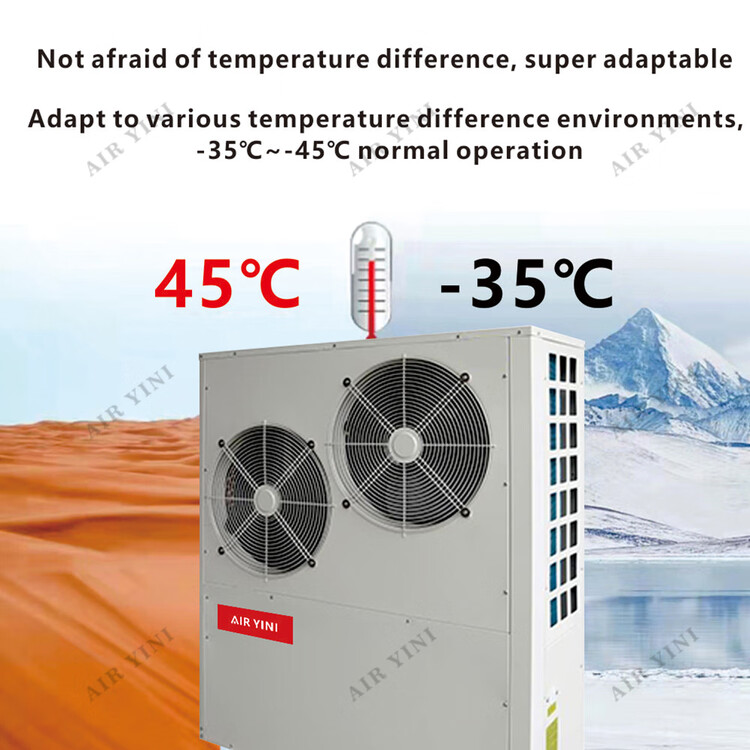

- Ambient Temperature Range
- -35°C to +43°C
- Power Supply
- 380V 3N~50Hz
- Protection Ratings
- IPX4Class I Shock Proof
Advanced Technology
Key Components
- Enhanced Vapor Injection (EVI) Compressor
- High-precision Electronic Expansion Valve (500-level control)

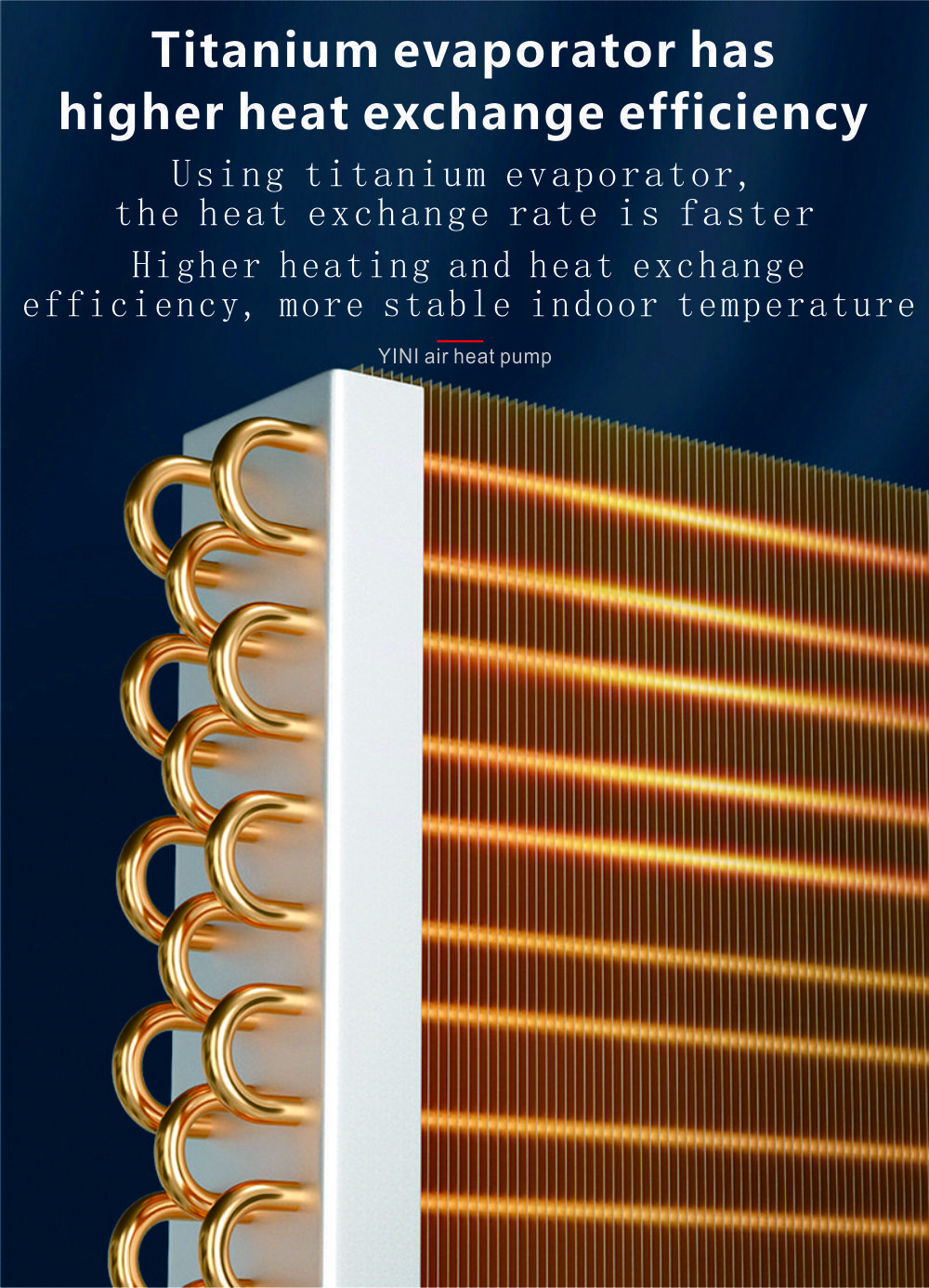

- Titanium Evaporator for high heat exchange efficiency
- Internal thread casing heat exchanger
- Low-noise motor with multi-wing centrifugal wind wheel
Operational Features

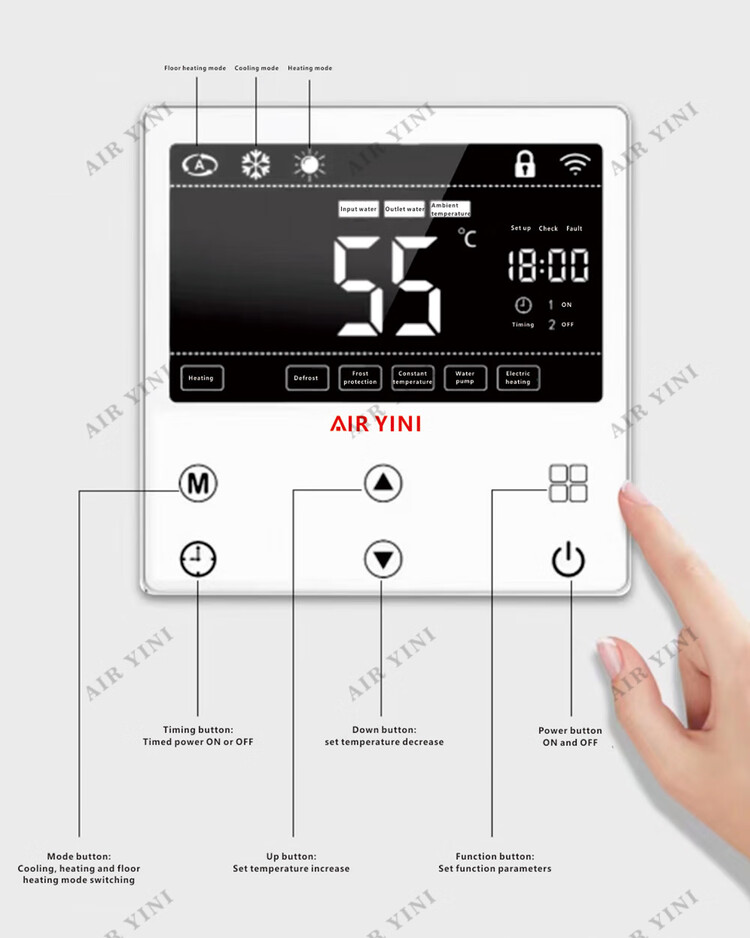

- Smart Functions
- Timed Start/StopAutomatic DefrostMechanical AntifreezeConstant Temperature ControlDC Inverter Frequency Adjustment
Application Guide

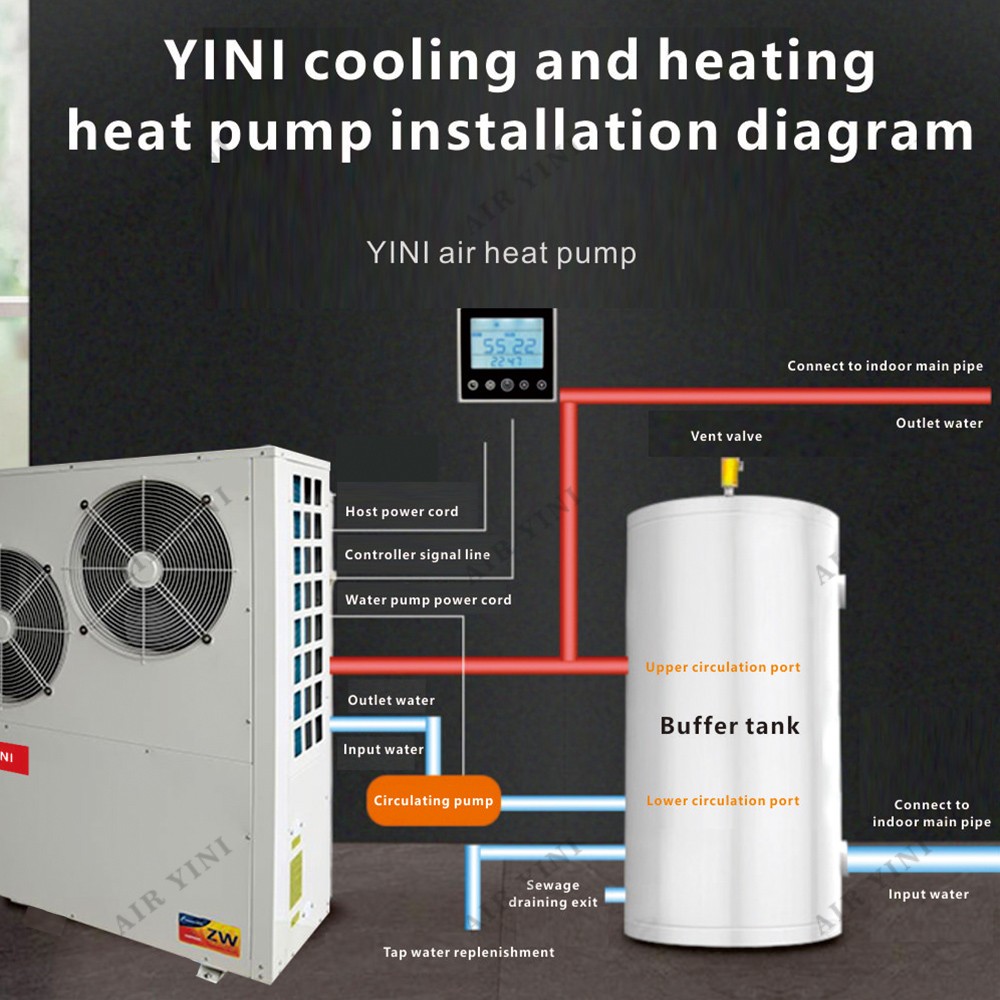

Compatible Heating/Cooling Terminals

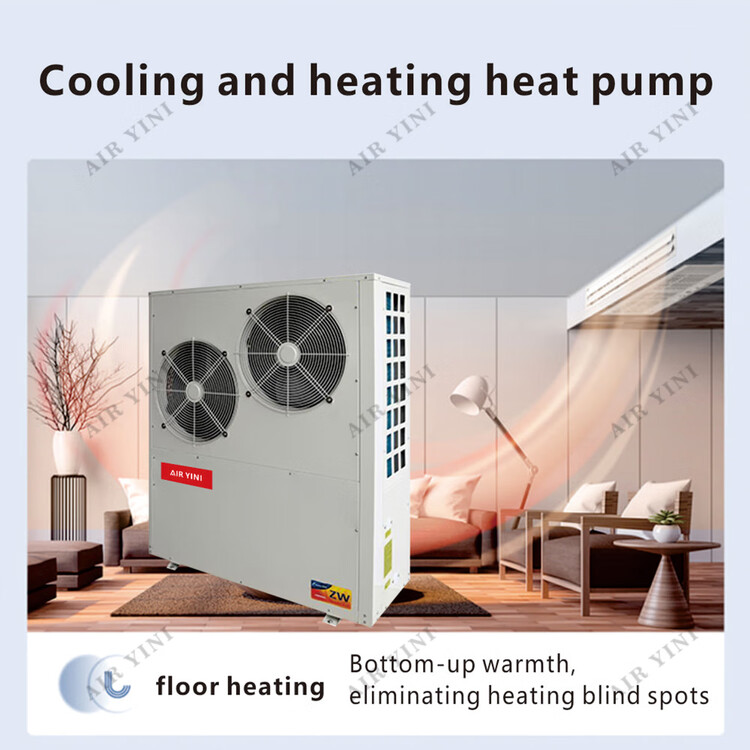

Underfloor HeatingRadiatorsFan Coil UnitsDomestic Hot Water Tanks
Economic Efficiency
Annual Heating Cost Comparison (100㎡ Area)
| Heating System Type | Annual Cost (RMB) |
|---|---|
| Air Source Heat Pump | 2,500 |
| Air Conditioner (No Aux Heat) | 3,500 |
| Gas Wall-Hanging Furnace | 4,500 |
| Electric Wall-Hanging Furnace | 7,500 |
Certifications & Compliance
- Certifications
- CECBErPRoHSSGSSAAGS
