Air-Cooled Modular Heat Pump with Vortex Jet Compressor
This air-cooled modular heat pump is engineered with a fully enclosed vortex jet enthalpy compressor. Its modular design allows for scalable capacity, making it suitable for a wide range of applications.
Technical Specifications
Overview
High-Efficiency Modular Heat Pump

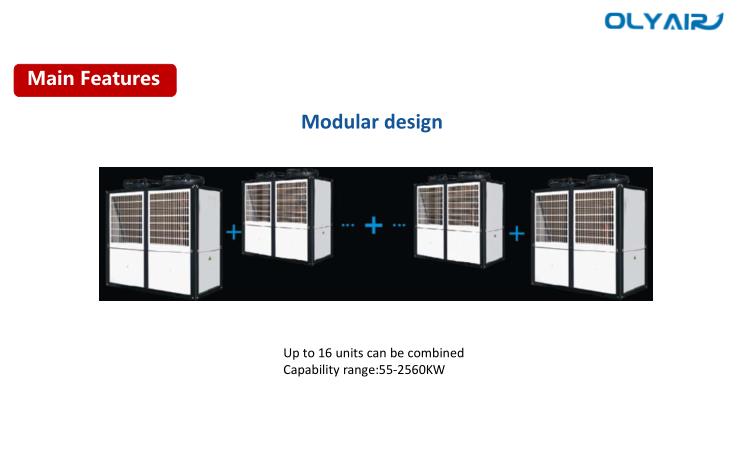

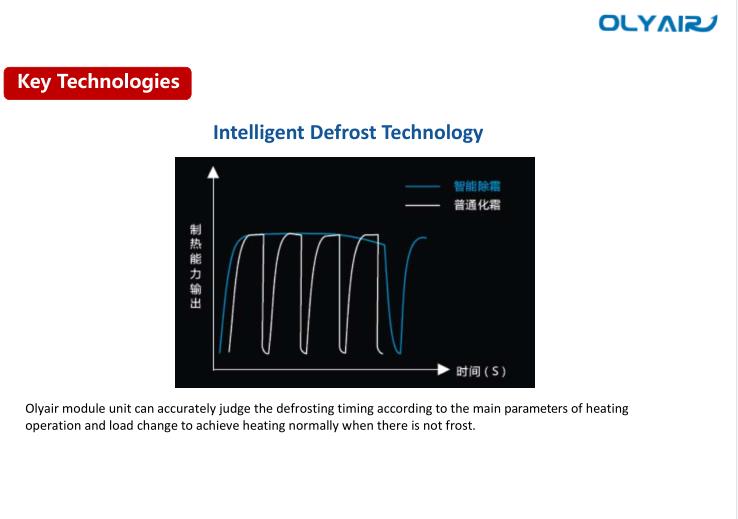

This air-cooled modular heat pump is engineered with a fully enclosed vortex jet enthalpy compressor to provide robust heating and cooling solutions for commercial and industrial applications. Its modular design allows for scalable capacity, supporting up to 16 combined units to meet diverse load requirements ranging from 55kW to 2560kW. Equipped with intelligent defrosting and comprehensive protection systems, this unit ensures stable operation and high energy efficiency even in challenging temperature conditions.
Key Technologies
Core Technologies

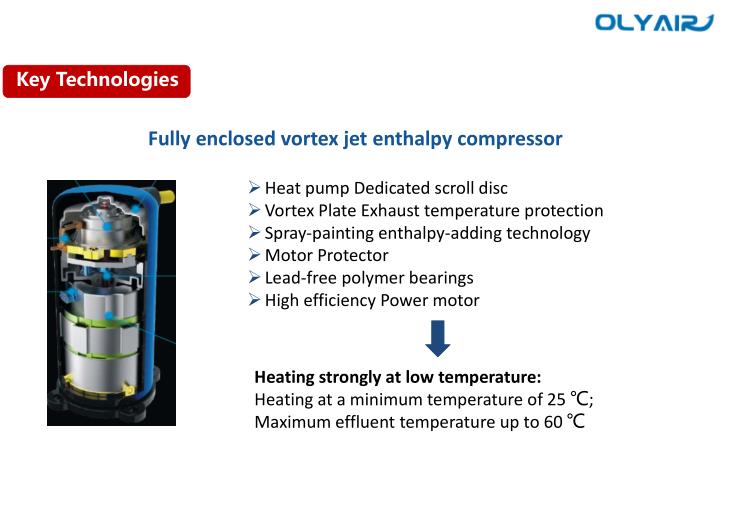

- Fully enclosed vortex jet enthalpy compressor
- Dedicated scroll disc for heat pump operation
- Vortex plate exhaust temperature protection
- Spray-painting enthalpy-adding technology
- Lead-free polymer bearings
- High-efficiency power motor with motor protection
Performance Metrics
Operating Range
-25 °C
Min Ambient Temp
30 °C
Max Ambient Temp
60 °C
Max Effluent Temp
- Total Capacity Range
- 55 - 2560 kW
Safety & Protection
- Safety Protection Systems
- Exhaust ProtectionFluorine Deficiency ProtectionAntifreeze ProtectionHigh/Low Voltage ProtectionTemp Sensor Fault ProtectionOver-current ProtectionCompressor Overload ProtectionWater Temp Limit ProtectionFan Overload ProtectionPhase Protection
Technical Specifications
Model Performance Data
| Model | Heating Cap (7°C) | COP (7°C) | Cooling Cap (35°C) | EER |
|---|---|---|---|---|
| LSRFM38/CN1-DW | 32,000 | 3.6 | 22,000 | 2.43 |
| LSRFM55/BN1-DW | 43,000 | 3.7 | 26,000 | 2.61 |
| LSRFM78/CN1-DW | 78,000 | 3.6 | 60,000 | 3.35 |
| LSRFM160/CN1-DW | 160,000 | 3.64 | 150,000 | 3.42 |
