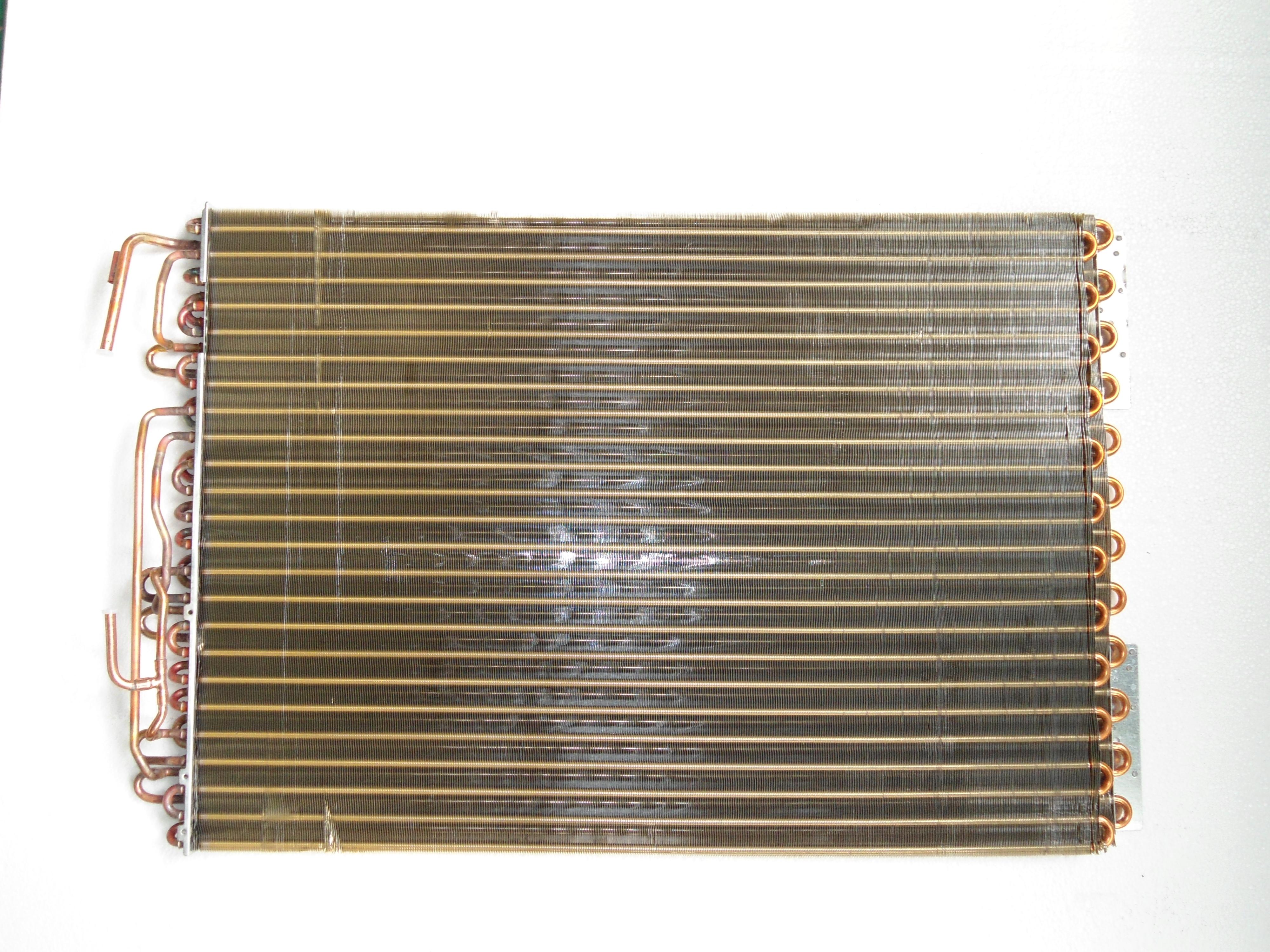

Air Conditioning Heat Exchanger
This high-efficiency heat exchanger is designed for air conditioning and ventilation systems. It features copper tubes and aluminum fins for optimal thermal conductivity.
Technical Specifications
Overview
High-Efficiency Heat Exchanger
This high-performance heat exchanger is precision-engineered for air conditioning and ventilation systems, utilizing premium copper tubing and aluminum fins for superior thermal conductivity. Designed to withstand demanding pressures and temperatures, it ensures reliable, long-term operation in various HVAC applications. Its robust construction, featuring options for hydrophilic and antibacterial coatings, maximizes heat transfer efficiency and energy performance.
Materials
- Tube Material
- Copper (inner smooth or inner grooved)
- Fin Material
- Bare AluminumHydrophilic Al FoilGreen Antibacterial Al FoilSilica Antibacterial Al Foil
- Side Plate Material
- Galvanized SteelAluminumStainless Steel
Technical Specifications
Detailed Technical Standards
| Tube OD | Hole Distance | Fin Types | Max Length |
|---|---|---|---|
| Ø5 | 19.5x11.6 | Slit fin | 1050mm |
| Ø5 | 19.05x16.5 | Flat, Wave | 1500mm |
| Ø7 | 21x12.7 | Wave, Slit, Louver | 1800mm |
| Ø7 | 21x18.19 | Wave | 1500mm |
| Ø7 | 21x22 | Flat, Butterfly | 1200mm |
| Ø7 | 25x21.65 | Flat, Wave | 1200mm |
| Ø7.94 | 22x19.05 | Flat, Slit, Wave | 1700mm |
| Ø9.52 | 25.4x22 | Flat | 1300mm |
| Ø9.52 | 25x21.65 | Flat, Slit, Wave | 2500mm |
| Ø12.7 | 27.5x31.65 | Double wave | 1700mm |
