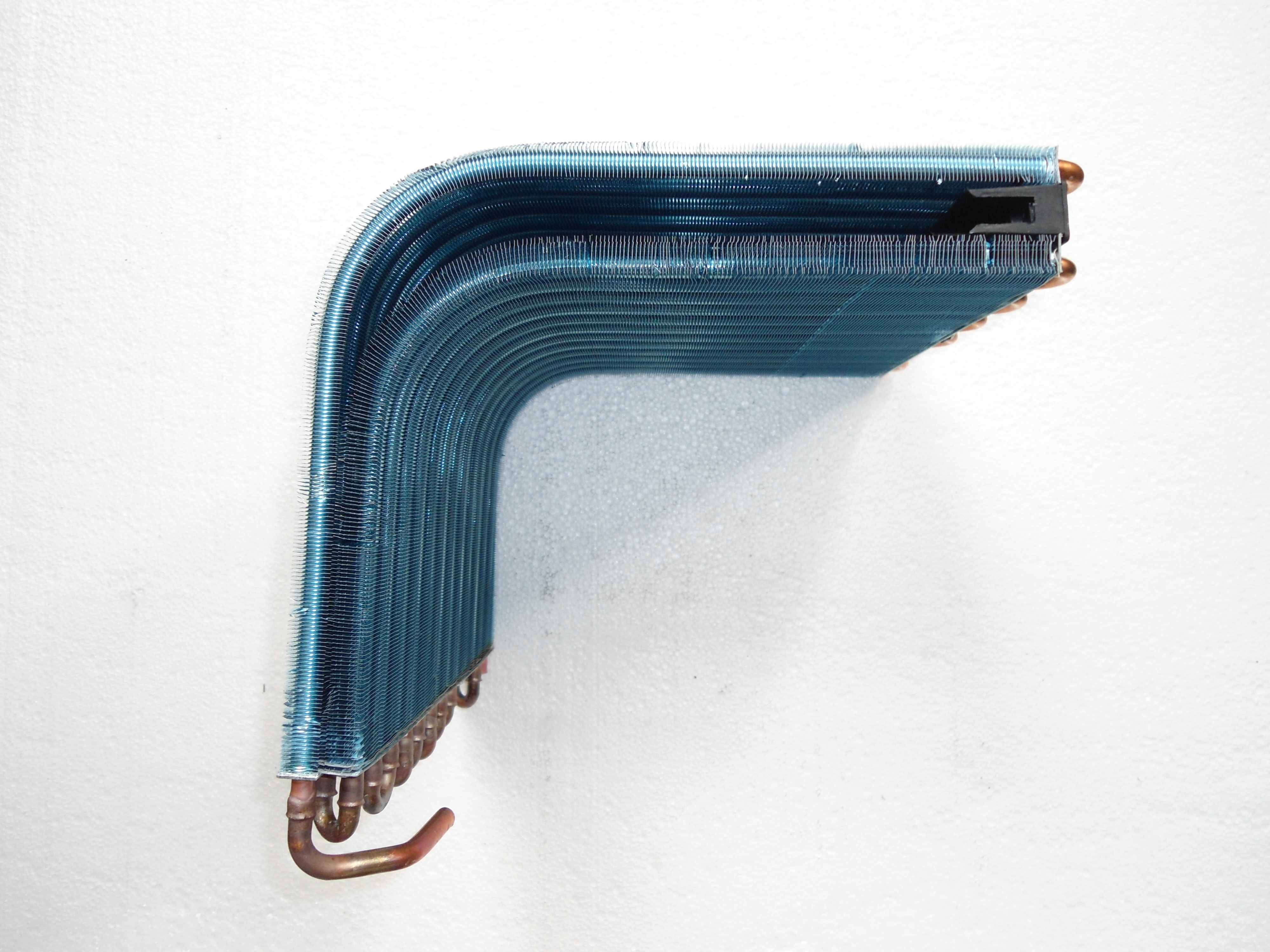

Air Conditioning Condenser Coil
This high-efficiency condenser coil is designed for air conditioning and refrigeration systems. It features aluminum fins and copper tubing for optimal heat transfer and efficient refrigerant flow.
Technical Specifications
Overview
High-Efficiency Condenser Coil
This high-performance condenser coil is engineered for optimal heat transfer in air conditioning and refrigeration systems. Constructed with durable copper tubing and high-quality aluminum fins, it is designed to maximize thermal efficiency while maintaining a compact footprint. The robust build ensures excellent corrosion resistance and longevity, making it an ideal solution for residential, commercial, and industrial HVAC applications.
Materials
- Tube Material
- Copper (inner smooth or inner grooved)
- Tube Wall Thickness
- 0.32 - 0.36 mm
- Fin Material
- Bare or Hydrophilic Aluminum Foil (Green antibacterial or Silica antibacterial)
- Side Plate Material
- Galvanized Steel, Aluminum, or Stainless Steel (0.8 - 1.5 mm thickness)
Technical Specifications
Detailed Technical Specifications
| Tube Ø (mm) | Hole Distance (mm) | Fin Types | Max Length (mm) |
|---|---|---|---|
| 5 | 19.5 x 11.6 | Slit fin | 1,050 |
| 5 | 19.05 x 16.5 | Flat, Wave | 1,500 |
| 7 | 21 x 12.7 | Wave, Slit, Louver | 1,800 |
| 7 | 21 x 18.19 | Wave | 1,500 |
| 7 | 21 x 22 | Flat, Butterfly | 1,200 |
| 7 | 25 x 21.65 | Flat, Wave | 1,200 |
| 7.94 | 22 x 19.05 | Flat, Slit, Wave | 1,700 |
| 9.52 | 25.4 x 22 | Flat | 1,300 |
| 9.52 | 25 x 21.65 | Flat, Slit, Wave | 2,500 |
| 12.7 | 27.5 x 31.65 | Double wave | 1,700 |
- Fin Pitch Range
- 1.2 - 8.5 mm (model dependent)
