Air Chamber with Brushless Motor and Plastic Impellers
This air chamber features a brushless motor and plastic impellers. It is designed for use in hood products and can be customized.
Technical Specifications
Product Overview
High-Performance Air Chambers

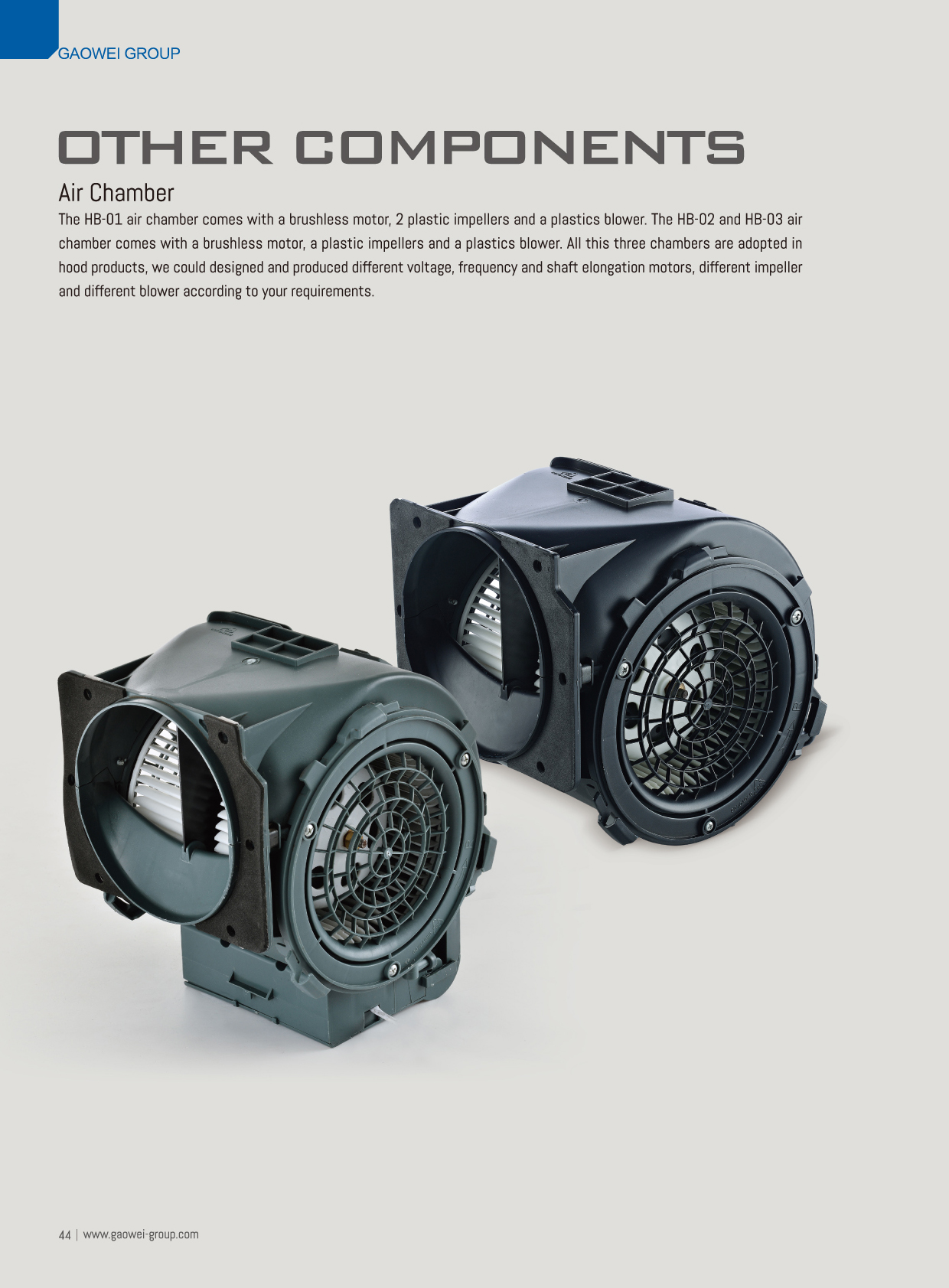

These air chambers are specifically engineered for integration into range hood products, featuring reliable brushless motor technology. The lineup includes models HB-01, HB-02, and HB-03, each equipped with precision-molded plastic impellers and a robust plastics blower. We offer full customization capabilities, allowing for adjustments in voltage, frequency, shaft elongation, and blower configurations to meet your specific application requirements.
Technical Specifications
Performance Parameters
| Model | Voltage (V) | Freq (Hz) | Current (A) | Power (W) | Speed (RPM) |
|---|---|---|---|---|---|
| HB-01 | 220-240 | 50 | 1.29 | 185 | 2,119 |
| HB-02 | 220-240 | 50 | 1.15 | 163 | 1,856 |
| HB-02 (Alt) | 220-240 | 50 | 0.8 | 130 | 2,400 |
Dimensions
| Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| HB-01 | 275 | 200 | 230 |
| HB-02 | 275 | 200 | 230 |
| HB-02 (Alt) | 230 | 190 | 170 |
- Application
- Range HoodsVentilation Systems
- Insulation Level
- F
