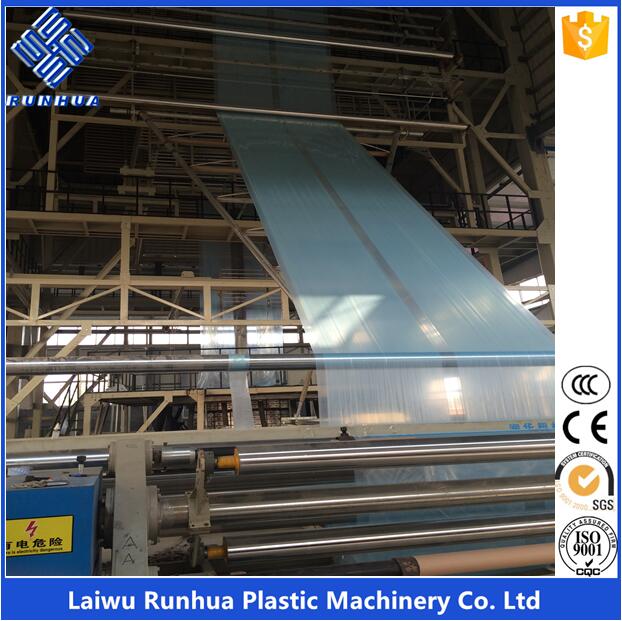

Agricultural PE Film Blowing Machine with Gusset and Collapser
This machine produces polyethylene film for agricultural applications. It features a gusset and collapser system and supports film widths from 3 to 24 meters and thicknesses from 0.05 to 0.2mm.
Technical Specifications
Overview
High-Performance Agricultural Film Production
This advanced agricultural PE film blowing machine is engineered for the high-volume production of wide-format polyethylene films. Featuring an integrated gusset and collapser system, it provides precise control over film thickness, width, and properties, making it ideal for creating specialized greenhouse films. The robust construction ensures reliable, continuous operation in demanding industrial environments while optimizing downstream processing efficiency.
Technical Specifications
Film Functionalities
Anti-UVAnti-foggingAnti-dripping
- Unfolding Width Range
- 3 - 24 meters
- Film Thickness
- 0.2 mm
- Co-extrusion Layers
- 5
- Compatible Materials
- PELDPELLDPEHDPEmPEEVAMaster BatchRecycled Materials
Machine Components
System Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting soft tube)

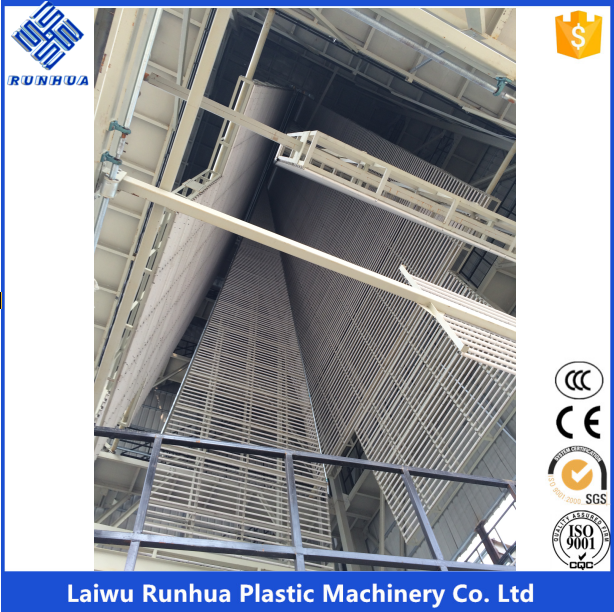

- Herringbone, plugboard and bubble cage
- First haul-off device
- Second haul-off device
- Rewinder device
- IBC inner cooling of film bubble
- Inverted triangle fold device
Performance Metrics
Traction & Winding Speed
30 m/min
Max Speed
Model Specifications
| Model | Max Width (mm) | Die Diameter (mm) |
|---|---|---|
| 3FM3200 | 6,000 | 1,000 |
| 3FM2800 | 8,000 | 1,100 |
| 3FM3000 | 10,000 | 1,450 |
| 3FM3500 | 12,000 | 1,600 |
| 3FM4500 | 14,000 | 1,900 |
| 3FM5000 | 16,000 | 2,300 |
