Agricultural Mulch Film Blowing Machine
This machine is designed for producing agricultural mulch film. It features multi-layer co-extrusion and processes various materials including LDPE, LLDPE, and biodegradable materials.
Technical Specifications
Overview

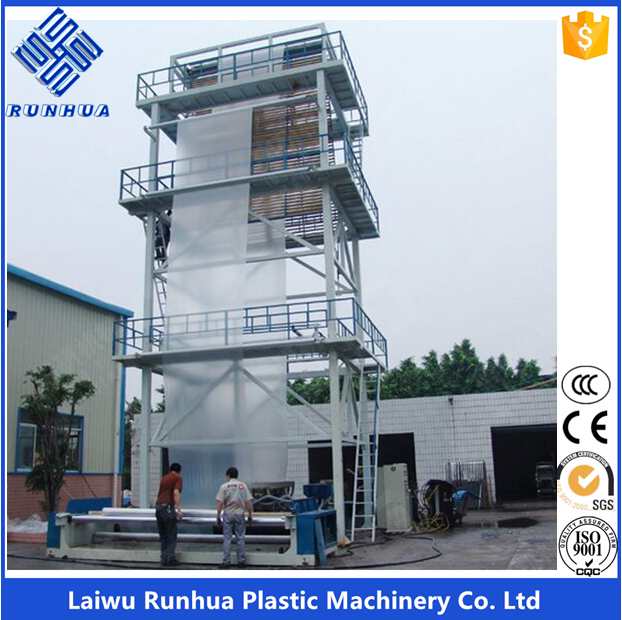

Agricultural Mulch Film Blowing Line
This high-performance mulch film blowing line is engineered for the efficient production of agricultural films ranging from 0.5 to 3 meters in width. Utilizing advanced central feeding spiral channel technology and wavy screw extruders, it ensures stable output, low energy consumption, and superior film quality. The system is compatible with various materials, including LLDPE, LDPE, biodegradable compounds, and recycled masterbatches, making it a versatile solution for modern agricultural film manufacturing.
Technical Specifications
Included Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting soft tube)
- Herringbone and sizing cage
- Traction device

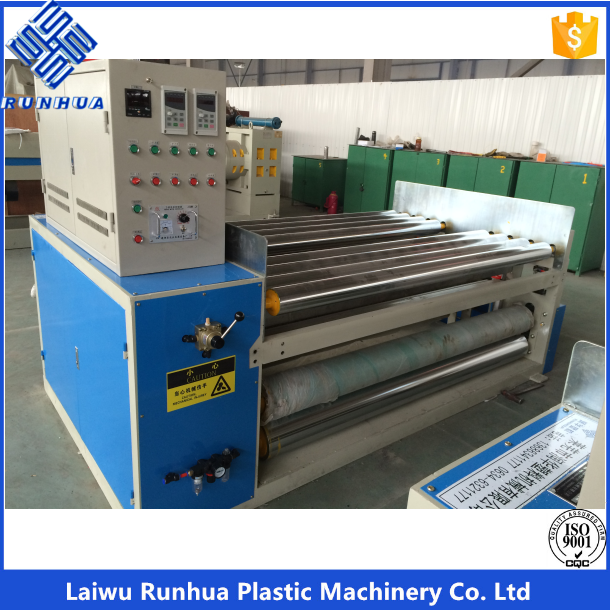

- Rewinder device
- Matched spare parts set
Key Performance Metrics
0.5 m
Min Film Width
3 m
Max Film Width
30
Screw L/D Ratio
- Compatible Materials
- LLDPELDPEBiodegradable MaterialsMaster BatchRecycled Materials
Model Comparison
Model Specifications
| Model | Max Width (mm) | Output (kg/h) | Screw Dia (mm) |
|---|---|---|---|
| LD1100 | 1,000 | 50 | 45 |
| LD1300 | 1,200 | 55 | 50 |
| PC-65 | 1,500 | 210 | 55/65 |
| LD2200 | 2,000 | 130 | 65 |
| LD2500 | 2,300 | 180 | 75 |
| LD2600 | 2,500 | 220 | 75 |
| LD2800 | 2,600 | 240 | 90 |
Certifications
Certifications
CEISO 9001CQCCCC
