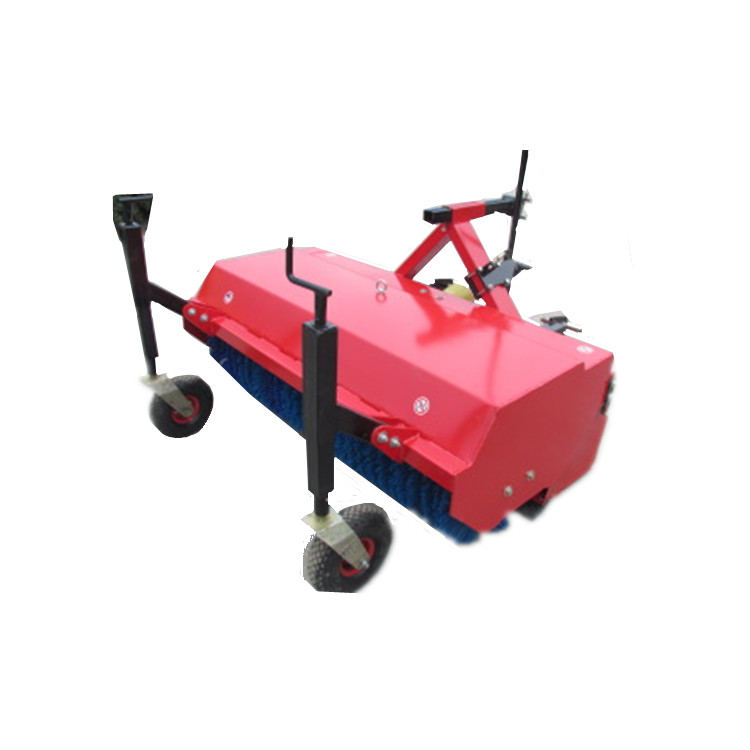

Agricultural Machinery Sweeper
This sweeper is designed for efficient cleaning and maintenance of various surfaces. Its brush system effectively removes debris, leaves, and other unwanted materials.
Technical Specifications
Product Overview
Versatile Agricultural Sweeper
This agricultural sweeper is designed for efficient cleaning and maintenance of various surfaces, featuring a robust construction with a durable finish. It is equipped with adjustable wheels for precise height control and excellent maneuverability in field conditions. Engineered for easy attachment to agricultural machinery, this unit provides a versatile solution for essential soil preparation and cultivation tasks.
Technical Specifications
Performance Metrics

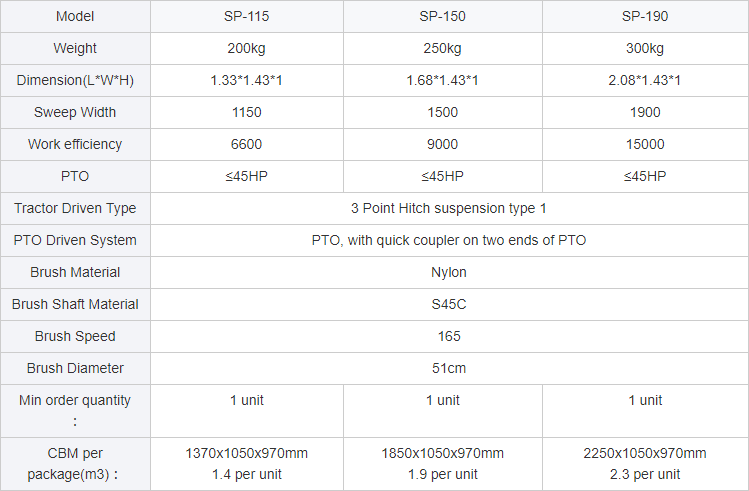

| Model | Weight | Sweep Width | Efficiency |
|---|---|---|---|
| SP-115 | 200kg | 1150mm | 6600 |
| SP-150 | 250kg | 1500mm | 9000 |
| SP-190 | 300kg | 1900mm | 15000 |
Core Features
- Brush Material: Nylon
- Brush Shaft Material: S45C
- Brush Diameter: 51cm
- Brush Speed: 165 RPM
- PTO Driven System with quick coupler
Compatibility & Logistics
Logistics Data
| Model | Package Dim (mm) | Volume (m3) |
|---|---|---|
| SP-115 | 1370x1050x970 | 1.4 |
| SP-150 | 1850x1050x970 | 1.9 |
| SP-190 | 2250x1050x970 | 2.3 |
- Tractor Compatibility
- Tractor ≤45HP3-Point Hitch Suspension Type 1
