Adjustable Telescopic TV Ceiling Mount
This adjustable TV ceiling mount is made from high gauge cold rolled steel. It features adjustable length and tilt, with an optional security lock.
Technical Specifications
Overview
Professional Telescopic TV Ceiling Mount

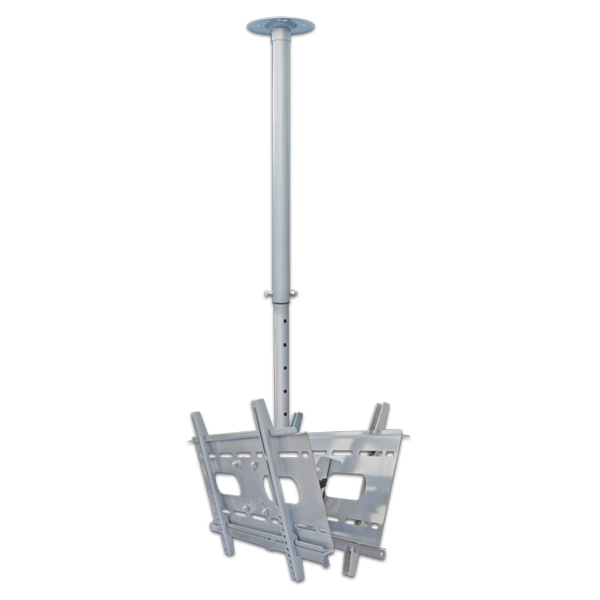

This adjustable telescopic ceiling mount is engineered for screens ranging from 23'' to 37'', providing a secure and versatile solution for commercial or residential installations. Constructed from high-gauge cold-rolled steel, it features a toolless tilt mechanism and 360° rotation for optimal viewing angles. The integrated cable management and optional security lock make it an ideal choice for public spaces where both aesthetics and theft prevention are priorities.
Key Performance Metrics
Key Performance Metrics
56 kg
Max Load Capacity
360 °
Rotation Range
806 mm
Max Extension

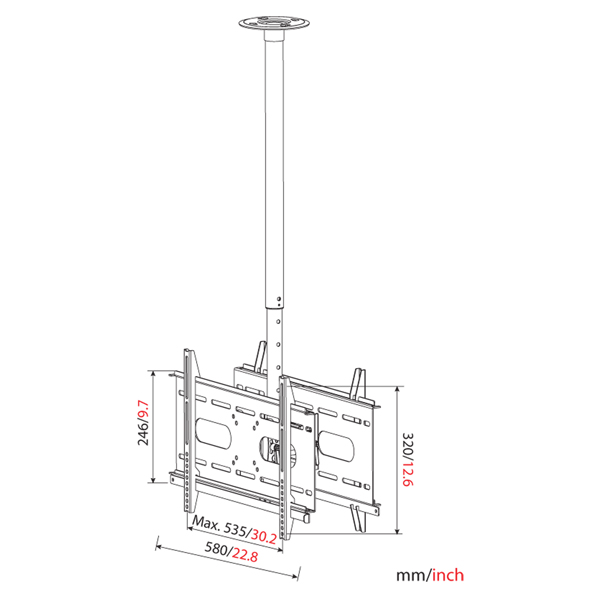

Technical Specifications
- Screen Size Compatibility
- 23'' - 37''
- Max VESA Pattern
- 500 × 300 mm
- Material
- High gauge cold rolled steel
Adjustability
- Tilt Range
- -10° to +5°
- Adjustable Length
- 477mm - 806mm
- Adjustment Features
- Toolless Tilt360° RotationTelescopic Height AdjustmentLockable Tilt Setting
Logistics & Packaging
Packaging Information
| Metric | Value |
|---|---|
| Quantity per Carton | 2 pcs |
| Carton Size | 63.5 x 25.5 x 37.5 cm |
| Net Weight (NW) | 11 kg |
| Gross Weight (GW) | 13.6 kg |
Container Loading Capacity
- 20' Container: 930 pcs (465 cartons)
- 40' Container: 1860 pcs (930 cartons)
Installation & Security
Security & Hardware
Optional Security LockUniversal Hardware Pack IncludedAnti-Theft Guard
- Available Finishes
- Powder Coat SilverBlack Finish
