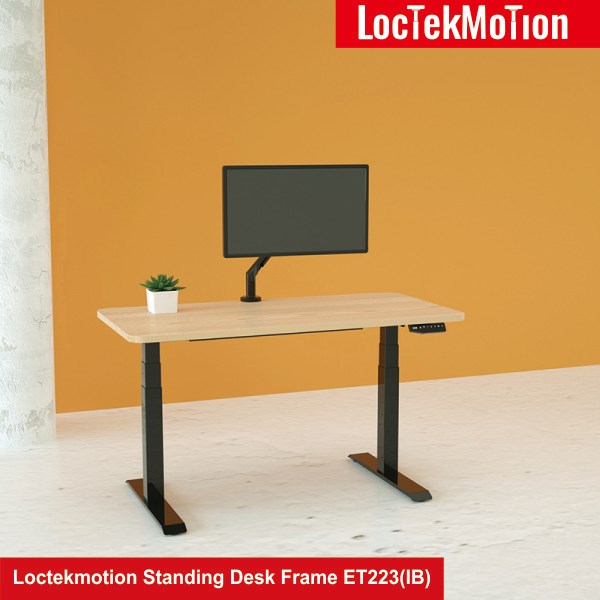

Adjustable Height Desk Frame
This adjustable height desk frame allows users to easily switch between sitting and standing positions. It features a dual-motor system for smooth and quiet height adjustments and is compatible with a variety of desktop sizes.
Technical Specifications
Overview
Ergonomic Sit-Stand Flexibility
This dual-motor electric height adjustable desk frame is engineered to promote healthy movement by enabling effortless transitions between sitting and standing. Featuring a modern holeless column design, it blends seamlessly into any professional or home office environment. The frame is built for efficiency, incorporating a maintenance-friendly design that allows for servicing without the need to remove the desktop.
Performance Metrics
Key Performance Indicators
70 kg
Load Capacity
80 mm/s
Max Speed
50 dB
Noise Level
Dimensions & Compatibility
Adjustment Ranges
| Parameter | Range (Imperial) | Range (Metric) |
|---|---|---|
| Height | 8'' - 48.4'' | 580 - 1230mm |
| Width | 43.3'' - 70.8'' | 1100 - 1900mm |
- Recommended Desktop Size
- Width: 1200-2000mm (47.2”-78.7”); Depth: 600-800mm (23.6” – 31.5”)
Technical Specifications
Available Colors
WhiteBlackSilver Grey
- Operation Type
- Electric
- Standby Power Consumption
- 0.5 W
Features
Safety & Intelligent Features
- Anti-Collision Safety System
- Built-in Anti-Pinch Sensor
- Holeless Column Design
- Easy Maintenance Access
- Connectivity & Expansion
- Dual DC33V OutputOptional USB ChargingOptional Wireless ChargingDouble RJ45 InterfacesBluetooth Dongle Support
