Adjustable Brass Safety Valve with Throttle
This safety valve incorporates a throttling feature to regulate pressure while maintaining safety functionality. Constructed from brass with an electroplated surface, it is designed for durability and aesthetic appeal.
Technical Specifications
Product Overview
Dual-Function Throttle Safety Valve
This innovative safety valve integrates a precision throttling function with reliable pressure relief capabilities to ensure system safety and efficiency. Featuring a unique patented design, it utilizes end-face sealing to eliminate the need for thread seal tape, reducing installation time and blockage risks. Constructed from high-temperature forged brass with an electroplated finish, this valve is engineered for durability, pressure resistance, and an aesthetically professional appearance.

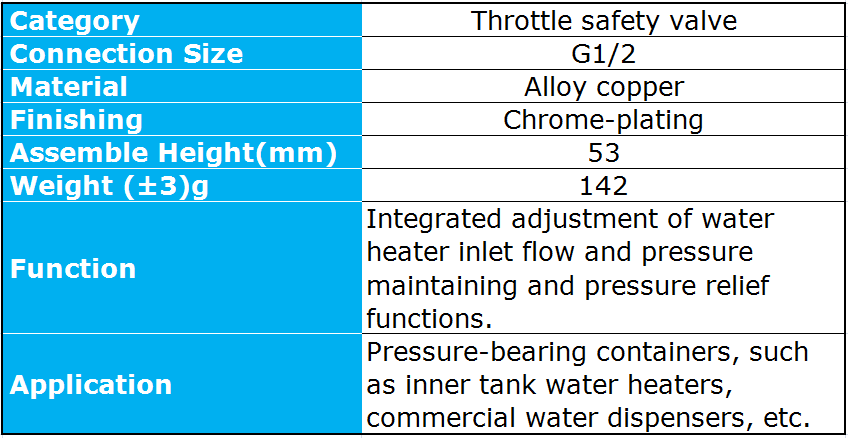

Technical Specifications
Pressure Rating
0.8 MPa
Max Pressure
Physical Dimensions
53 mm
Assembly Height
142 g
Weight
- Material & Finish
- BrassAlloy CopperChrome-plated
- Connection Size
- G1/2
Key Features
Key Advantages
- Integrated throttling and safety relief
- Handle screw fixed for stability
- End-face sealing (no tape required)
- Internal row design prevents howling
- High-temperature forging process
- Pressure-proof and explosion-proof
Application
Suitable Applications
- Inner tank water heaters
- Commercial water dispensers
- Pressure-bearing containers
- HVAC&R systems
