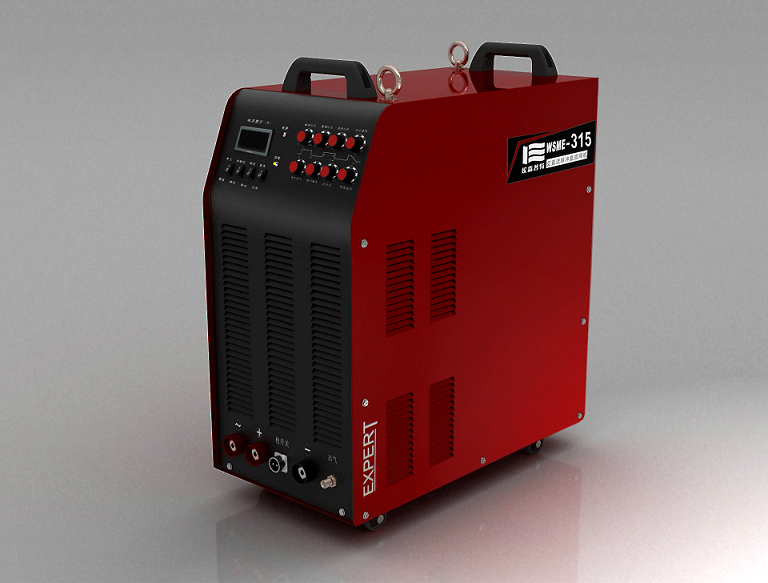

AC/DC TIG Welding Machine
This AC/DC TIG welding machine supports both AC and DC TIG welding processes, making it suitable for various materials, including aluminum and steel. Inverter technology ensures stable and precise welding performance, with adjustable parameters for optimized control.
Technical Specifications
Overview
Professional AC/DC Inverter TIG Welding Series
This industrial-grade welding series offers versatile AC/DC TIG and MMA capabilities, engineered for precision welding of aluminum, carbon steel, and stainless steel. Featuring advanced inverter technology, these machines provide a stable arc with high-efficiency output and a robust 60% duty cycle. The intuitive design allows for fine-tuned control over pulse frequency, cleaning width, and slope times to ensure superior weld quality in heavy-duty applications.
Key Performance Metrics
Performance Overview
60 %
Duty Cycle
85 %
Efficiency
0.93
Power Factor
Technical Specifications
Model Specifications
| Feature | WSME-315 | WSME-500 |
|---|---|---|
| Rated Input Capacity | 9.3 | 18.2 |
| Input Current (A) | 14.4 | 29.7 |
| Output Range (A) | 20-315 | 20-500 |
| No-load Voltage (V) | 65 | 78 |
Operating Features
Compatible Materials
- Aluminum
- Aluminum Alloys
- Carbon Steel
- Stainless Steel
- Supported Modes
- AC TIGDC TIGMMAPulse WeldingConstant Current
Electrical and Safety
Safety Standards
Insulation Class FIP21 Protection
- Input Voltage
- AC380V±10% / 50Hz
