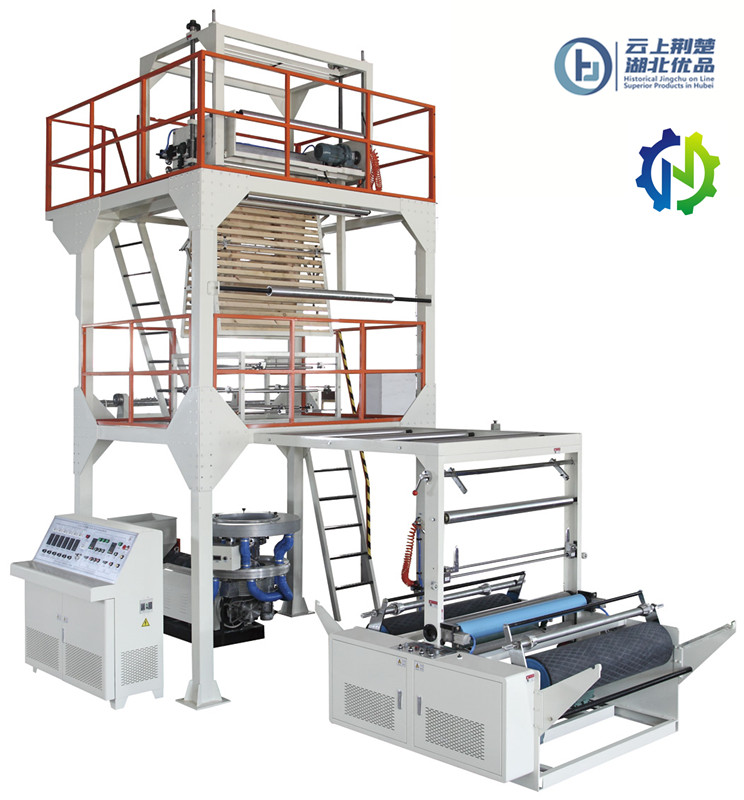

ABA Three-Layer Co-Extrusion Film Blowing Machine
This film blowing machine utilizes ABA co-extrusion to produce plastic films with enhanced strength. It features a three-layer system and precise temperature control for optimal material processing.
Technical Specifications
Product Overview
High-Efficiency ABA Film Blowing Solution
This ABA three-layer co-extrusion film blowing machine is designed to deliver superior strength and performance for industrial film production. Specializing in durable materials like HDPE and LDPE, the unit is ideal for creating robust agricultural films and courier bags. With its reliable three-layer structure and optimized processing capabilities, it offers an efficient solution for businesses requiring high-quality, long-lasting plastic film products.
Technical Specifications
Production Output
75 kg/h
Maximum Output
- Overall Dimensions
- 6800 x 2800 x 5600 mm
- Total Power Consumption
- 50 kw
Processing Capabilities
- Film Width
- 800-1200 mm
- LDPE Thickness Range
- 0.012-0.3 mm
- Compatible Materials
- HDPELDPERecycled Materials
Construction
Screw Configuration
| Parameter | Value |
|---|---|
| Screw Diameter | 65mm |
| L/D Ratio | 28:1 |
| Material | 38GrMoAl (Nitride Treated) |
Applications
Primary Applications
- Courier bags
- Agricultural film
- Packaging film
- Industrial film
