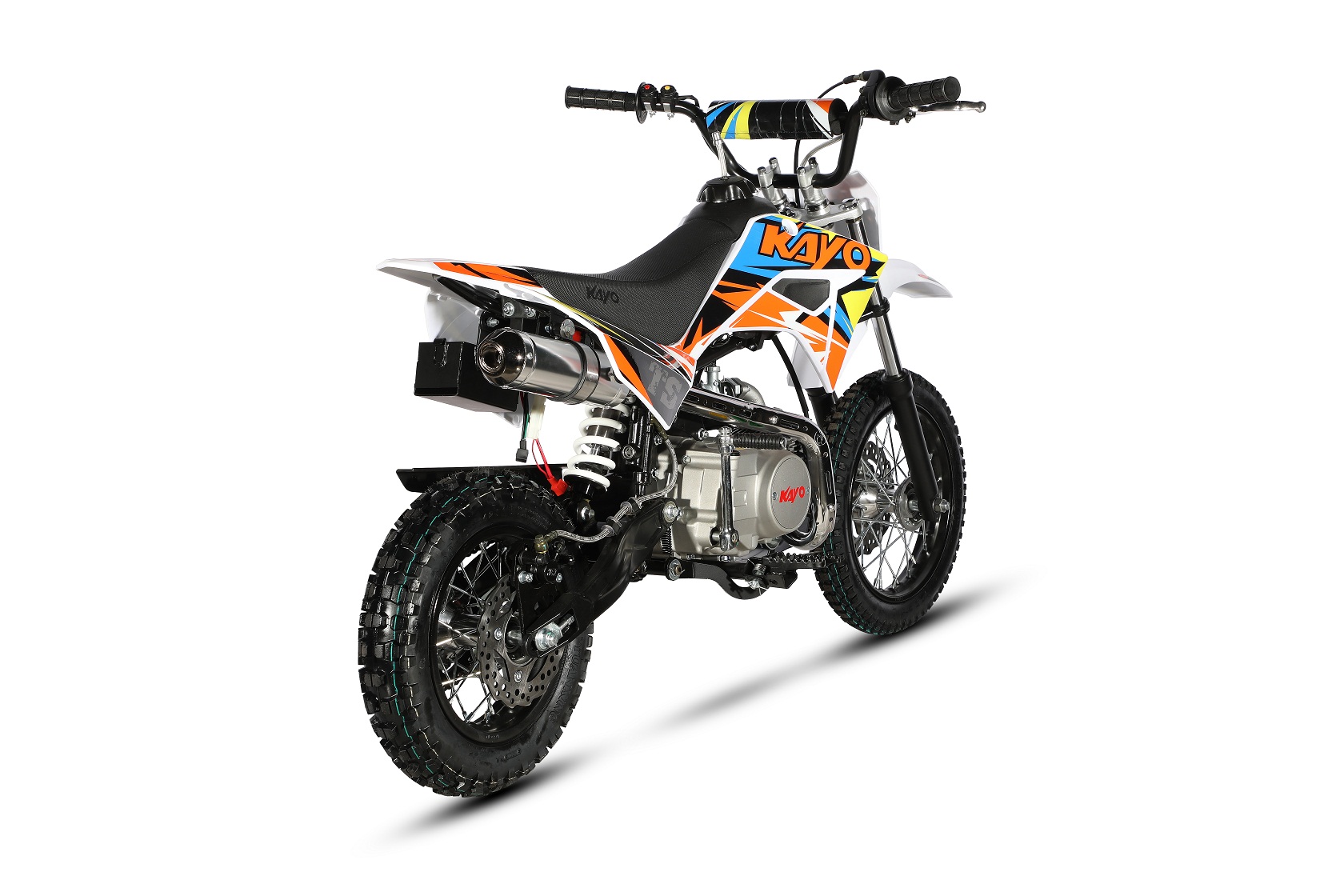

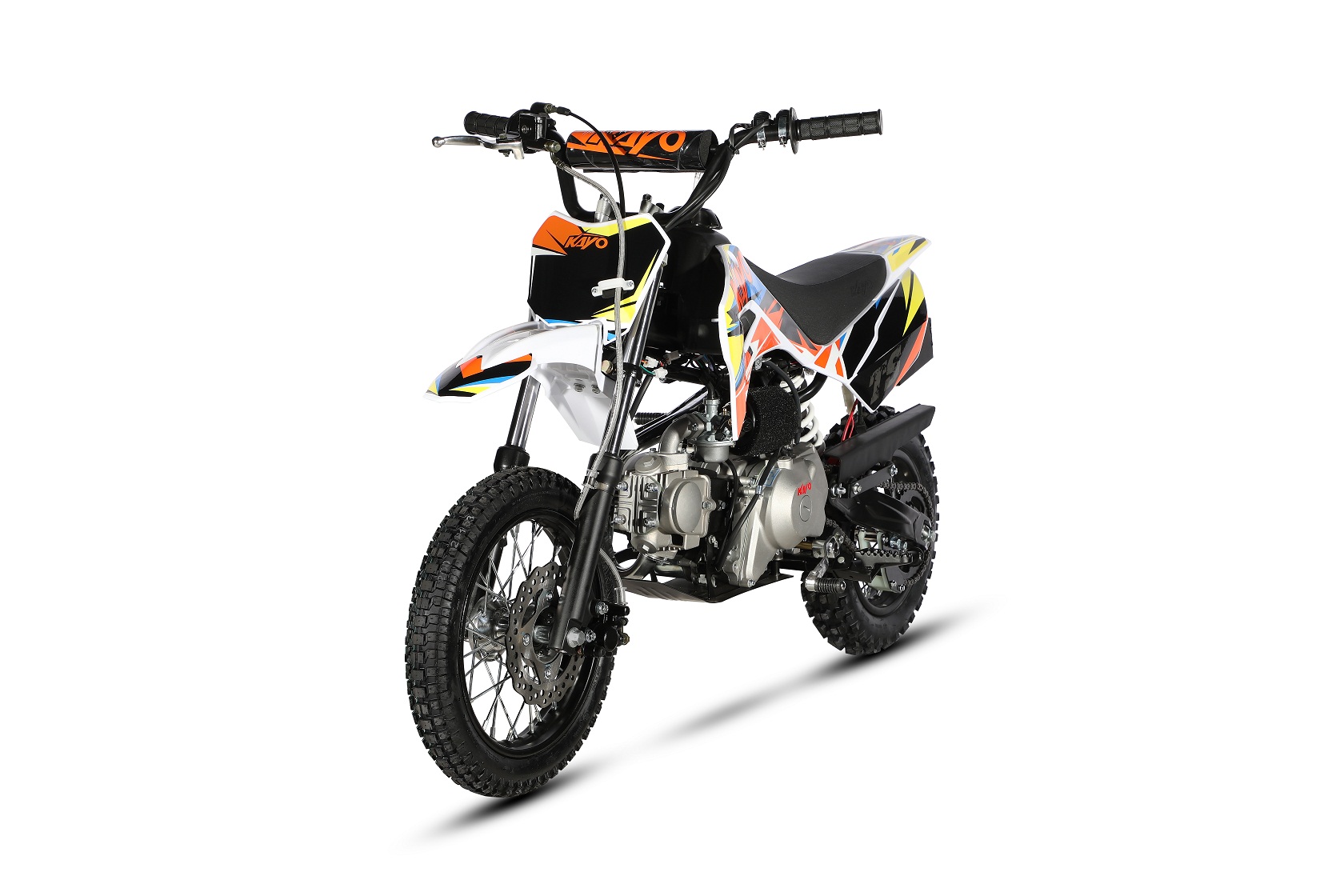

86cc Air-Cooled Youth Dirt Bike
This 86cc dirt bike is designed for young riders. It features a four-stroke, air-cooled engine and a durable steel frame.
Technical Specifications
Overview
Designed for Youth Riders
This 86cc air-cooled youth dirt bike is engineered for agility, safety, and durability, making it an excellent choice for young beginners developing their off-road skills. It features a reliable four-stroke engine paired with a semi-automatic transmission and user-friendly controls for a smooth riding experience. With a sturdy steel frame, responsive disc brakes, and comfortable ergonomics, it balances performance with ease of handling.
Engine Performance
Engine Performance
86 cc
Displacement
4 kW
Max Power
5.5 N.m
Max Torque
Engine Technical Details
| Feature | Specification |
|---|---|
| Type | 4-stroke, Air-cooled |
| Compression Ratio | 8.8:1 |
| Bore x Stroke | 47mm x 49.5mm |
| Starting | Kick |
| Ignition | CDI |
Chassis & Suspension
Chassis Specifications
- Professional steel frame
- 560mm Front shock
- 270mm Rear shock
- Front and Rear Disc Braking
- Chain transmission (14T-37T 420#)
Dimensions & Capacities
Dimensions
| Attribute | Value |
|---|---|
| Vehicle Size | 1480x670x890mm |
| Seat Height | 625mm |
| Wheelbase | 1055mm |
| Ground Clearance | 180mm |
| Dry Weight | 56kg |
| Fuel Capacity | 3.5L |
Logistics
Shipping Information
- Packing Size: 1300x380x640mm
- Qty in 20ft GP: 87 PCS
- Qty in 40ft HQ: 216 PCS
