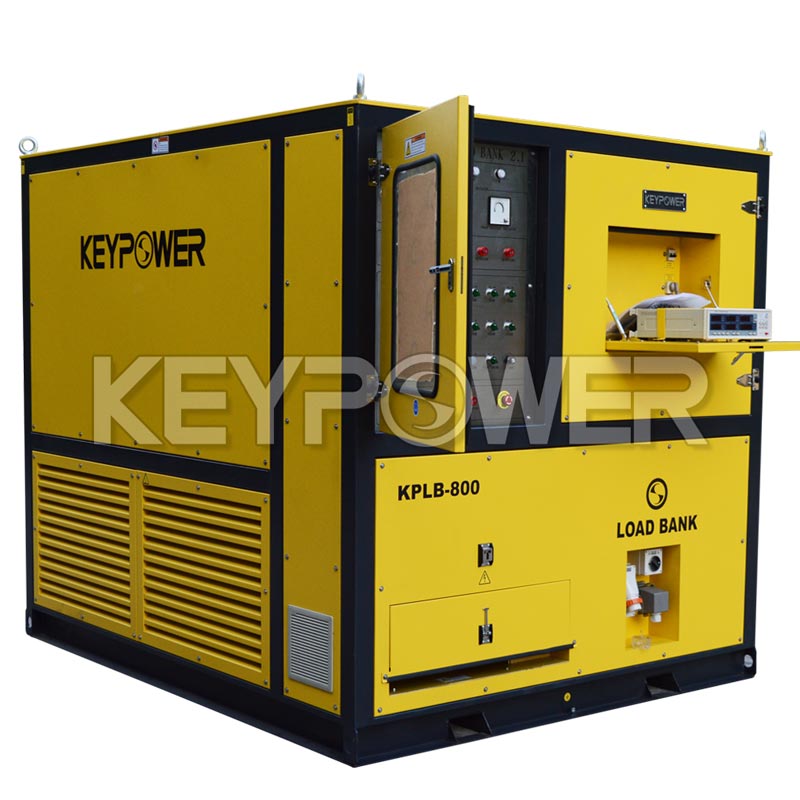

800kW Resistive Load Bank for Power System Testing
This 800kW resistive load bank is designed for testing and validating power systems. It provides a stable and controllable load for simulating real-world operating conditions.
Technical Specifications
Overview
Professional Power System Testing
This 800kW resistive load bank provides a stable and controllable electrical load for comprehensive performance testing of generators, UPS systems, and battery banks. Designed for industrial applications, it features high-grade stainless steel elements and precise load step control to simulate real-world operating conditions. With integrated safety protections and advanced metering, it is an essential tool for commissioning and maintenance in demanding environments.
Technical Specifications
Rated Testing Capacity
Electrical Parameters
| Parameter | Value/Range |
|---|---|
| Voltage Range | 110-480 VAC |
| Frequency | 50/60 Hz |
| Power Factor | 1.0 |
| Load Type | Resistive |

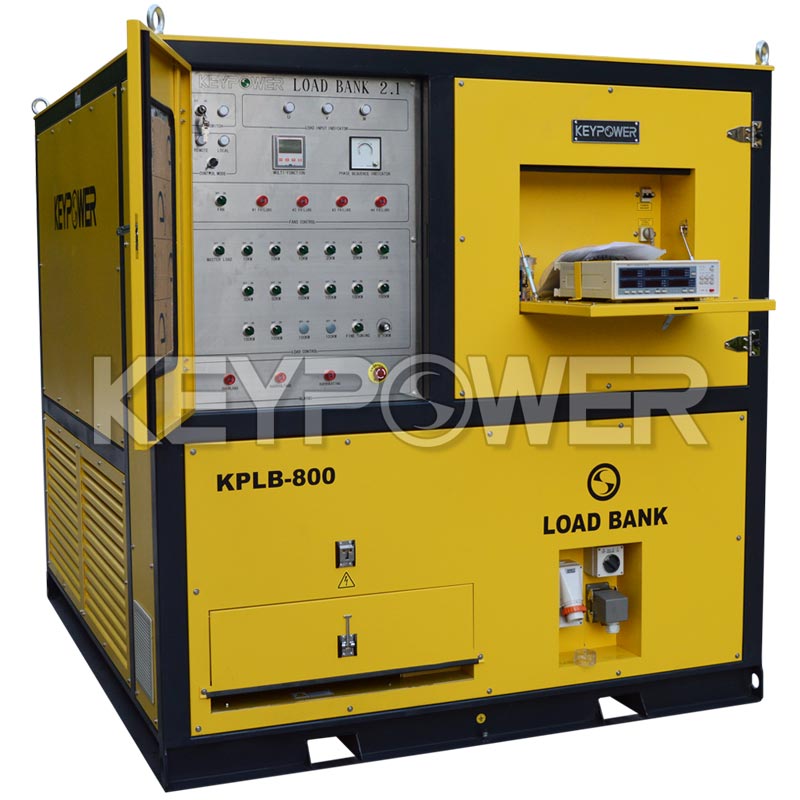

Load Control Features
- Load step resolution: 10kW
- Includes 10kW, 20kW, 50kW, 100kW switches
- 0-10kW fine-tuning knob
- Local manual control
- Optional remote control (up to 30m)
Operating Environment
Operating Conditions
- Altitude: ≤ 3000m
- Ambient Temperature: -10 to +50 °C
- Relative Humidity: ≤ 80%
- Ventilated environment required
Safety & Construction
Industrial Grade Components
The unit utilizes high-quality industrial components, including stainless steel sheathed elements with magnesium oxide insulation, to ensure reliable performance and a long service life. Cooling is managed by industrial-grade axial fans mounted on the side for horizontal airflow.
- Protection Mechanisms
- Overheating ProtectionFan Failure ProtectionOverload ProtectionAlarm System
