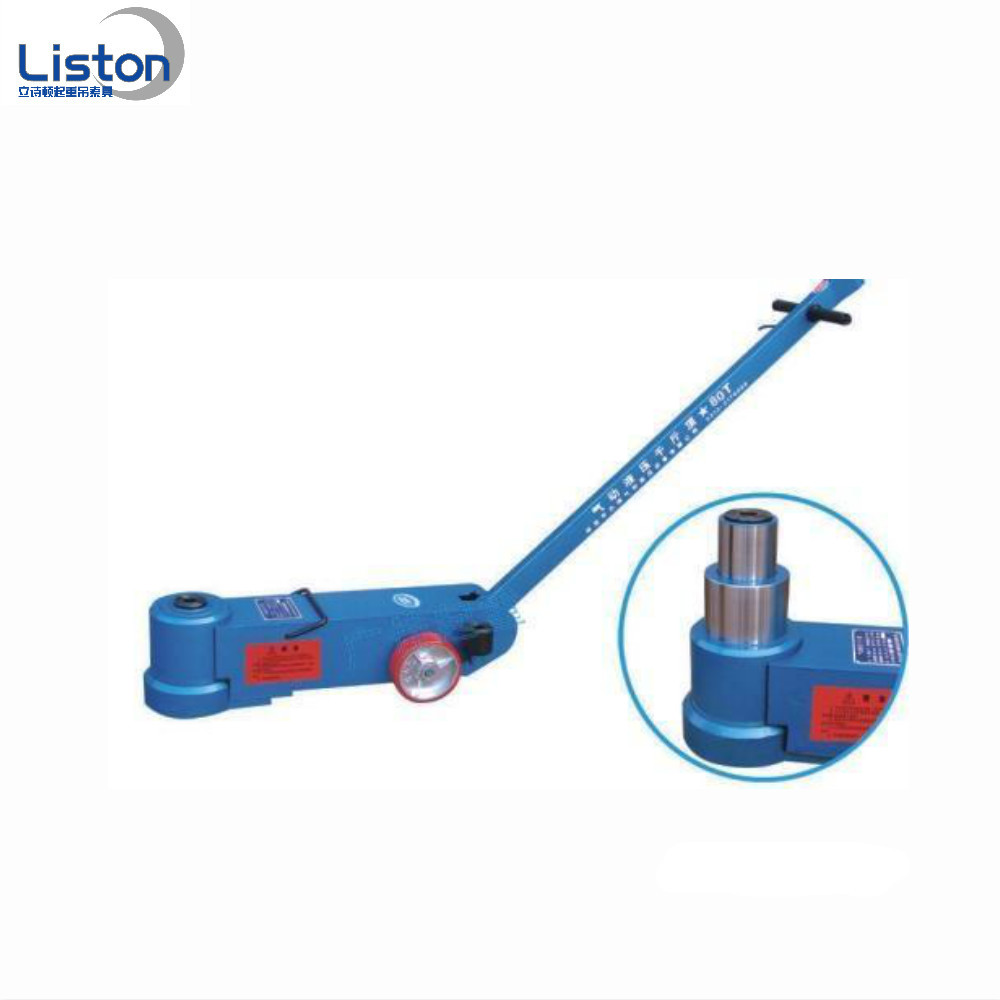

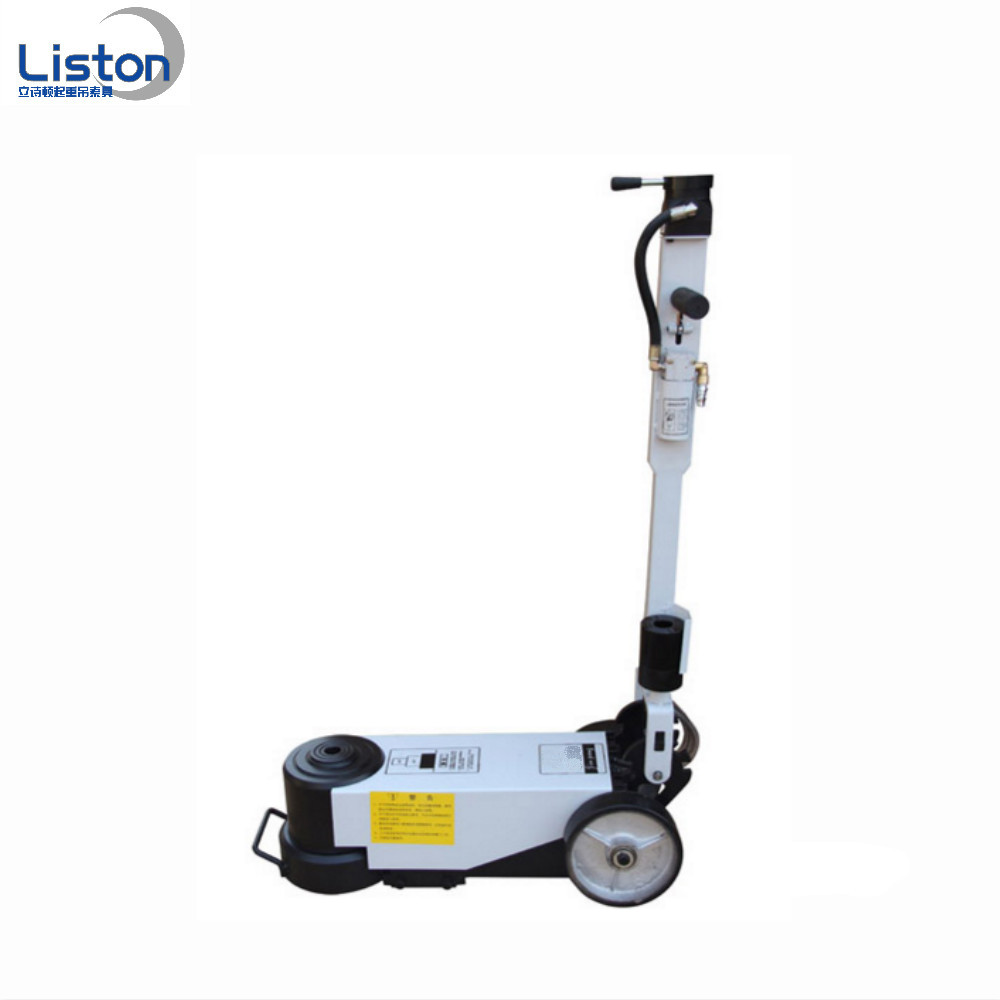

80-Ton Air Hydraulic Truck Jack
This pneumatic hydraulic jack utilizes compressed air to power its lifting mechanism. With a lifting capacity of 80 tons, it is suitable for repairing trucks and other heavy vehicles.
Technical Specifications
Overview
Heavy-Duty Pneumatic Hydraulic Jack
This heavy-duty pneumatic hydraulic jack is designed for demanding automotive and industrial applications, offering an efficient solution for lifting trucks, tractors, and other heavy equipment. By combining liquid pressurization with a telescopic hydraulic cylinder and utilizing compressed air as a power source, this equipment significantly reduces manual effort while ensuring smooth, controlled lifting. Its compact design and lightweight construction make it an ideal choice for professional garages, workshops, and fleet maintenance facilities.
Key Metrics
Performance Highlights
80 ton
Max Capacity
1.2 mpa
Max Air Pressure
79 kg
Net Weight
Technical Specifications
Model Comparison
| Specification | 25/50t Model | 40/80t Model | 50/100t Model |
|---|---|---|---|
| Capacity | 25/50t | 40/80t | 50/100t |
| Min Height | 165mm | 210mm | 220mm |
| Lift Height | 295mm | 450mm | 405mm |
| Cylinder Stroke | 130mm | 240mm | 185mm |
| Net Weight | 63kg | 79kg | 125kg |
- Rated Pressure
- 31.2 mpa
Features
Product Benefits
- Compressed air power source
- Telescopic hydraulic cylinder
- Lightweight and compact design
- Time and labor-saving operation
- High lifting capacity
Application
- Ideal Applications
- Truck RepairTractor MaintenanceFleet MaintenanceAutomotive Workshops
