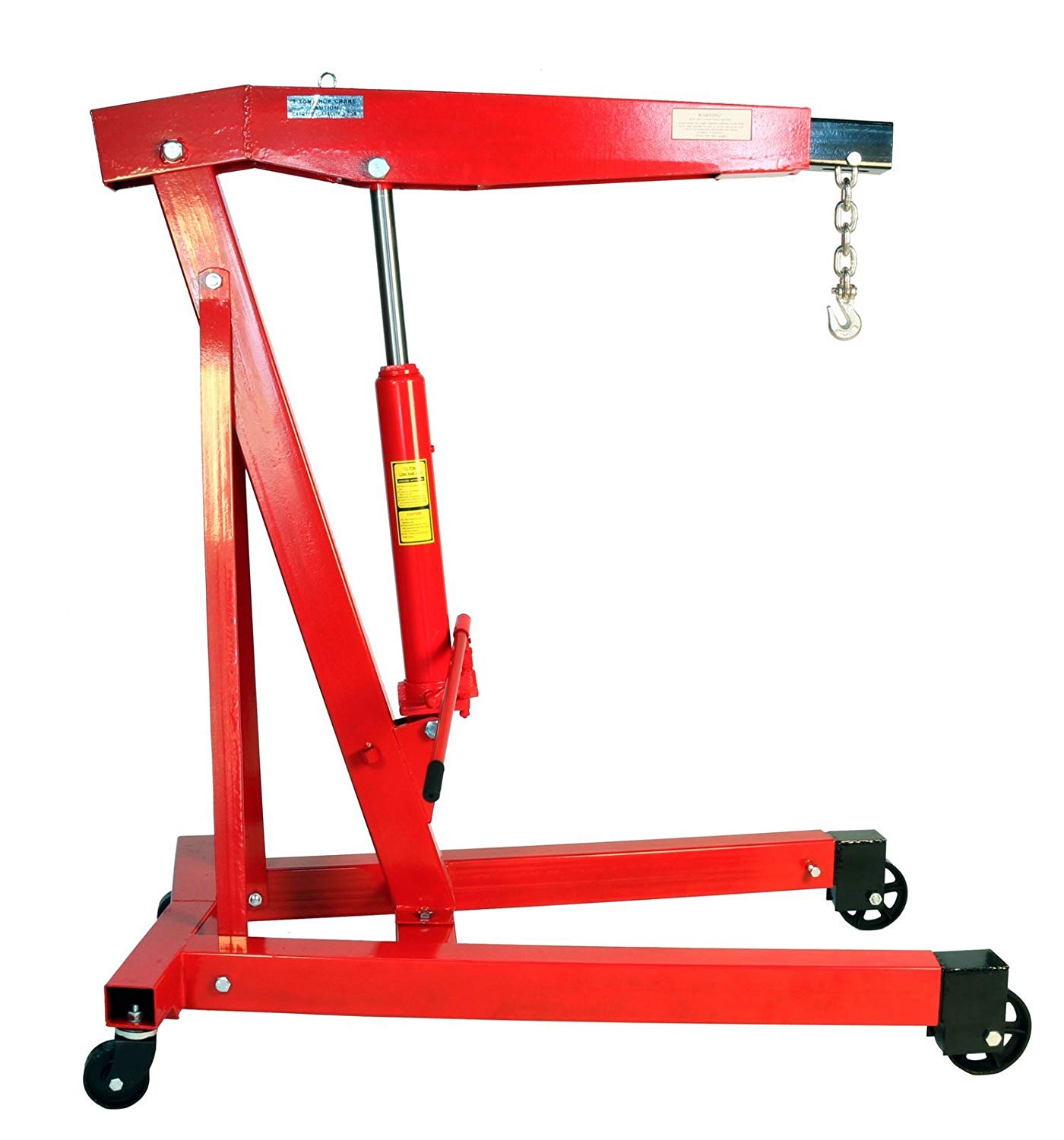

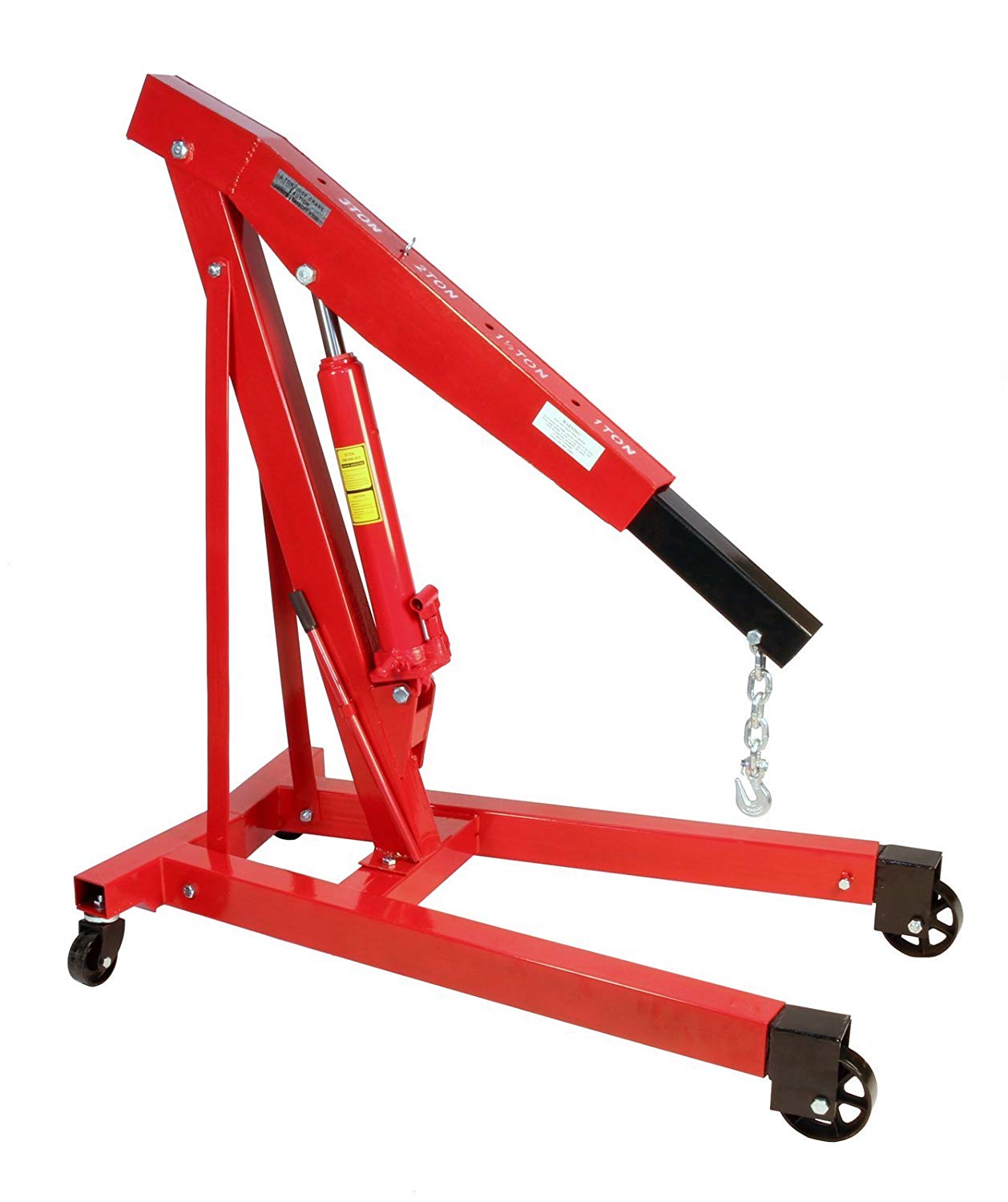

2-Ton Heavy-Duty Hydraulic Engine Crane
This 2-ton hydraulic engine crane is designed for lifting and positioning engines and other heavy components. It features a robust steel construction and a hydraulic system for smooth, controlled lifting.
Technical Specifications
Overview
Heavy-Duty Hydraulic Engine Crane
This heavy-duty hydraulic engine crane is engineered for demanding automotive and industrial environments, providing reliable lifting power for engines, machinery, and shop equipment. Constructed from high-grade premium steel with a robust frame and boom, it ensures stability and durability under load. The unit features a versatile design with an adjustable boom and extendable legs, allowing for precise positioning and compatibility with various workspace configurations.
Performance Metrics
Lifting Capacity
2,000 lbs
Capacity at Max Height
6,000 lbs
Max Lifting Capacity
Lifting Heights
| Load | Height |
|---|---|
| 2000 lbs | 97 inches |
| 6000 lbs | 90 inches |
Construction & Materials
Frame Specifications
- Frame thickness: 0.145 inch
- Boom extension thickness: 0.100 inch
- Boom dimensions: 6 inch x 3.5 inch
- Hook & Chain
- 3/8 inch Forged Steel Hook12 inch Forged Steel Chain
Dimensions & Mobility
Casters & Wheels
- 4 inch Steel Rear 360 Degree Casters
- 6 inch Steel Front Wheels
- Collapsed Dimensions
- 30 inch (W) x 57 inch (L) x 65 inch (H)
- Leg Dimensions
- 32 inch width (outside leg to leg); Front legs extend 55 to 89 inches
Hydraulic System
- Ram Capacity
- 12 Ton
- Control Mechanism
- Easy Control Lever
