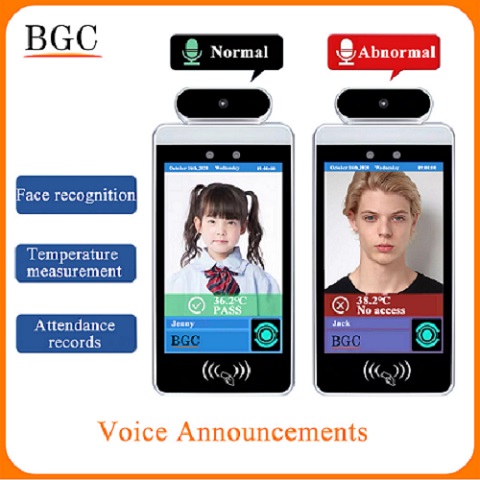

8-Inch LCD Face Recognition and Temperature Screening Kiosk
This kiosk features an Android 7.1 system with advanced face detection and recognition. It provides real-time temperature monitoring with an accuracy of 0.3°C and supports multiple interfaces for access control management.
Technical Specifications
Overview
Smart Access & Health Screening Kiosk
This 8-inch LCD kiosk offers a comprehensive solution for modern security and health monitoring. It combines advanced face recognition technology with real-time infrared temperature screening, ensuring accurate identity verification and non-contact health checks. Designed for versatility, it supports various installation methods and is ideal for offices, schools, and public access points.
Display & Hardware
Display Specifications
8 inch
Screen Size
400 cd/m2
Brightness
- Resolution
- 1920*1080
System & Performance
System Configuration
- CPU: 4 cores, RK3288
- OS: Android 7.1
- RAM: 2GB (Optional 4GB)
- Storage: 8GB (Optional 16GB/32GB)
- Connectivity
- Wi-Fi 2.4GBluetooth 4.110/100M Ethernet4G Module (Reserved)
Camera & Recognition
Camera System
- Resolution: 200W
- Type: RGB + Infrared
- Automatic White Balance
- Dual ISP Image Processing
Recognition Performance
- Face Bank Capacity: 20,000 users
- Detection: Simultaneous tracking of 5 individuals
- 1:N Accuracy: 99% pass rate
- Stranger Testing: Supported
Temperature Screening
Thermal Imaging
0.3 °C
Temperature Tolerance
1 m
Max Detection Distance
Interfaces & Power
Machine Interfaces
| Interface Type | Detail |
|---|---|
| Wigan | Input & Output |
| USB | USB_Host 2.0, OTG |
| Serial | RS232 |
| Power | 12V/1.5A Adapter, POE (Optional) |
Environmental & Installation
Durability
IP64 RatedWaterproofDustproofOutdoor Ready
Operating Environment
- Temperature: -10°C to +60°C
- Humidity: 10-90% (Non-condensing)
