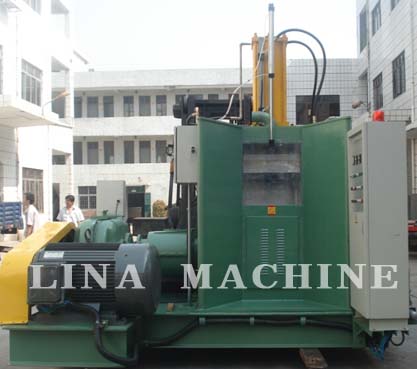

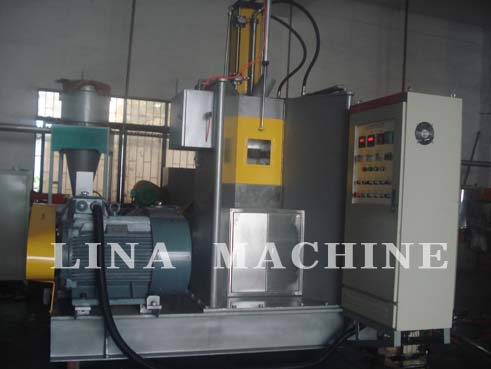

75L Dispersion Kneader Internal Mixer
The 75L Dispersion Kneader is designed for efficient mixing of rubber compounds, polymers, and other viscous materials. This internal mixer ensures consistent batch quality and optimized production output with its robust construction and precise temperature control.
Technical Specifications
Overview
High-Performance Dispersion Mixing
The 75L Dispersion Kneader is an advanced internal mixer designed for bulk production of rubber and plastic compounds. Utilizing international design standards and precision core components, it offers superior sealing, abrasion resistance, and temperature control. This machine is engineered for high-torque applications, ensuring homogeneous dispersion and consistent batch quality in demanding industrial environments.
Technical Highlights
Key Technical Advantages
- Chromium-coated banburying chamber (0.12-0.18mm thickness)
- Exclusive rotor shaft sealing technology
- High-rigidity 42 chromium-molybdenum gear reducer
- Nitridation-treated hardened tooth surfaces
- Reverse rotation discharging for easy cleaning
- Dry mechanical shaft seal for environmental protection
Performance Metrics
Core Performance
75 L
Mixing Capacity
110 kW
Driving Motor
100 kg/load
Max Productivity
Technical Specifications
- Mixing Capacity
- 75 L
- Driving Motor Power
- 110 kW
- Tilting Motor Power
- 4 kW
- Tilting Angle
- 140 °
- Electric Heater Power
- 18 kW
- Productivity per Load
- 80-100 KG
Physical Properties
- Dimensions (H*W*L)
- 3,800 x 2,300 x 3,200 mm
- Total Weight
- 10800 kg
Construction
- Mixing Chamber Material
- Advanced special steel with hard chromium coating
- Available Chamber Types
- Tipping TypeLifting Type
Applications
Target Materials
Rubber CompoundsPolymersPlasticsMasterbatchViscous Materials
