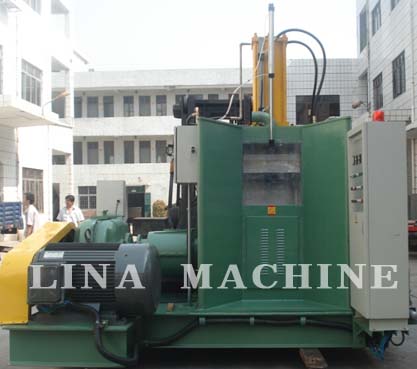

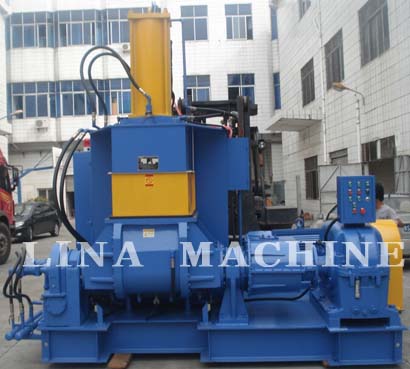

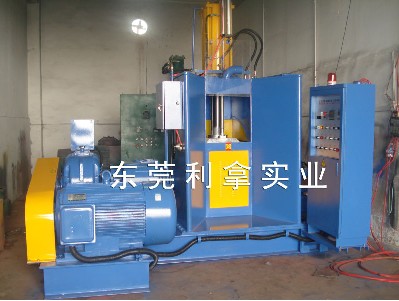

110L Dispersion Kneader Internal Mixer
This 110L dispersion kneader is designed for intensive mixing and kneading of materials. It is mainly used in bulk product processing for efficient and consistent results.
Technical Specifications
Overview
High-Efficiency 110L Dispersion Kneader
This 110L internal mixer features an international advanced design with core components and technical drawings originating from Taiwan. It is engineered for superior sealing, safety, and abrasion resistance, making it an industry leader in temperature control precision. Designed specifically for bulk material processing, it ensures uniform dispersion and optimal mixing performance for rubber and plastic industries.
Performance Highlights
Performance Metrics
110 L
Mixing Capacity
160 KW
Driving Motor
180 KG/load
Max Productivity
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Tilting Motor Power | 5.5 KW |
| Tilting Angle | 140° |
| Electric Heater Power | 24 KW |
| Productivity Range | 100-180 KG/load |
| Total Weight | 15,000 KG |
Construction & Durability
Mixing Chamber Features
- Chamber coated with 0.12-0.18mm chromium layer for extended life
- Mixing chamber made of advanced special steel
- Surface treated with abrasion-resistant steel
- Available in tilting type and lifting type
- Dry mechanical shaft seal for easy maintenance
Mechanical Advantages
Mechanical Benefits
- Gear reducer made of 42 chromium-molybdenum high-rigidity material
- Nitridation treatment on gears with hardened tooth surfaces
- Exclusive technology sealing ring at rotor shaft end
- Discharging by reverse rotation for easy cleaning
- Low noise and energy-efficient operation
Dimensions
- Height
- 1600 mm
- Width
- 900 mm
- Length
- 1900 mm
Compliance & Components
- Component Quality
- Taiwan TechnologyImported Core ComponentsAdvanced Electronic ComponentsHigh-Rigidity Material
