Technical Specifications
Product Overview

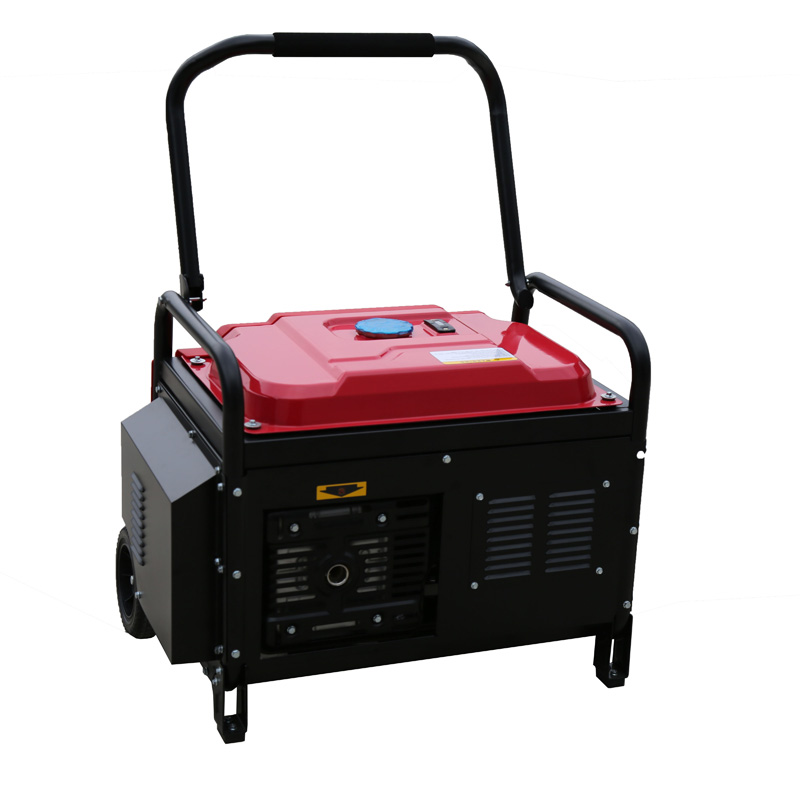

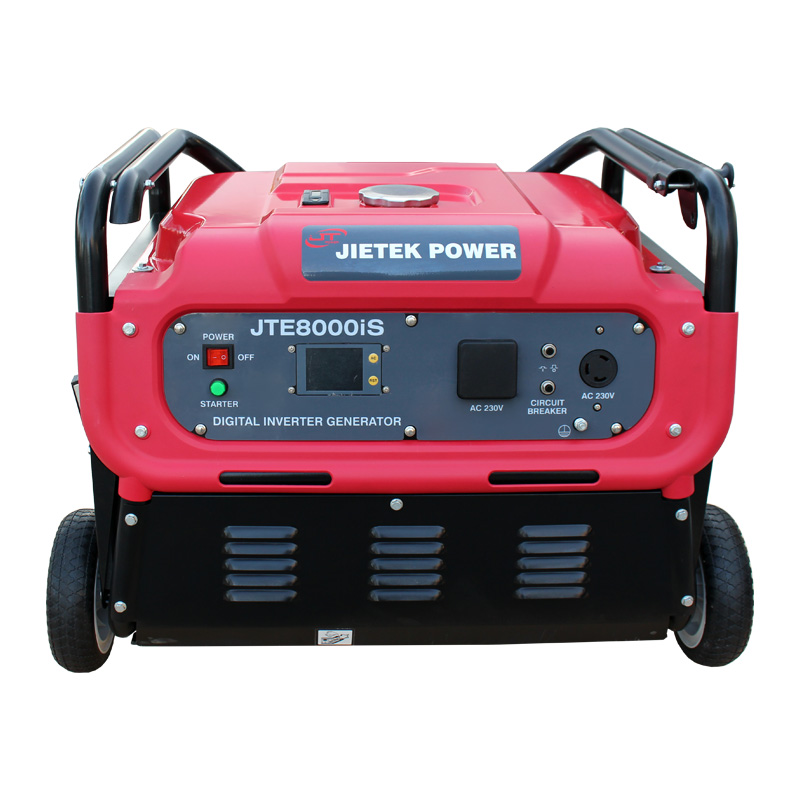

High-Performance 7.5kW Digital Inverter Generator
This commercial-grade digital gasoline inverter generator is designed for heavy-duty applications, capable of 24-hour continuous operation without power reduction. It features a true pure sine wave output with less than 2.5% THD, making it safe for sensitive electronic equipment and sophisticated industrial tools. With a surge power capacity of up to 15kW and fuel savings of 20% to 40% compared to traditional units, it offers a highly efficient power solution for B2B buyers.
Key Performance Metrics
Performance Highlights
7.5 kW
Max Power
7.2 kW
Rated Power
15 kW
Surge Power
68 dBA
Noise Level (7m)
Electrical Specifications
- Output Voltage Options
- 110V120V220V240V380V
- Frequency
- 50Hz60Hz
- Phase Configuration
- Single / Three Phase Support
- Power Factor
- 0.93
Engine & Fuel
Engine Specifications
- Model: JD190F
- Type: Forced Air Cooled, Single Cylinder, 4-Stroke OHV
- Displacement: 420cc
- Speed: 2800-3600 rpm (load-based)
- Fuel Type: Unleaded Gasoline / LPG compatible
- Fuel Tank Capacity
- 22 L
- Continuous Running Time
- 6 hours
Advanced Features
Control & Monitoring
- 3" LCM Digital Display (Load, Voltage, Frequency, Hours)
- One-Button Electric Start & Recoil Start
- Auto Choke & Auto Throttle
- Inverter Voltage Regulation
Safety Protections
Short Circuit AlarmOverload ProtectionLow Oil ShutdownCircuit Breaker
- Available Options
- ATS (Auto Transfer Switch)Paralleling Capability2-Wire System Compatibility
Physical Dimensions
- Net Weight
- 78.5 kg
- Dimensions (LxWxH)
- 730 x 570 x 630 mm
Compliance
Product Certifications
CEISO 9001EPA
