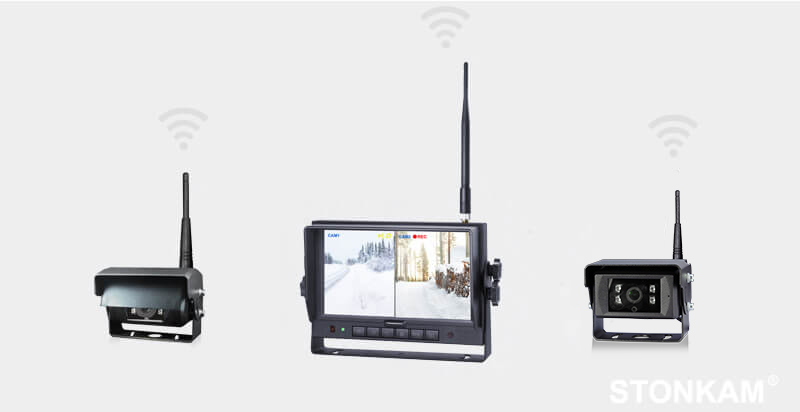

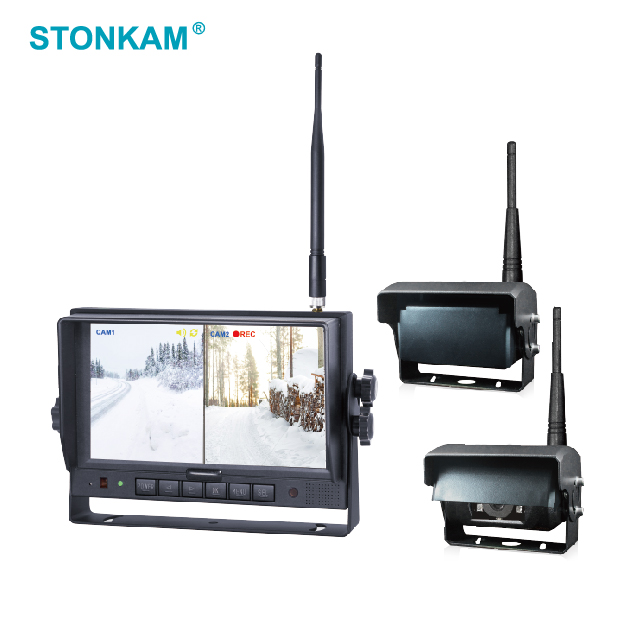

720P 2.4GHz Wireless Shutter Camera System
This digital wireless camera system operates on a 2.4GHz frequency and features a 720P high-definition camera equipped with a shutter mechanism. The shutter camera enhances privacy and security by allowing the user to physically block the camera lens when not in use.
Technical Specifications
Overview
Rugged Wireless Monitoring for Heavy Duty Vehicles
This 720P 2.4GHz Digital Wireless Shutter Camera System is engineered for demanding environments like construction sites and agricultural fields. It features an automatic shutter to protect the lens from sand, snow, and debris, ensuring clear visibility in harsh weather. With a 300m transmission range and easy auto-pairing, it provides a reliable, cable-free solution for forklifts, harvesters, and cranes.
Performance Metrics
Key Performance Metrics
300 m
Wireless Range
720 P
Resolution
110 °
Viewing Angle
128 GB
Max Storage
Monitor Specifications (HDW-127S)
Display & Receiver Specs
| Feature | Specification |
|---|---|
| LCD Size | 7-inch |
| Resolution | 1024 x 3 (RGB) x 600 |
| Brightness | 600 cd/m² |
| Contrast Ratio | 800:1 |
| Aspect Ratio | 16:9 |
| Channels | 4 Channels |
| Power Supply | DC 10-32V |
| Storage | MicroSD (up to 128GB) |

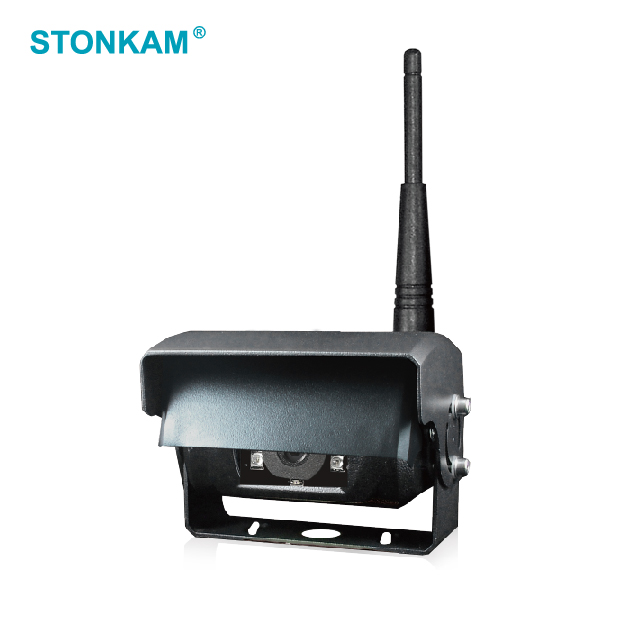

Camera Specifications (HDW-635M)
Camera & Lens Specs
| Feature | Specification |
|---|---|
| Image Sensor | 1/4" Color CMOS |
| Effective Pixels | 1280(H) x 720(V) |
| Night Vision Distance | 8-10m |
| Min. Illumination | 0.1 Lux (0 Lux with IR) |
| Video Codec | H.264 |
| Waterproof Rating | IP69K |
| Anti-vibration | 5.9g |
Smart Features
System Capabilities
- Auto pairing upon power-up
- Dual screen and single screen display modes
- Automatic channel scanning (5-45s adjustable)
- Built-in recorder with dual-channel simultaneous recording
- Auto-dimming screen based on ambient light
- Real-time trigger display for 4 single channels
- Optional IR cut filter and auto-heater
Environmental & Durability
- Protection & Operating Limits
- IP69K Waterproof5.9g Anti-vibrationAuto Shutter Protection-20°C to 70°C Operating TempIR Night Vision
Applications
Ideal For
ForkliftsHarvestersCranesConstruction MachineryAgricultural Equipment
