Technical Specifications
Overview
High-Efficiency Commercial Climate Solution

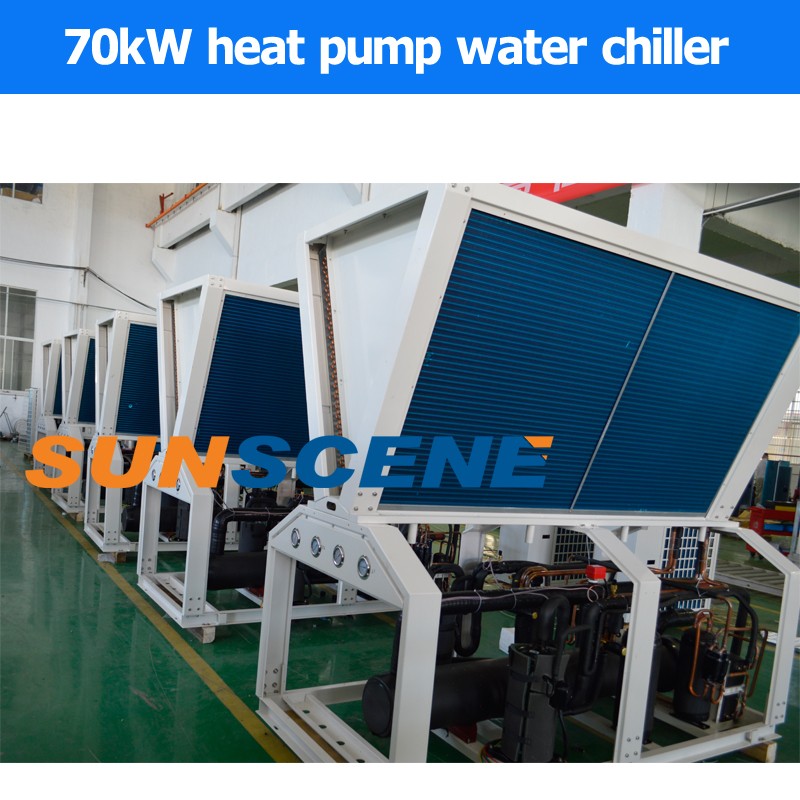

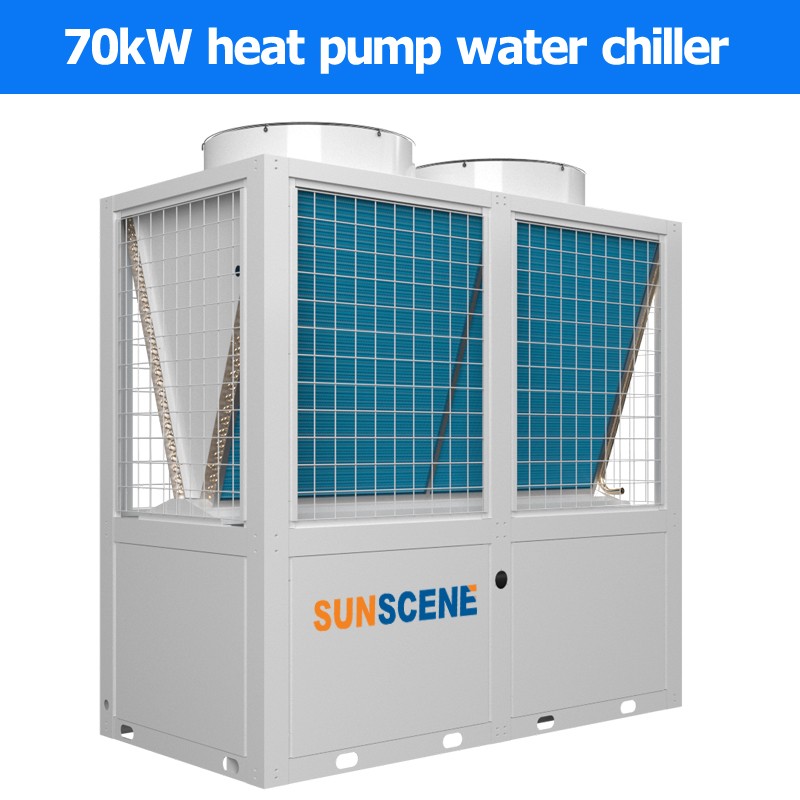

This 70kW commercial inverter heat pump is designed for high-performance heating and cooling in demanding environments, capable of operating in ambient temperatures as low as -25°C. Utilizing advanced EVI and DC inverter technology, the system maintains stable output even in extreme winter conditions while saving up to 75% on electric power compared to traditional systems. The modular design allows a single controller to manage up to 16 units, making it an ideal scalable solution for large-scale commercial and industrial applications.
Key Performance Metrics
Performance Highlights
70 kW
Rated Cooling
75 kW
Rated Heating
67 dB(A)
Noise Level
26 P
Horsepower
Technical Specifications
Refrigerant
R410A
- Power Supply
- 380V / 50Hz
- Compressor Technology
- DC Inverter (10~120rps) with EVI technology
- Ambient Operating Range
- Down to -25°C (Winter)
Efficiency Data
Detailed Performance (Model MRSV-70A/S)
| Parameter | Rated Value | Range (Min/Max) |
|---|---|---|
| Cooling Capacity | 70 kW | 20 / 75 kW |
| Cooling Input Power | 22 kW | 7.5 / 31.2 kW |
| EER | 3.2 w/w | 2.2 / 4.2 w/w |
| Heating Capacity | 75 kW | 24 / 78 kW |
| Heating Input Power | 23 kW | 7.8 / 31.2 kW |
| COP | 3.3 w/w | N/A |
Features & Control
System Features
- Modular control for up to 16 units
- One-touch auto-running control
- V-type high-efficiency evaporator
- BLDC motor (300~1000rpm)
- Low maintenance requirements
- Compact installation footprint
Applications
- Target Applications

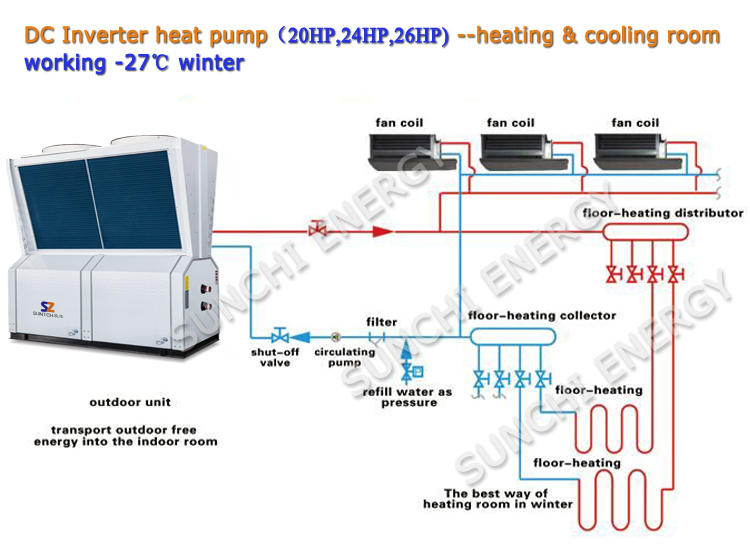

- Commercial BuildingsIndustrial FacilitiesFloor Heating SystemsFan Coil UnitsMulti-family Residential
