7-inch Stainless Steel Grinding Wheel
This 7-inch grinding wheel is designed for stainless steel and metalworking applications. It is constructed with quality abrasives and features a depressed center for controlled grinding.
Technical Specifications
Overview
High-Performance Grinding Solution

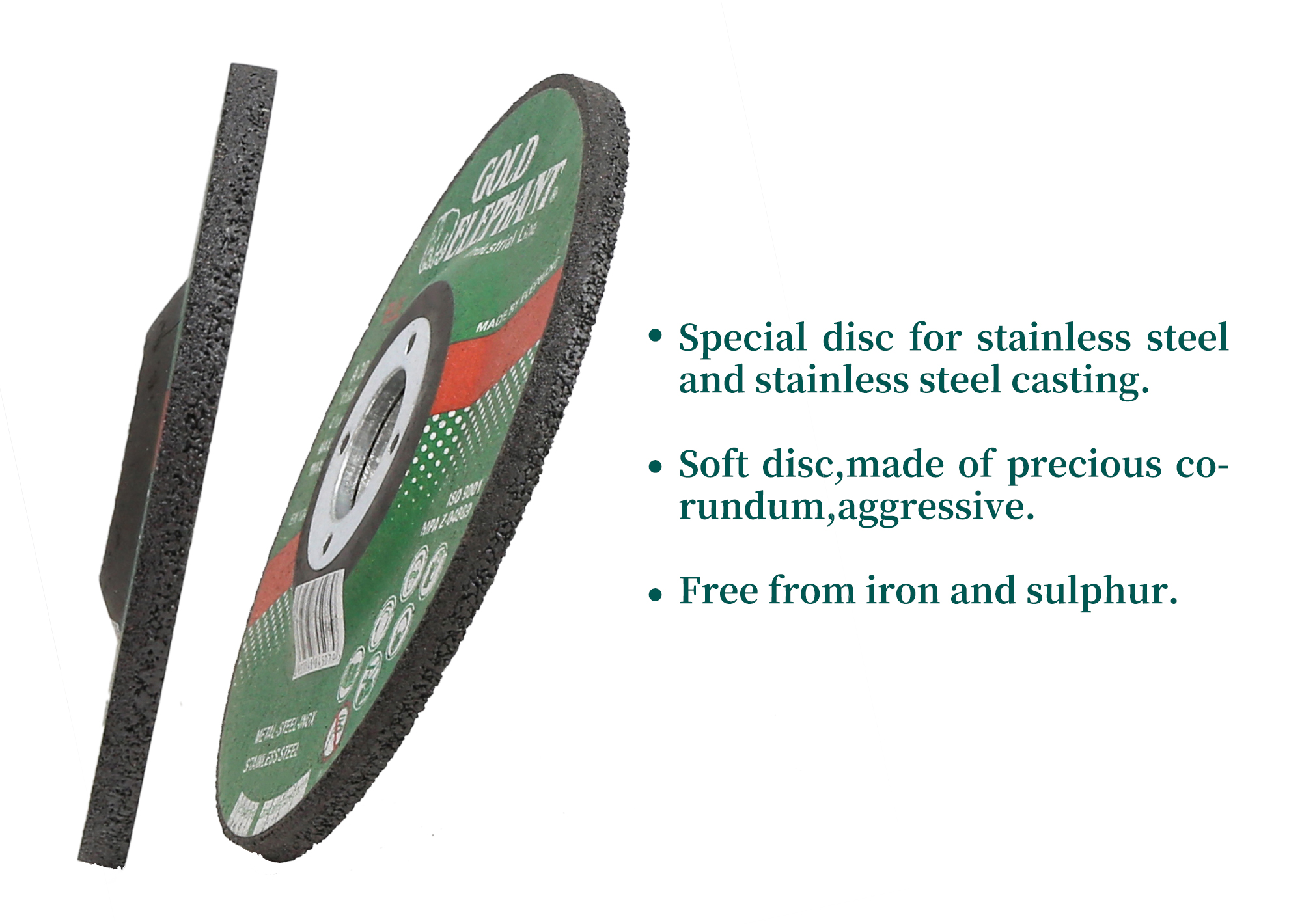

This 7-inch depressed center grinding wheel is engineered for high-performance material removal on stainless steel and metal surfaces. Constructed with precious corundum and reinforced with a double-net fiberglass structure, it offers exceptional sharpness and durability. Designed to be free from iron and sulfur, it prevents surface contamination, making it ideal for precision industrial applications across various sectors.
Technical Specifications

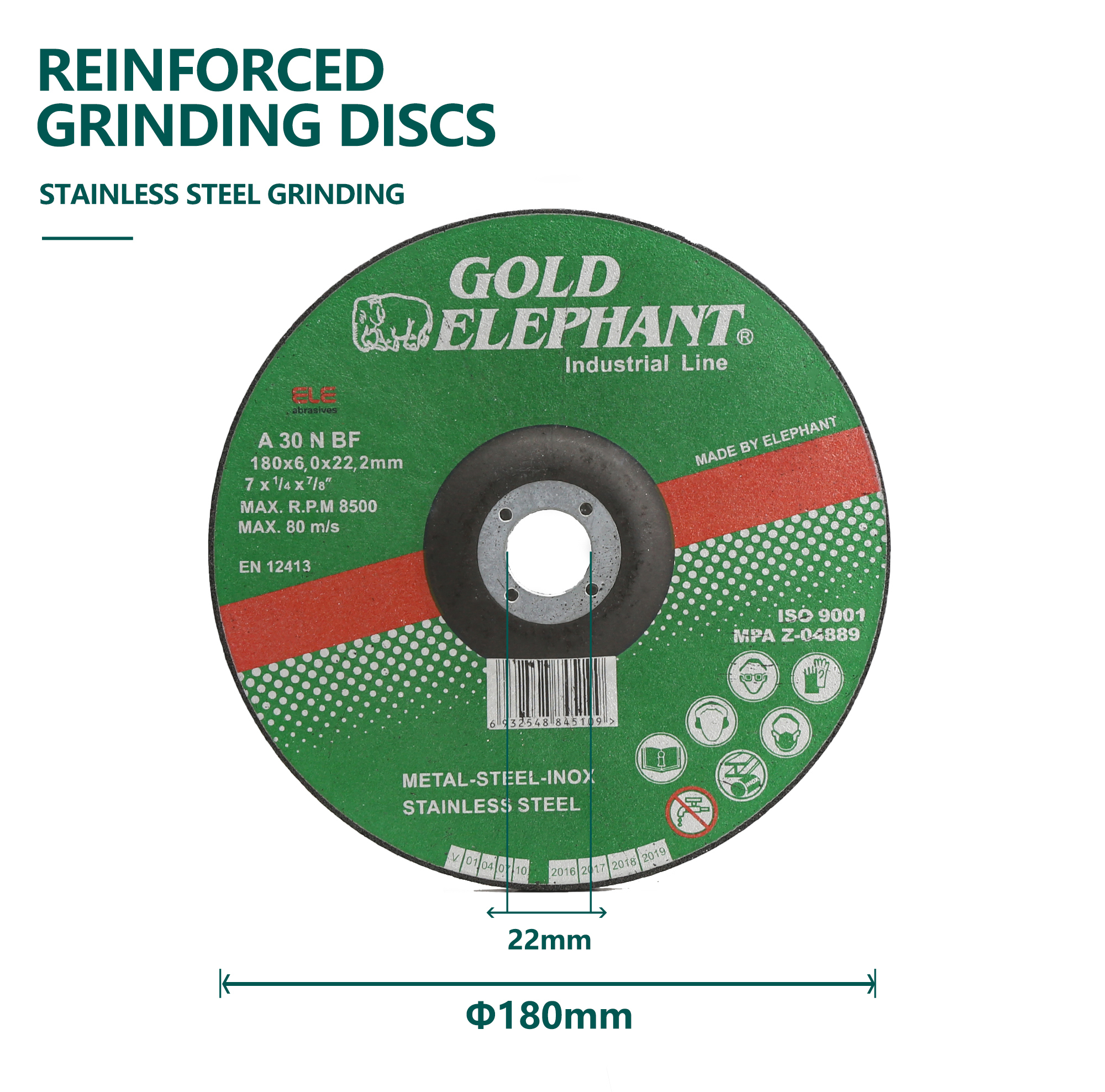

Dimensions
| Metric | Value |
|---|---|
| Outer Diameter | 180 mm |
| Thickness | 6.0 mm |
| Bore Size | 22.2 mm |
Performance Limits
8,500 RPM
Max RPM
80 m/s
Max Speed
- Wheel Type
- T27 (Depressed Center)
- Reinforcement

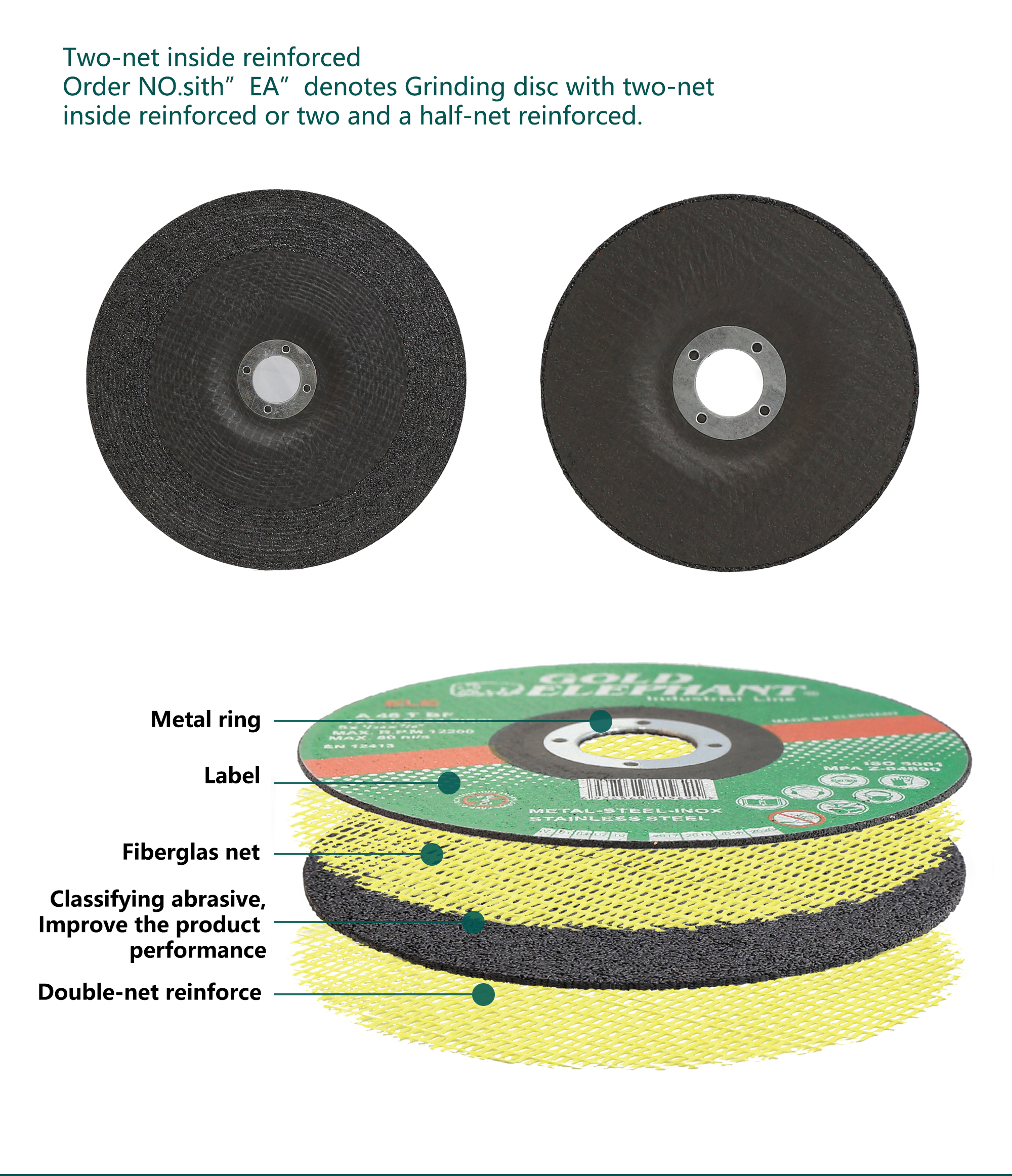

- Double-net fiberglass reinforced
Compliance & Quality
- Certifications
- ISO 9001MPA Z-04889EN 12413
Applications
Suitable Industries
- Machinery
- Automobile
- Ship-building
- Metallurgy
- Chemistry
- Foundry
- Bearing and gear processing
