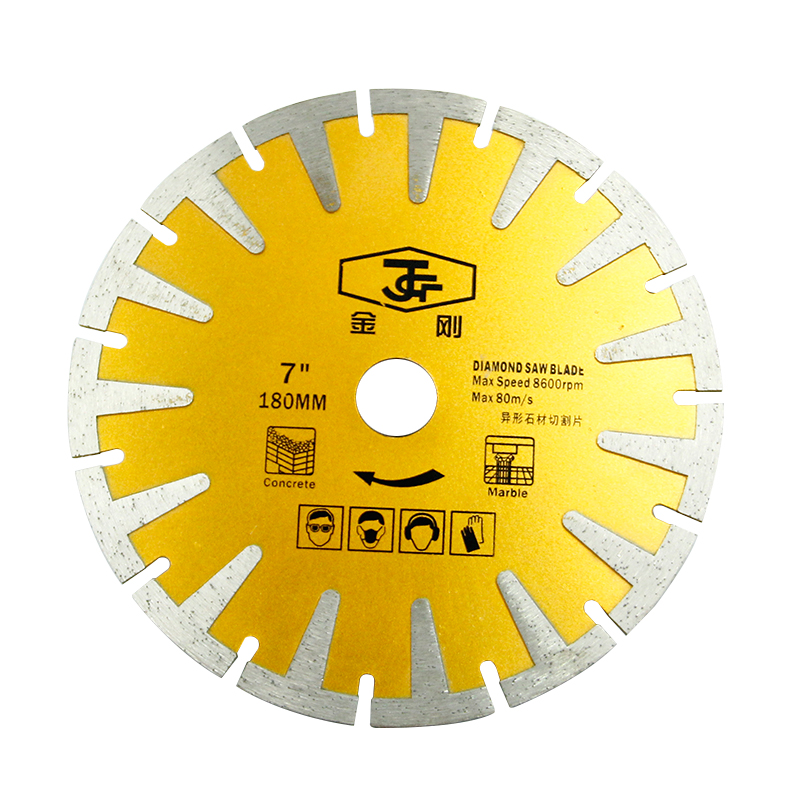

7-Inch Diamond Saw Blade for Concrete and Marble
This 7-inch diamond saw blade is designed for cutting concrete and marble. It features a segmented rim for efficient material removal and cooling slots to reduce heat buildup.
Technical Specifications
Product Overview
High-Performance Diamond Saw Blade
This professional-grade diamond saw blade features a T-type segmented design, engineered for aggressive cutting ability in concrete, marble, and masonry. The core is crafted from high-alloy, heat-treated 65Mn steel, ensuring smooth operation, minimal vibration, and clean cuts. With a 10mm segment height and advanced sintered hot-pressed technology, this blade offers exceptional durability and prevents segment detachment.
Technical Specifications
Dimensions
| Feature | Specification |
|---|---|
| Diameter | 180mm (7 inch) |
| Segment Height | 10 mm |
| Segment Thickness | 2.0 - 2.4 mm |
| Body Thickness | 1.2 - 1.6 mm |
Performance Metrics
8,600 rpm
Max Speed
80 m/s
Max Peripheral Speed
- Material Composition
- 65Mn Steel CoreDiamond & Metal Powder Segments
Compatibility & Usage
Suitable Materials
- Concrete
- Reinforced Concrete
- Exposed Aggregate Concrete
- Concrete Paving
- Granite
- Quarry Slabs
- Sand-lime Stone
- Brick and Masonry
Tool Compatibility
Angle GrindersMarble Cutters
Packaging & Logistics
Available Packaging
- Color box
- White box
- Double blister
- PVC bag
- Blister card
