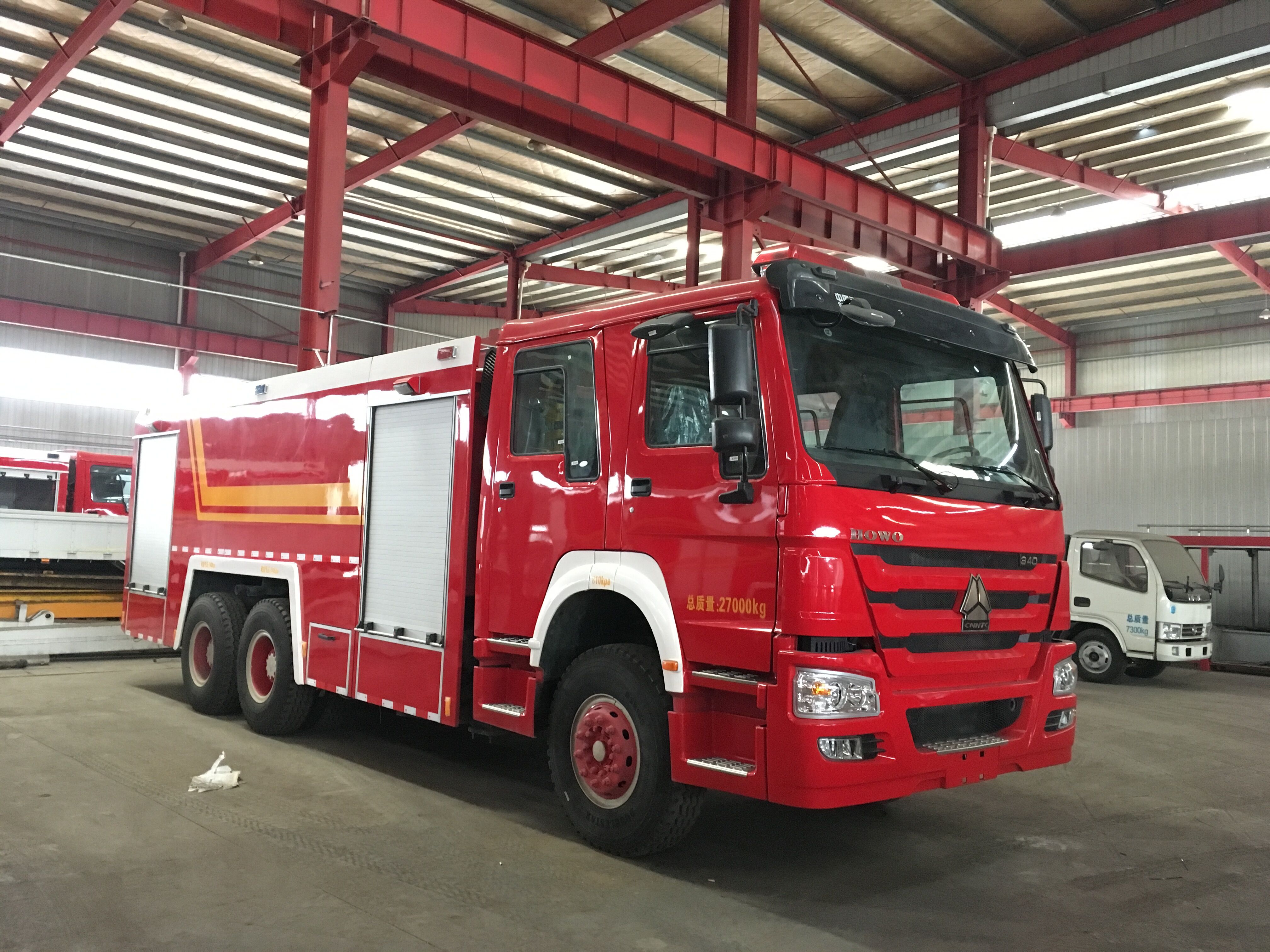

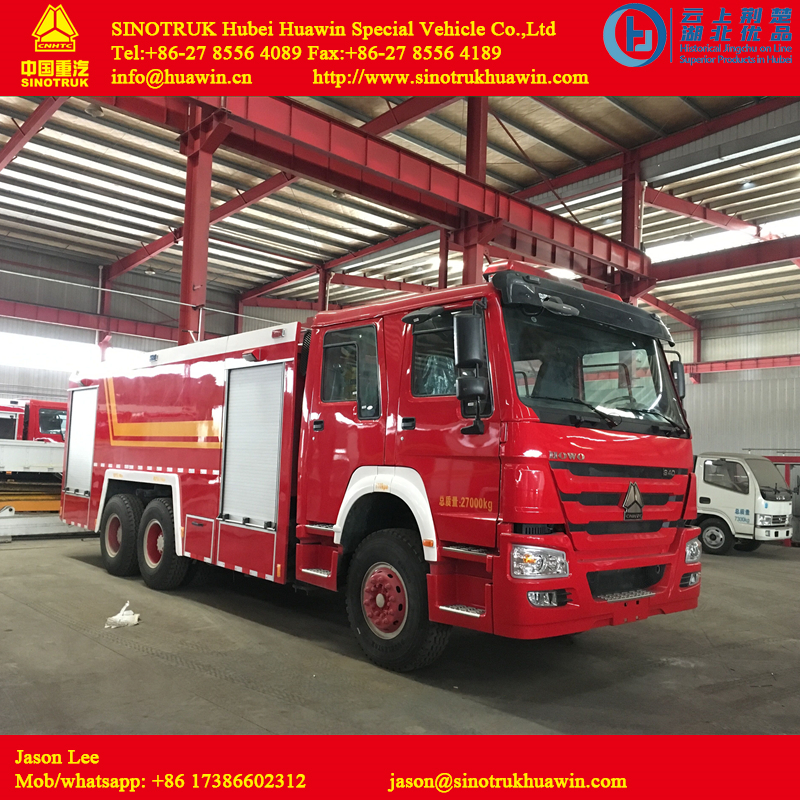

6x4 Firefighting Truck
The 6x4 firefighting truck is a specialized vehicle for rapid response and effective fire suppression. Built on a robust 6x4 chassis, it offers excellent stability and maneuverability.
Technical Specifications
Overview
High-Performance 6x4 Firefighting Vehicle
This 6x4 firefighting truck is engineered for rapid emergency response and effective fire suppression in both urban and industrial environments. Built on a robust chassis, it offers exceptional stability and maneuverability across diverse terrains. With a combined 12,000-liter capacity for water and foam, it provides the necessary resources to combat fires efficiently, supported by a high-pressure pump system.
Dimensions & Weight
Weight Specifications
14,300 kg
Tare Weight
18,000 kg
Payload Capacity
- Overall Dimensions
- 10000 x 2500 x 3600 mm
Performance
Engine Performance
| Feature | Specification |
|---|---|
| Horsepower | 290 HP |
| Engine Type | 4-stroke, 6-cylinder, turbo-charged |
| Emission Standard | Euro II |
| Max Speed | 90 km/h |
Drivetrain Features
- 10 Forward Gears, 2 Reverse Gears
- Reinforced diaphragm clutch (430mm)
- Power-assisted hydraulic steering
- 400L Aluminium fuel tank
Firefighting Equipment
Tank Capacity
10,000 L
Water Tank
2,000 L
Foam Tank
- Pump Performance
- 60 L/s at 1.0 MPa (Low Pressure)
Technical Details
- Axle Loading Capacity
- Front: 7000 kgRear: 2 x 13000 kg
- Tire Configuration
- 12R22.5 Tubeless (11 pcs including spare)
