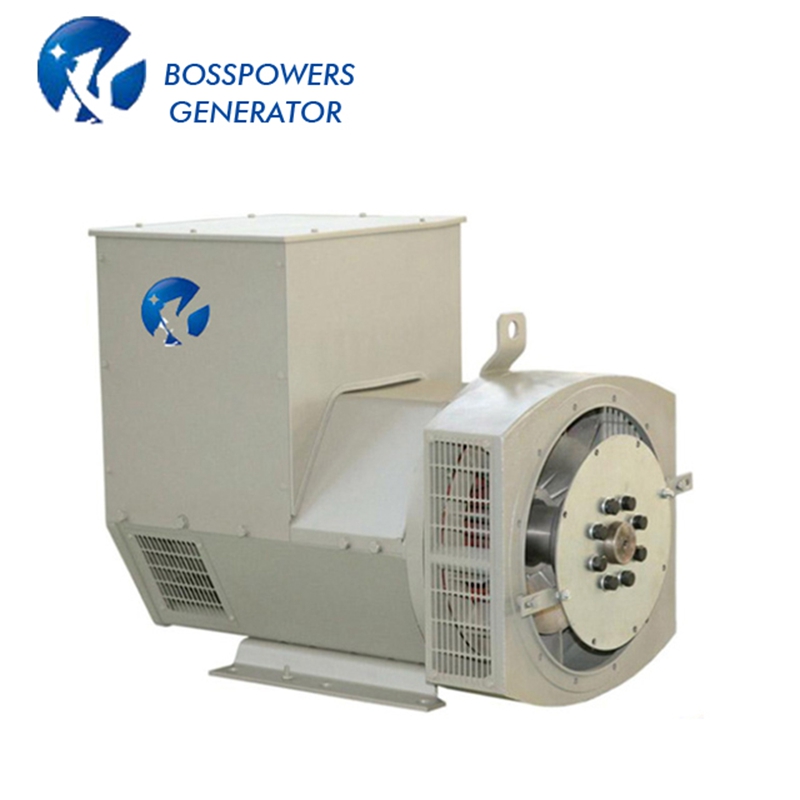

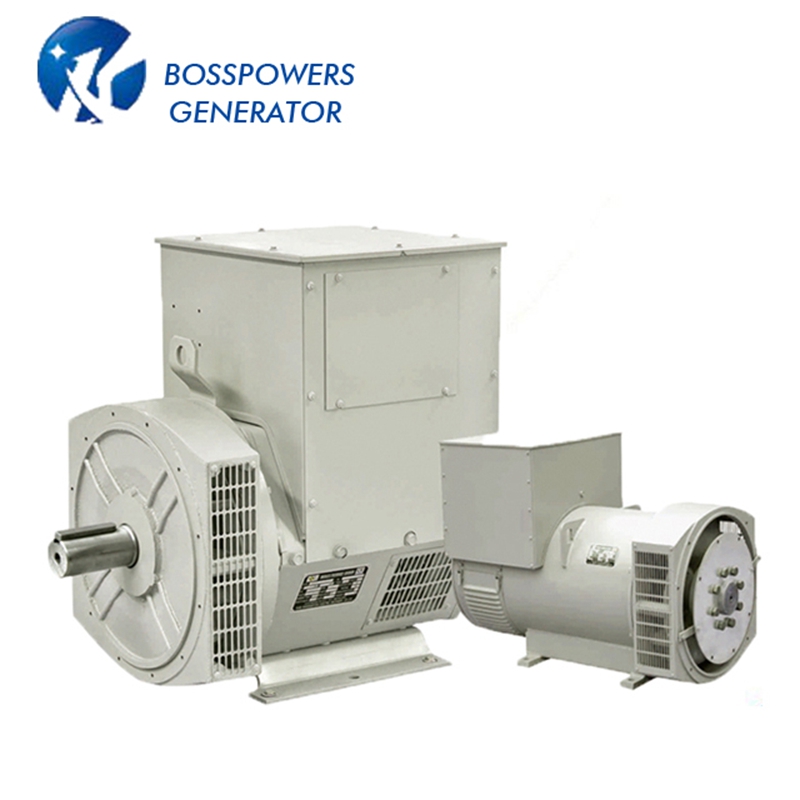

6.5KW to 2000KW AC Synchronous Brushless Alternator
AC synchronous brushless alternators are available from 6.5KW to 2000KW. The brushless design minimizes maintenance and enhances durability for power generation applications.
Technical Specifications
Overview
High-Performance Synchronous Alternators
These AC synchronous brushless alternators are engineered for reliable power generation across a wide range of applications. Featuring a robust brushless design, they minimize maintenance requirements while ensuring consistent and efficient electrical output. With flexible connection options and advanced voltage regulation, these units provide stable performance for industrial and commercial power generation needs.
Technical Specifications
Power Output Range
6.5 KW
Minimum Power
2,000 KW
Maximum Power
Voltage Configurations
- 380V - 690V
- 190V - 345V
- 220V - 400V
- Frequency
- 50Hz60Hz
- Insulation Class
- H
- Protection Rating
- IP21-IP23
Design and Construction
Bearing Configuration
Single BearingDouble Bearing
Connection Types
- Serial Star
- Parallel Star
- Serial Delta
- 12-lead reconnectable
Control and Regulation
Compatible AVR Models
| Model Series |
|---|
| MX321 |
| MX341 |
| AS440 |
| SX440 |
| SX460 |
- RFI Noise Filter
- Yes
