Technical Specifications
Overview
Portable Power Solution

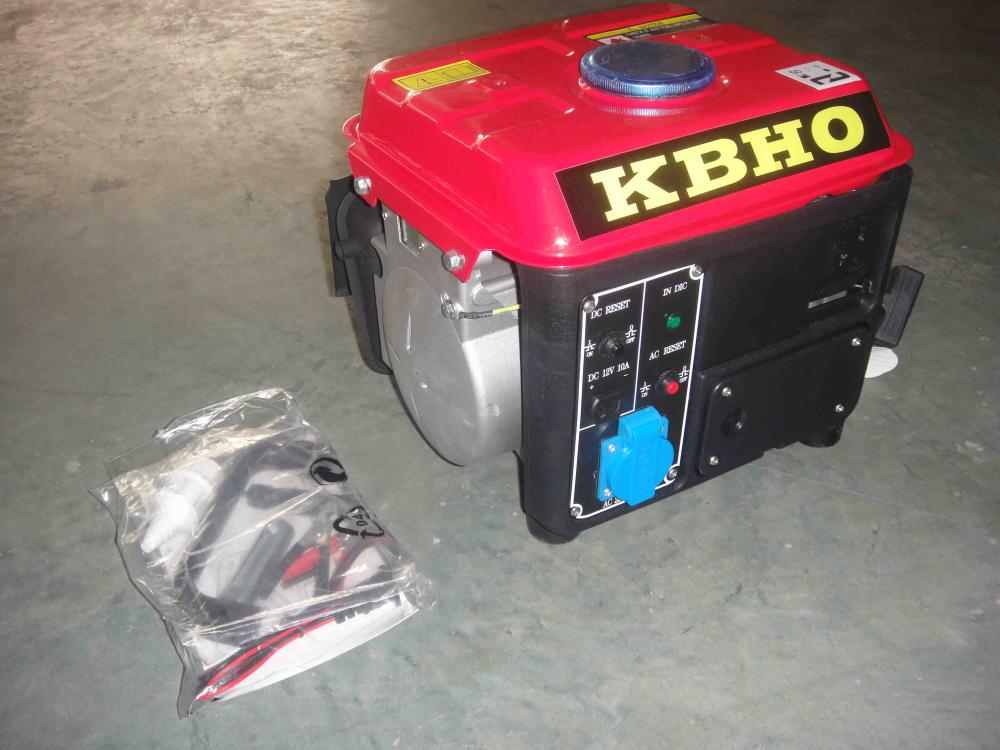

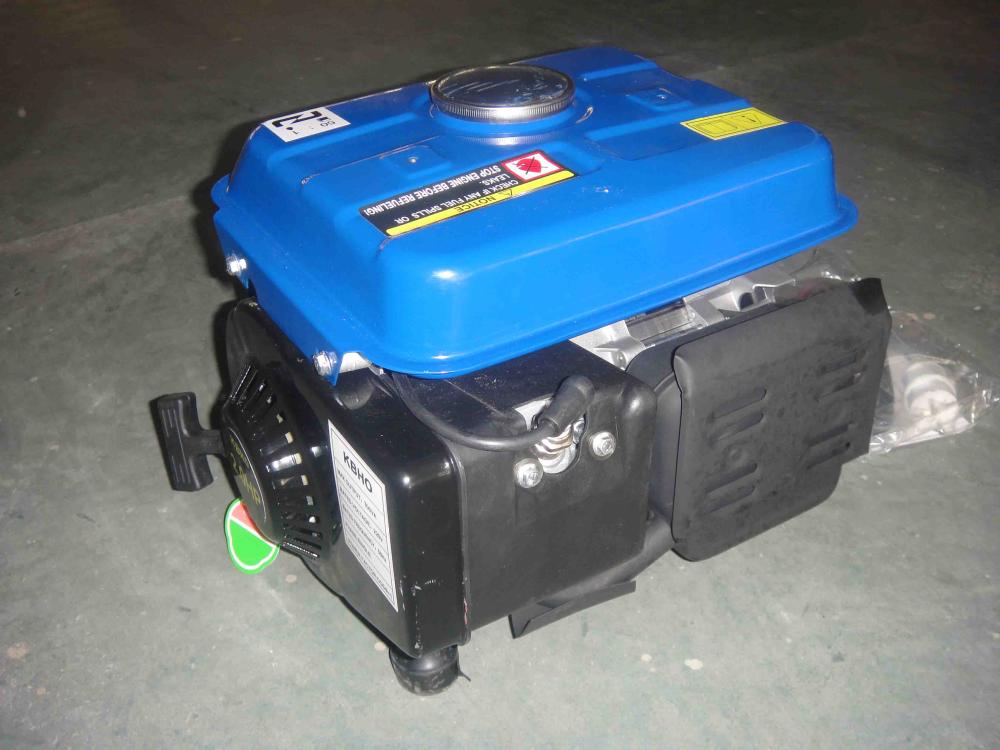

This 650W portable gasoline generator is designed to provide reliable electrical power for both residential and commercial applications. Its compact and durable construction makes it an ideal choice for powering small appliances, tools, and electronic devices in remote locations or during unexpected power outages. Featuring user-friendly controls and essential safety mechanisms like overload protection and low oil shutdown, this unit offers a dependable and efficient energy source.
Performance Metrics
Power Output
800 W
Max AC Output
650 W
Rated AC Output
100 W
DC Output
Run Time Efficiency
| Load Level | Run Time |
|---|---|
| Rated Load | 8.8 hrs |
| 1/2 Load | 13.5 hrs |
Engine Specifications
Engine Details
- Model: GX60
- Displacement: 62.8cc
- Bore x Stroke: 45 x 40mm
- Starting System: Recoil
Electrical Specifications
Electrical Specifications
- AC Voltage: 220V
- AC Current: 2.9A (Rated) / 3.6A (Max)
- DC Output: 12V / 8.3A
- Frequency: 50Hz
Physical Dimensions
Physical Specs
- Dimensions: 385 x 335 x 340 mm
- Fuel Tank Capacity: 4L
- Noise Level: 68 dB(A) at rated load
Safety & Features
- Safety Features
- Overload ProtectionLow Oil ShutdownOil AlertVoltage Regulation
