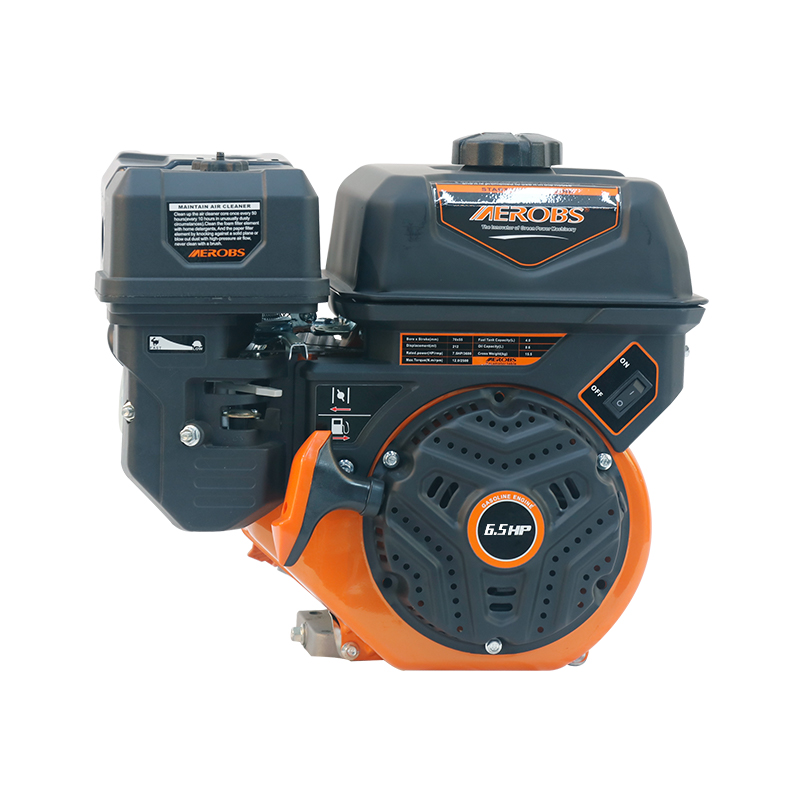

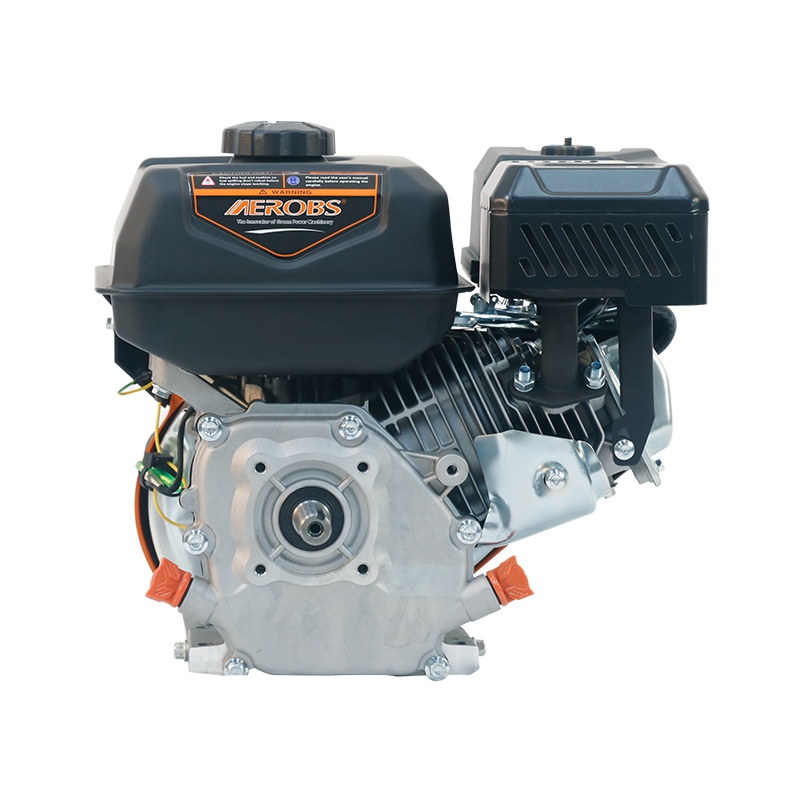

6.5 HP 196cc Horizontal Gasoline Engine
This 6.5 HP 196cc horizontal gasoline engine is designed for home and portable applications. The engine features a robust construction and is suitable for powering a variety of equipment.
Technical Specifications
Overview
Reliable 6.5 HP Horizontal Gasoline Engine
This 196cc horizontal gasoline engine delivers 6.5 horsepower, making it a versatile power source for a wide array of equipment including generators, water pumps, and small machinery. Engineered for durability and efficiency, it features a 4-stroke, air-cooled design that ensures consistent performance in demanding conditions. Its compact horizontal shaft configuration allows for easy integration into various industrial and home applications.
Technical Specifications
Performance Metrics
6.5 HP
Max Power
196 cc
Displacement
3,600 rpm
Rated Speed
Engine Details
| Feature | Specification |
|---|---|
| Stroke | 4 Stroke |
| Cylinder Type | Single Cylinder |
| Cooling System | Air-cooled |
| Ignition Type | T.C.I |
| Bore x Stroke | 68 x 54 mm |
Operation & Maintenance
Operating Specifications
- Starting Mode: Hand/Electric Start
- Fuel Tank Capacity: 4 L
- Oil Capacity: 0.6 L
- Rated Service Power: 6.0 KW
Physical Attributes
Dimensions & Weight
- Dimensions (L*W*H): 405*380*375 mm
- Weight: 17 kg
- Color: Asia black and orange
Compliance & Support
Applicable Industries
Building Material ShopsManufacturing PlantMachinery Repair ShopsFarms
- Warranty Terms
- 1 Year Warranty1 Year Core Components Warranty
