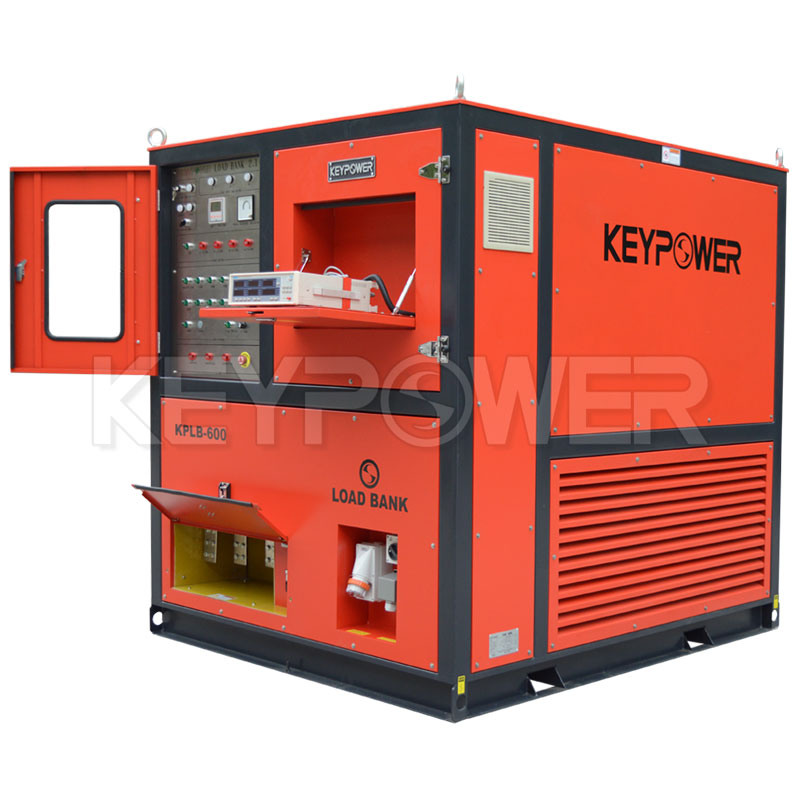

600 kW Resistive Load Bank for Generator Testing
This 600 kW resistive load bank is designed for generator testing and maintenance. It provides a stable and controllable load for accurately simulating real-world operating conditions.
Technical Specifications
Product Overview
Professional Load Testing Solution
This 600 kW resistive load bank is engineered for rigorous testing of generators, UPS systems, and battery banks. It utilizes high-grade stainless steel elements and a forced-air cooling system to deliver stable, reliable performance. With precise load step control and comprehensive safety protections, this unit ensures accurate simulation for critical power system validation.
Performance Specifications
Maximum Capacity
600 kW
Max Power
- Load Characteristics
- ResistivePF = 1.0
- Voltage & Frequency
- 110-480 VAC, 3P4W, 50/60 Hz
- Load Step Resolution
- 10 kW

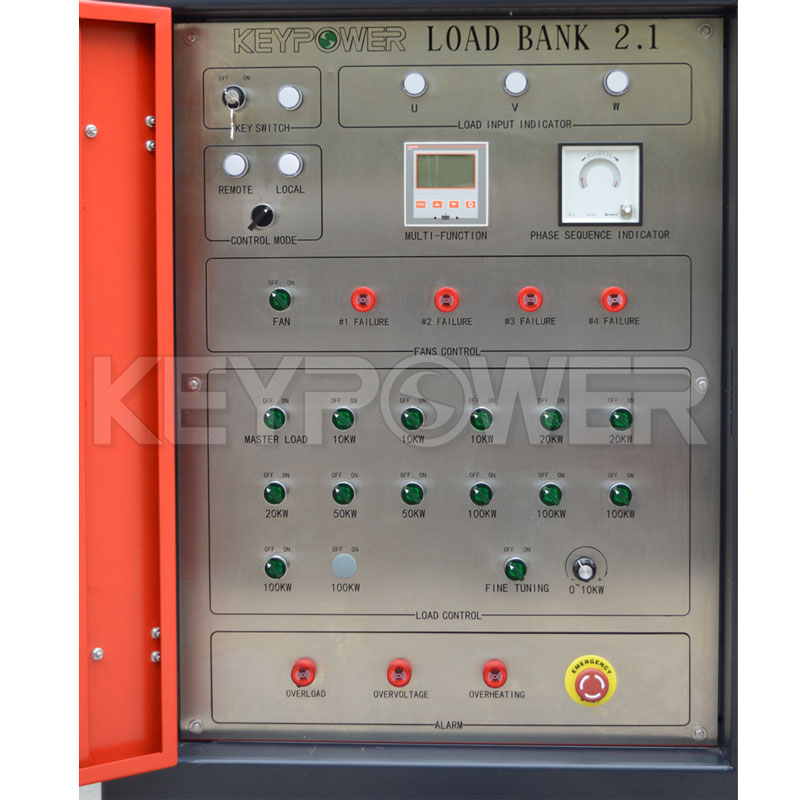

Control & Measurement
Control Modes
- Local manual control
- Remote control (up to 30m)
- Measurement Accuracy Grade
- 0.3
- Load Control Accuracy
- ± 5%
Safety & Environment
Safety Protections
Overheating ProtectionFan Failure ProtectionOverload Protection
Operating Environment
| Parameter | Limit |
|---|---|
| Max Altitude | 3000m |
| Ambient Temp | -10 to +50 °C |
| Humidity | ≤ 80% |
