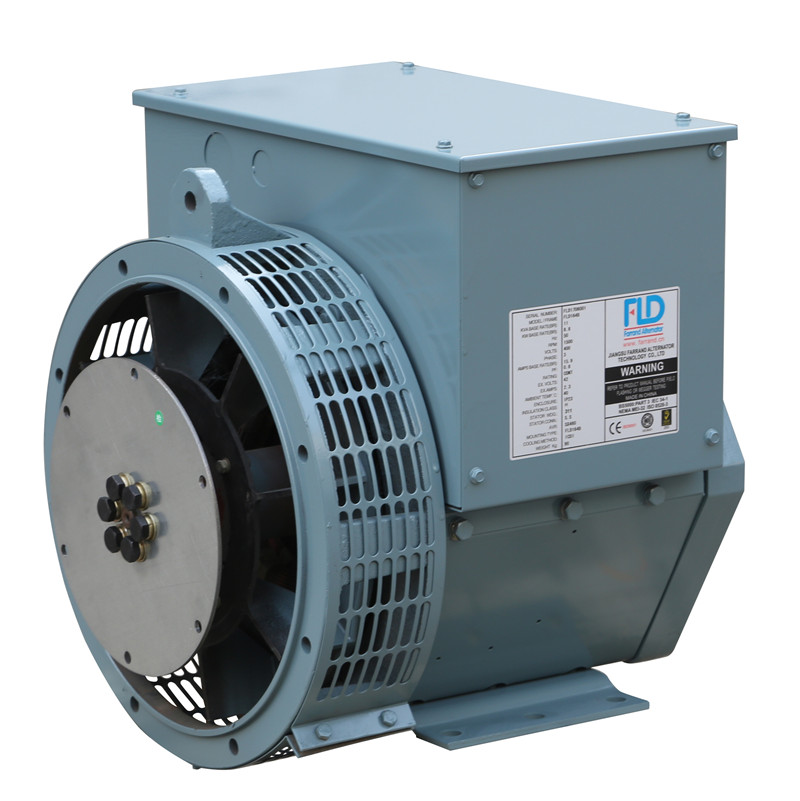

6 kVA to 16 kVA 4-Pole Brushless Alternator
This 4-pole brushless alternator is available in a range of capacities from 6 kVA to 16 kVA. Its brushless design reduces maintenance and ensures reliable power generation.
Technical Specifications
Overview
High-Performance Brushless Alternator
This 4-pole brushless alternator is engineered for robust power generation in both industrial and marine environments. Featuring a versatile 6 kVA to 16 kVA capacity range, it offers reliable performance with a dynamically balanced rotor and advanced insulation class H protection. Its design supports easy integration with existing power grids and simplifies maintenance through a flexible terminal configuration.
Technical Specifications
Power Range
6 kVA
Minimum Capacity
16 kVA
Maximum Capacity
Insulation Class
Class H
Telephone Interference Limits
| Metric | Standard | Limit |
|---|---|---|
| THF | BS EN60034-1 | < 2% |
| TIF | NEMA MG1-22 | < 50 |
- Compliance Standards
- GB755BS5000 Part 3VDE0530NEMA MG1-32IEC-34CSA C22-100AS1359
Design & Features
Key Design Features
- 4-pole brushless design
- Optional PMG for invariable excitation
- 2/3 pitch winding to avoid excessive neutral current
- Dynamically balanced rotor
- Single and double bearing options
- 6/12 leads on terminal for voltage adjustment
- Suitable Applications
- IndustrialMarinePower Grid ParallelBackup Power
