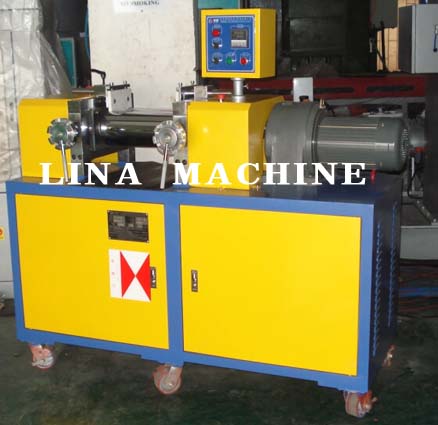

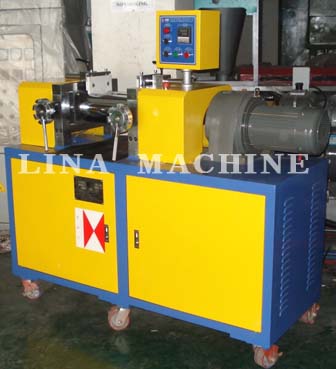

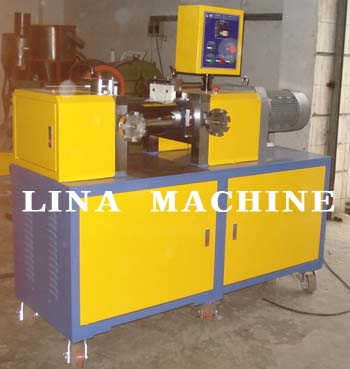

6-Inch Open Mixing Mill for Rubber and Plastics
This 6-inch open mixing mill features special alloy steel rollers with a hard, abrasion-resistant surface. Its motor reducer, equipped with a hard tooth surface single axial output transmission mechanism, ensures large torsion and low noise.
Technical Specifications
Overview
High-Performance Open Mixing Mill
This 6-inch open mixing mill is designed for professional rubber, synthetic rubber, E.V.A., and PVC processing. It provides precise mixing, kneading, and sheeting capabilities, making it an ideal solution for laboratory environments and small-scale industrial production. With robust construction and adjustable temperature controls, it ensures consistent material quality for downstream processing machinery like extruders and calenders.
Technical Specifications
- Roll Diameter
- 160 mm
- Roll Working Length
- 350 mm
- Maximum Roll Space
- 5 mm
- Speed Ratio
- 1.29
- Feeding Capacity
- 1.5 to 3
- Roller Surface Treatment
- Hard chromium platingSuper mirror processing
Power & Performance
- Motor Power
- 5.5/7.5
- Power Supply
- 3∮, AC380V, 20A
- Temperature Control
- Electric heating or cooling water
- Temperature Range
- 250 ℃
Physical Dimensions
- Machine Weight
- 1000 kg
- Overall Dimensions (L*W*H)
- 1650*600*1150
Applications
Suitable Materials
RubberSynthetic RubberE.V.A.PVCChemicals
