6-Cylinder Diesel Engine for Generator Sets
This 6-cylinder diesel engine operates at 1800 RPM and is designed for generator set applications. It features direct injection, a compact structure, and good speed governing.
Technical Specifications
Product Overview
High-Performance 6-Cylinder Diesel Engine

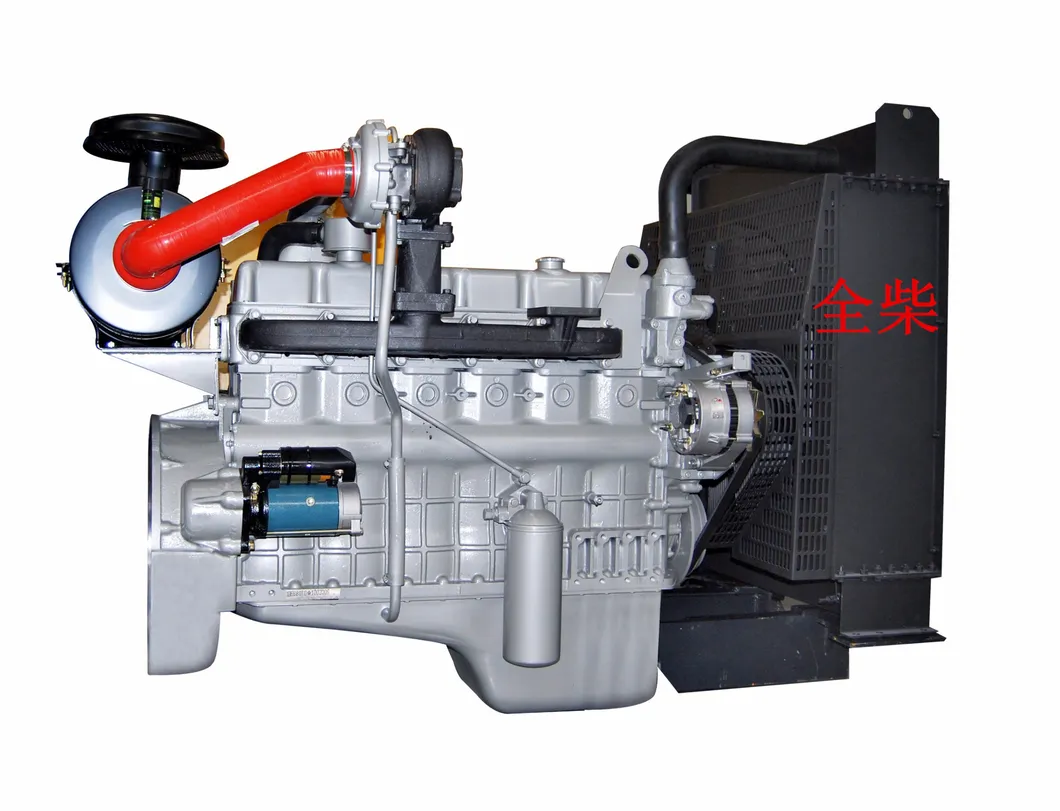

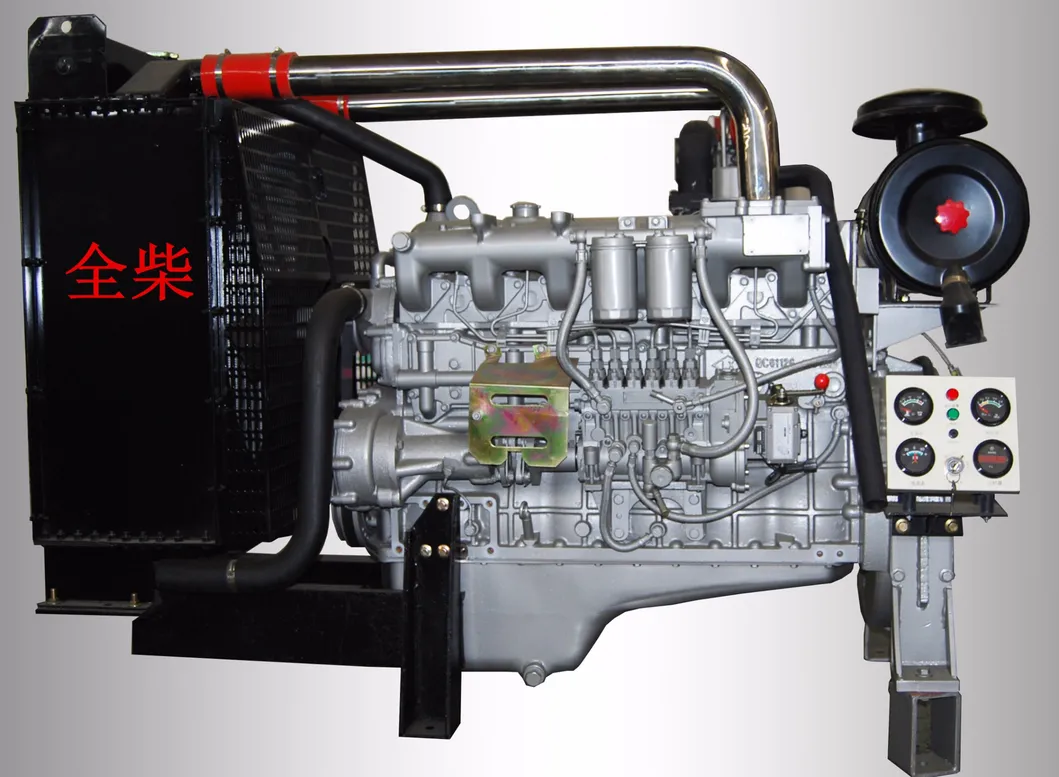

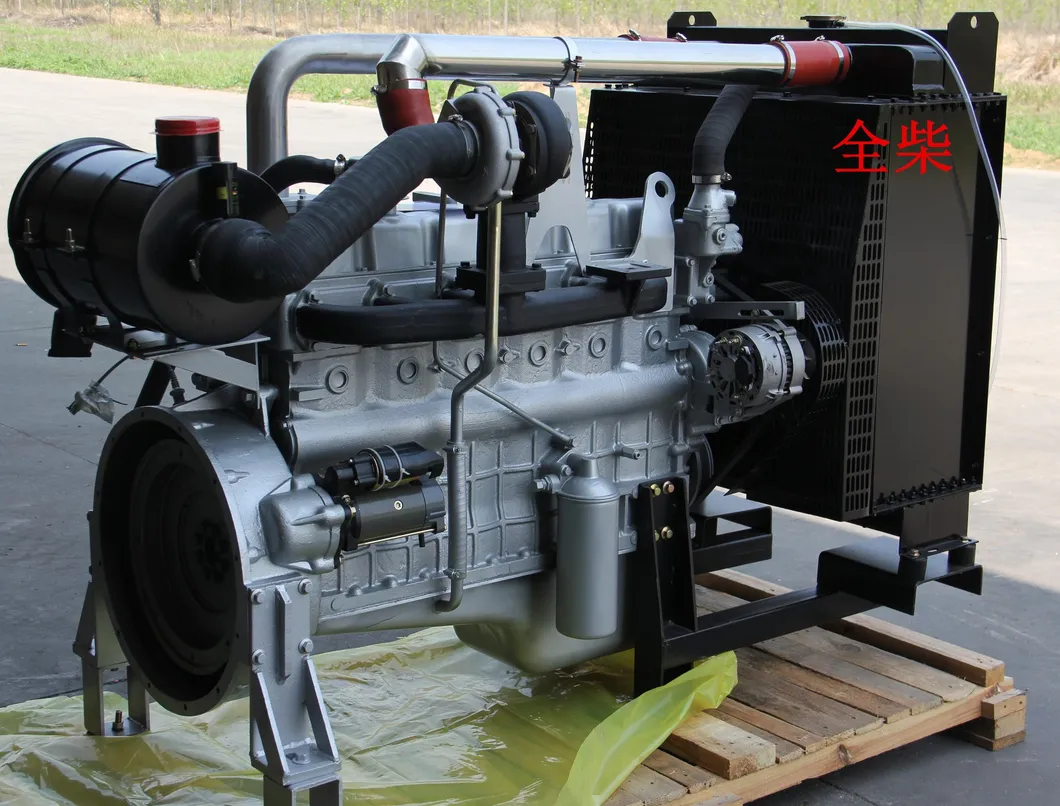

This vertical, in-line 6-cylinder diesel engine is specifically engineered for generator set applications, offering a robust and reliable power source. Featuring a turbocharged and inter-cooled intake system, it delivers high efficiency with low fuel consumption through a direct injection combustion chamber. Its compact structure and light weight ensure easier installation and maintenance for industrial and commercial power solutions.
Core Performance
Key Performance Metrics
180 kW
Standby Power
1,800 RPM
Rated Speed
7.98 L
Displacement
Engine Configuration
- Engine Type
- Vertical, in-line, water-cooled, four-stroke, turbocharged and inter-cooled
- Cylinder Configuration
- 6 Cylinders, 112mm Bore x 135mm Stroke
- Cylinder Liner Type
- Wet
Technical Specifications
- Fuel Consumption Ratio
- 196 g/kW.h
- Smooth Speed Rate
- <=5%
Mechanical Interface
- Flywheel Cover Type
- SAE 2#
- Flywheel Type
- SAE 11.5"
Key Features
Advantages
- Direct injection combustion chamber for easy starting
- Excellent fuel economy and low consumption
- Compact and lightweight design for versatile installation
- High power output with minimal vibration
- Reliable speed regulation
Application
Primary Application
Generator SetsGenset PowerIndustrial PowerCommercial Backup
