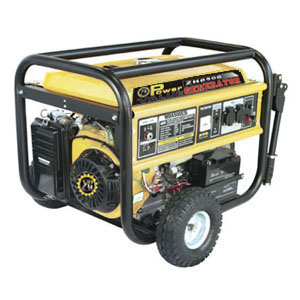

5kW Gasoline Generator with Manual Transfer Switch
This 5kW gasoline generator comes as a prepackaged unit with a prewired manual transfer switch. The OHV engine has a full pressure lubrication system to reduce wear during start up.
Technical Specifications
Overview
Reliable Power Solution
This robust 5kW gasoline generator is engineered for versatility, serving as a dependable power source for both residential backup and commercial job sites. Featuring a powerful 4-stroke air-cooled engine, it delivers stable output with options for both 50Hz and 60Hz frequencies. Designed for durability and ease of use, the unit includes an electric start system, low oil protection, and a large fuel tank to ensure prolonged, safe operation during outages or remote work.
Performance Metrics
Power Output
5.5 kW
Max Power
5 kW
Rated Power
1 cos
Power Factor
Electrical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 230V / 120V |
| Rated Frequency | 50Hz / 60Hz |
| DC Output | 12V 8A |
| Phase | Single Phase |
Engine Specifications
Engine Details
- Model: ZH390
- Type: Single cylinder, 4-stroke, air-cooled, OHV
- Displacement: 389cc
- Compression Ratio: 8.5:1
- Rated Power: 13.0 HP @ 3600 rpm
- Starting System
- Recoil StarterElectric Starter
Operation & Maintenance
Fuel & Lubrication
- Fuel Type: Automotive unleaded gasoline
- Fuel Tank Capacity: 25 L
- Lube Oil: SAE10W30 (above CC grade)
- Low Oil Alarm: Included
- Noise Level
- 74 dB(A)
Physical Dimensions
Physical Specs
| Attribute | Value |
|---|---|
| Dimensions (LxWxH) | 630 x 535 x 635 mm |
| Net Weight | 78.5 kg |
| Gross Weight | 80.5 kg |
